Instrument Panel: Components

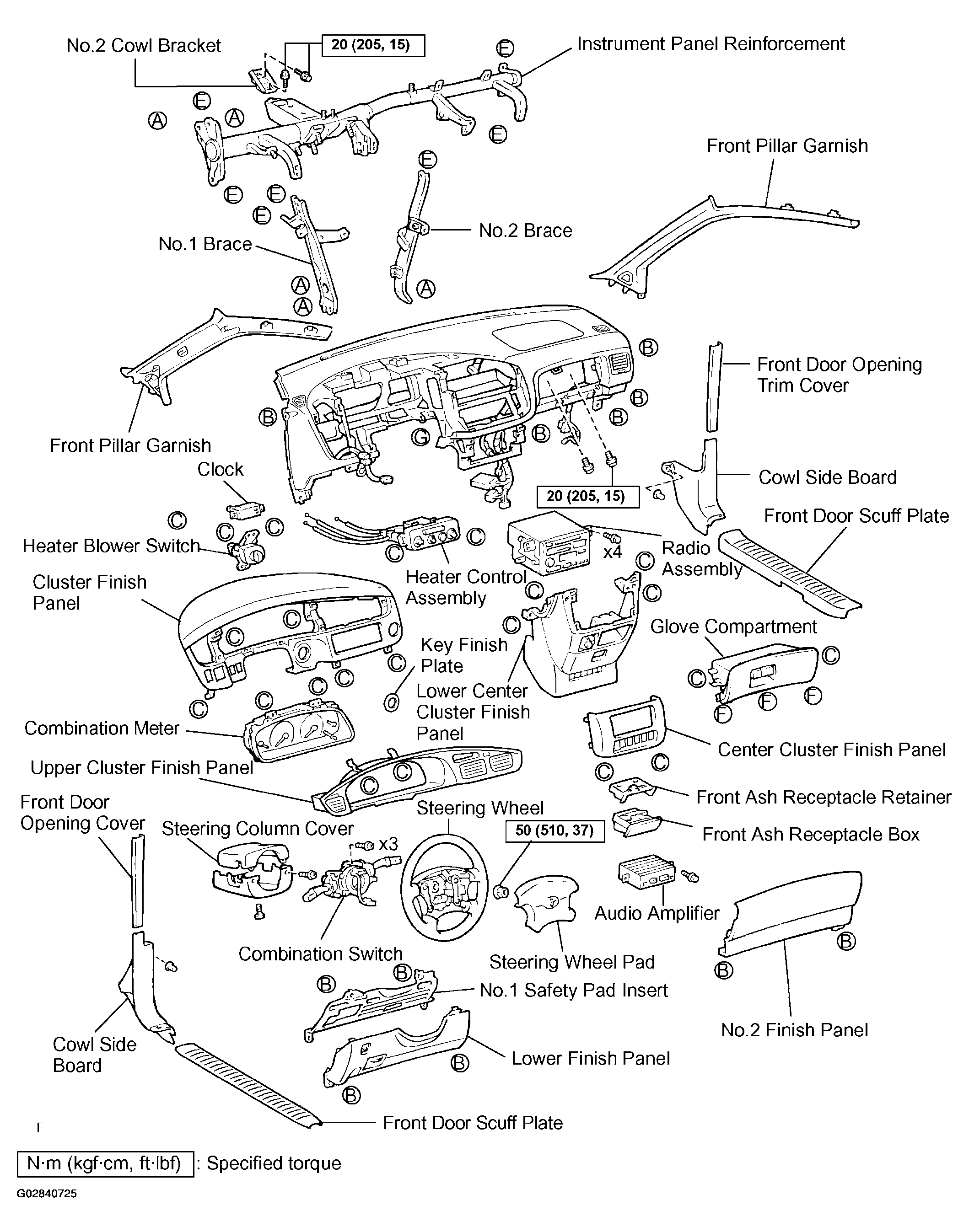

Fig 1: Exploded View Of Instrument Panel Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

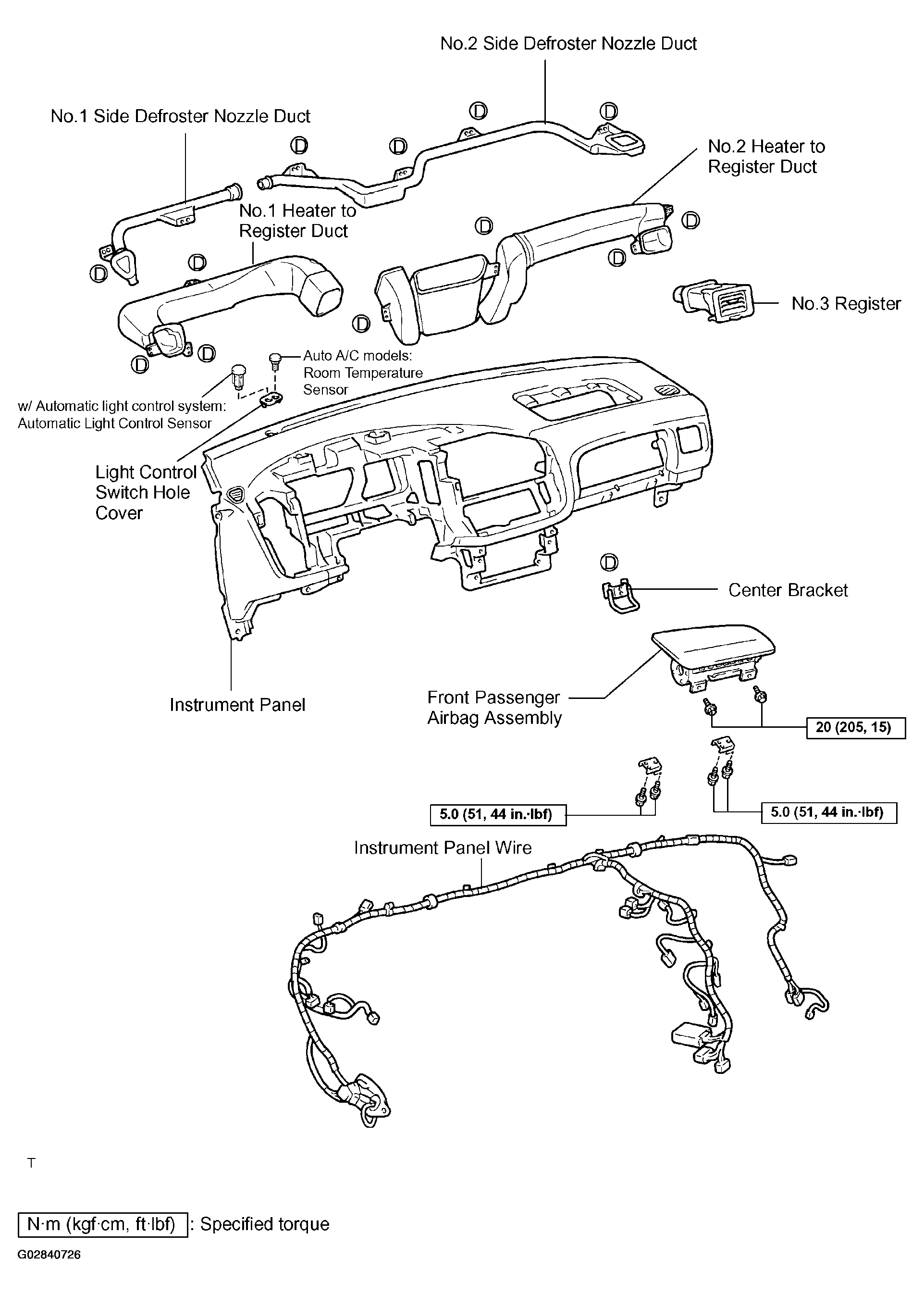

Fig 2: Exploded View Of Instrument Panel Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Screw shapes and sizes are indicated in the table below. The codes ("A" - "G") correspond to those indicated on the previous page.

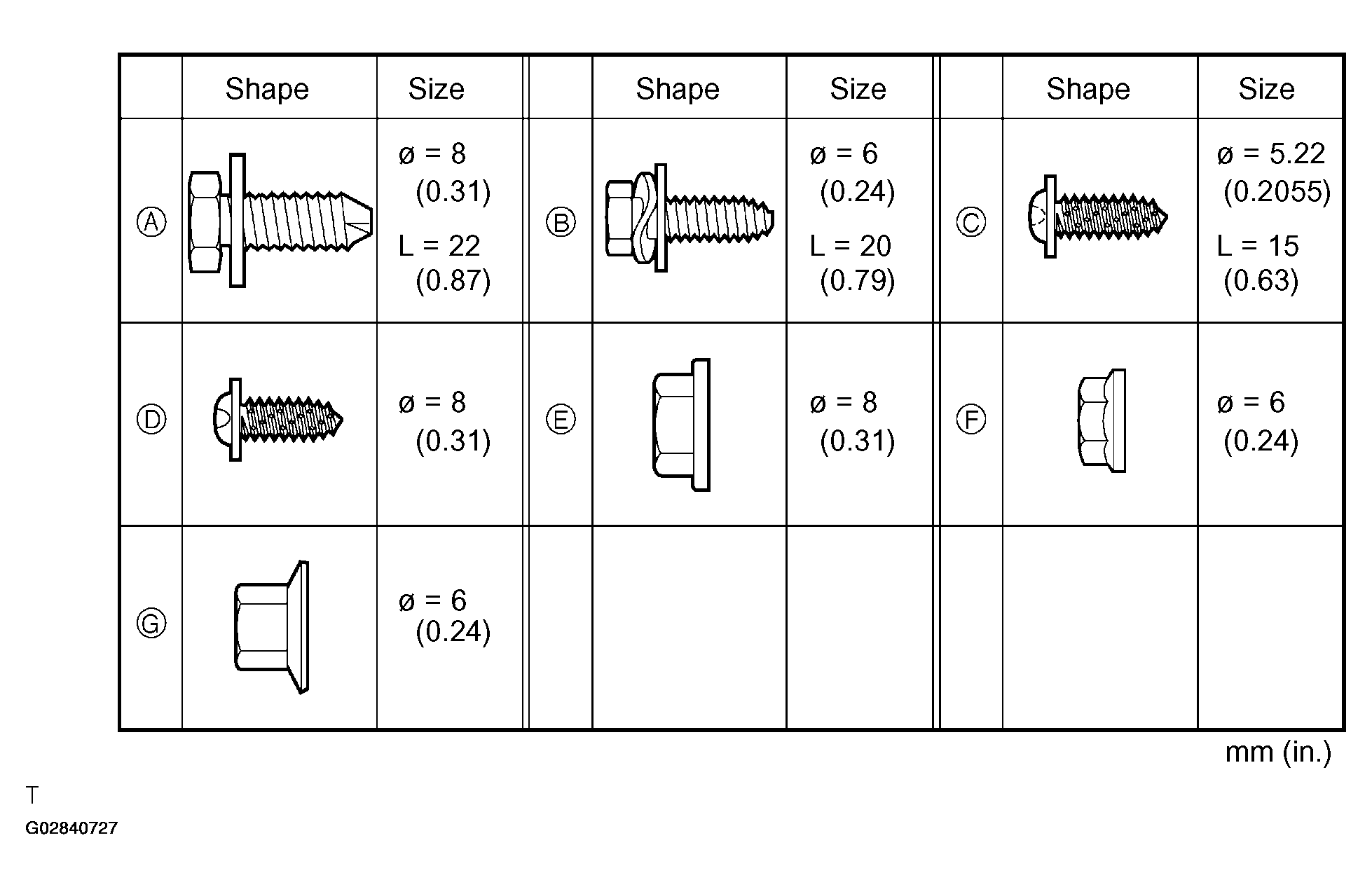

Fig 3: Screw Shape & Size Chart
