Circuit Description

For circuit description, see Fig 1.

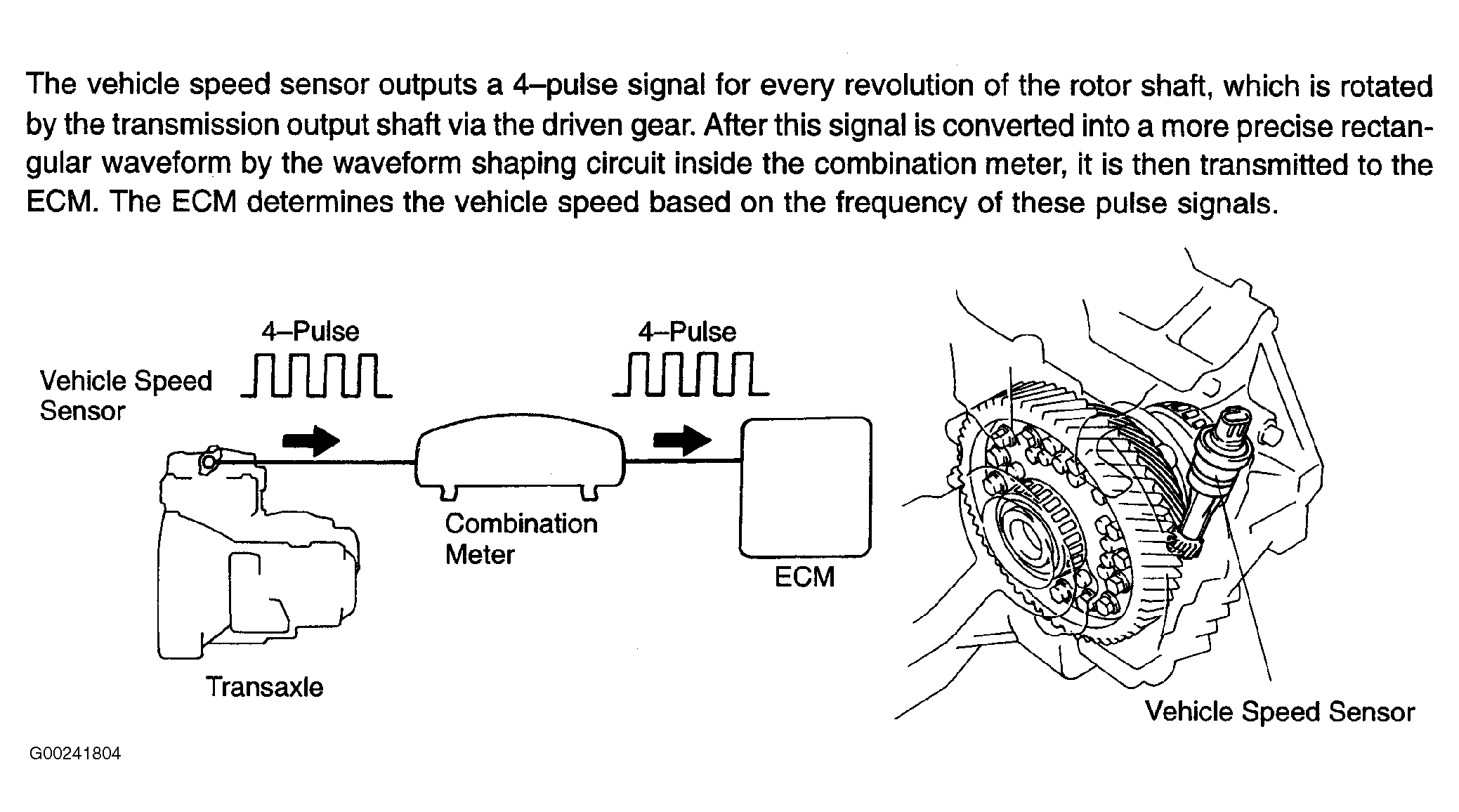

Fig 1: VSS Circuit Description
G00241804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
