Power Door Lock Control System: Inspection

  1. INSPECT DRIVER'S DOOR LOCK CONTROL SWITCH CONTINUITY
    Fig 1: Identifying Driver's Door Lock Control Switch Terminals
    G02840420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    DRIVER'S DOOR LOCK CONTROL SWITCH CONTINUITY REFERENCE

    Switch Position Tester Connection Specified Condition
    LOCK 1 - 10 Continuity
    OFF   No Continuity
    UNLOCK 1 - 18 Continuity

    If continuity is not as specified, replace the switch.

  2. INSPECT PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY
    Fig 2: Identifying Passenger's Door Lock Control Switch Terminals
    G02840421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY

    Switch Position Tester Connection Specified Condition
    LOCK 3 - 6 Continuity
    OFF   No Continuity
    UNLOCK 3 - 5 Continuity

    If continuity is not as specified, replace the switch.

  3. INSPECT FRONT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
    Fig 3: Identifying Front Door Key Lock & Unlock Switch Terminals
    G02840422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FRONT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY REFERENCE

    Switch Position Tester Connection Specified Condition
    LOCK 2- 1 Continuity
    OFF   No Continuity
    UNLOCK 3 - 1 Continuity

    If continuity is not as specified, replace the switch.

  4. INSPECT BACK DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
    Fig 4: Identifying Back Door Key Lock & Unlock Switch Terminals
    G02840423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    BACK DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY REFERENCE

    Switch Position Tester Connection Specified Condition
    LOCK 2- 1 Continuity
    OFF   No Continuity
    UNLOCK 3- 1 Continuity

    If continuity is not as specified, replace the switch.

  5. INSPECT FRONT DOOR UNLOCK DETECTION SWITCH CONTINUITY

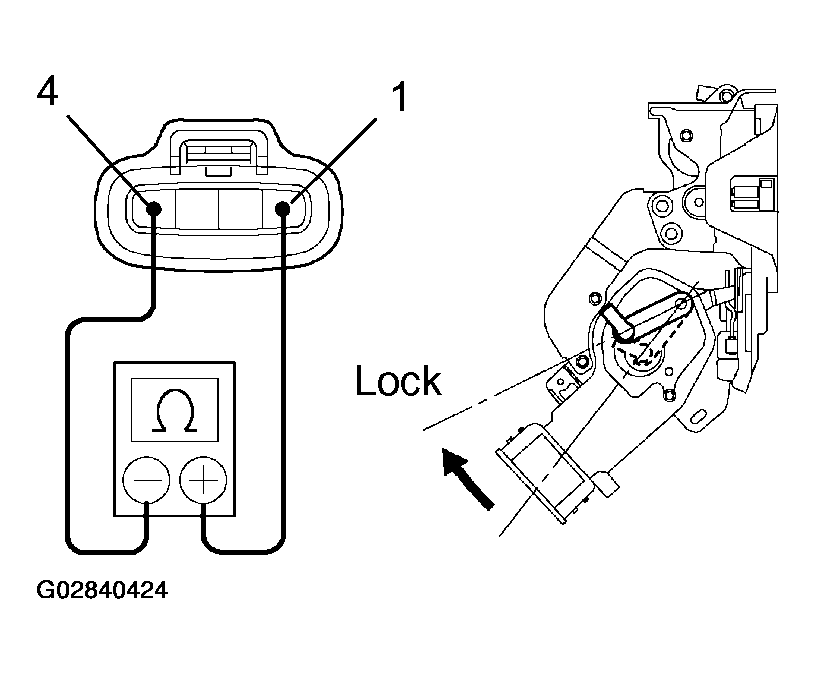

    Fig 5: Inspecting Front Door Unlock Detection Switch Continuity
    G02840424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

    Fig 6: Front Door Unlock Detection Switch Continuity Table
    G02840425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. w/ Theft Deterrent System: INSPECT BACK DOOR UNLOCK DETECTION SWITCH CONTINUITY

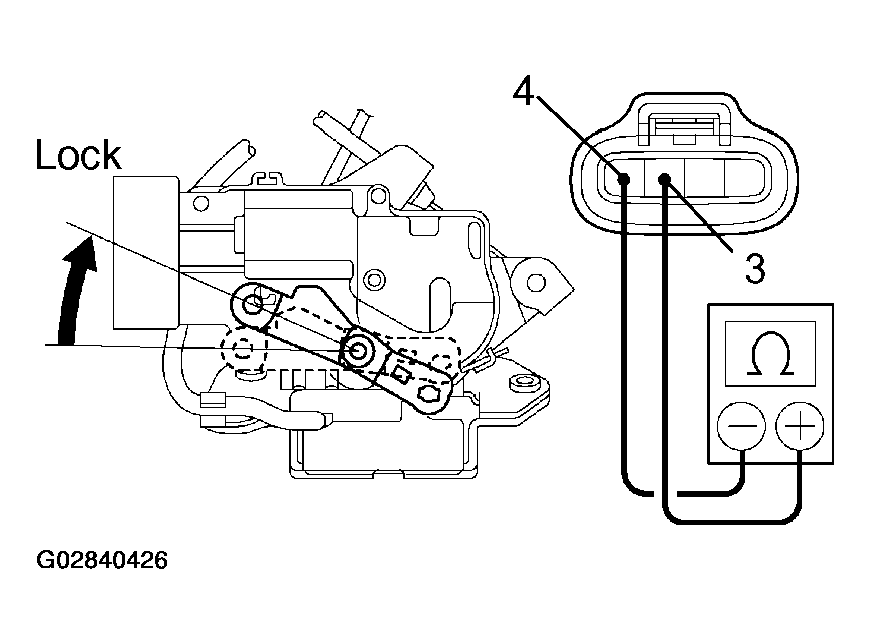

    Fig 7: Inspecting Back Door Unlock Detection Switch Continuity
    G02840426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

    Fig 8: Back Door Unlock Detection Switch Continuity Table
    G02840427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT FRONT DOOR LOCK MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.
      Fig 9: Inspecting Front Door Lock Motor Operation
      G02840428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the door lock link moves to LOCK position.
      Fig 10: Checking That Door Lock Link Moves To Lock Position
      G02840429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If operation is not as specified, replace the door lock assembly.

  8. w/ Theft Deterrent System and LH Side Door: INSPECT SLIDING DOOR LOCK MOTOR OPERATION

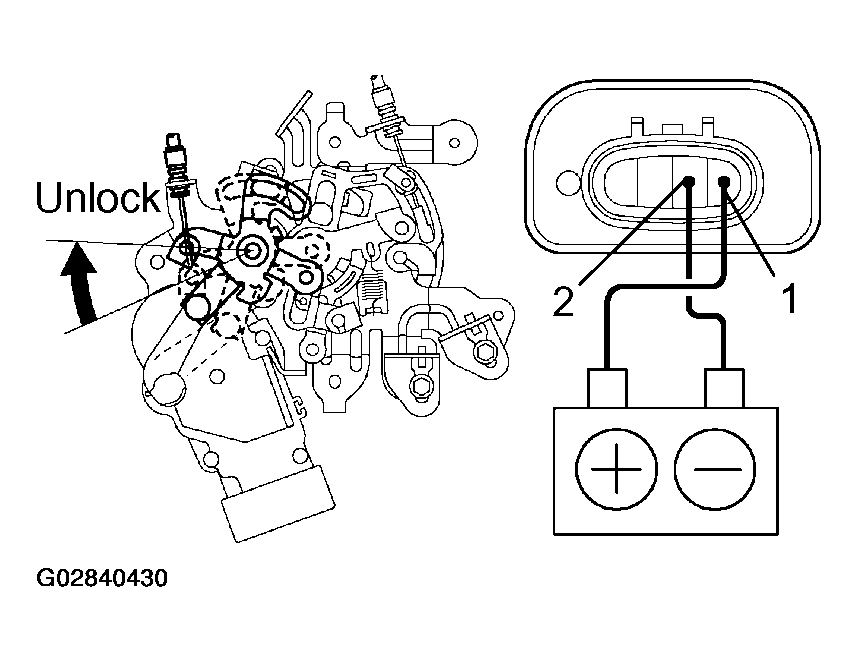

    Fig 11: Inspecting Sliding Door Lock Motor Operation
    G02840430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

      If operation is not as specified, replace the door lock assembly.

      Fig 12: Removing Door Lock Assembly
      G02840431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. w/o Theft Deterrent System and RH Side Door: INSPECT SLIDING DOOR LOCK MOTOR OPERATION

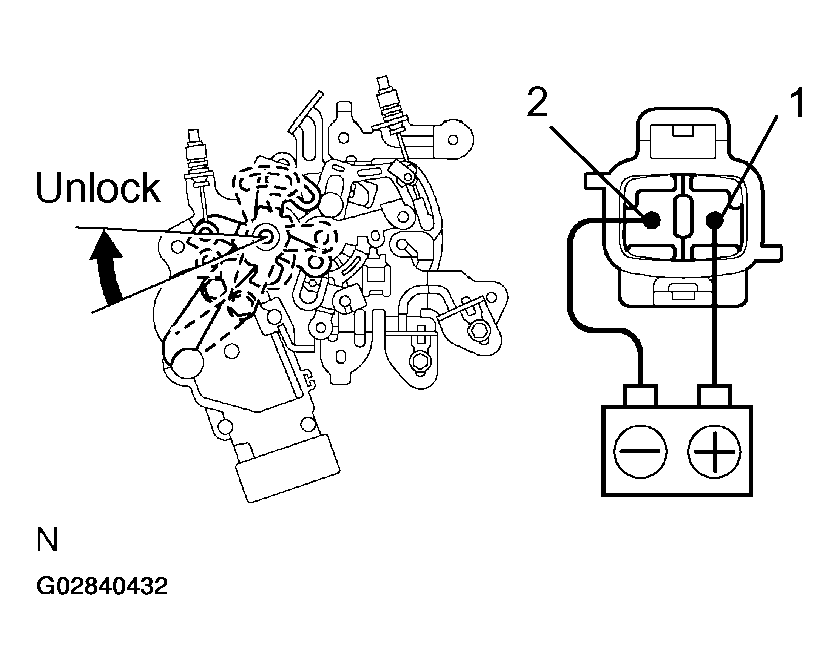

    Fig 13: Inspecting Sliding Door Lock Motor Operation
    G02840432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

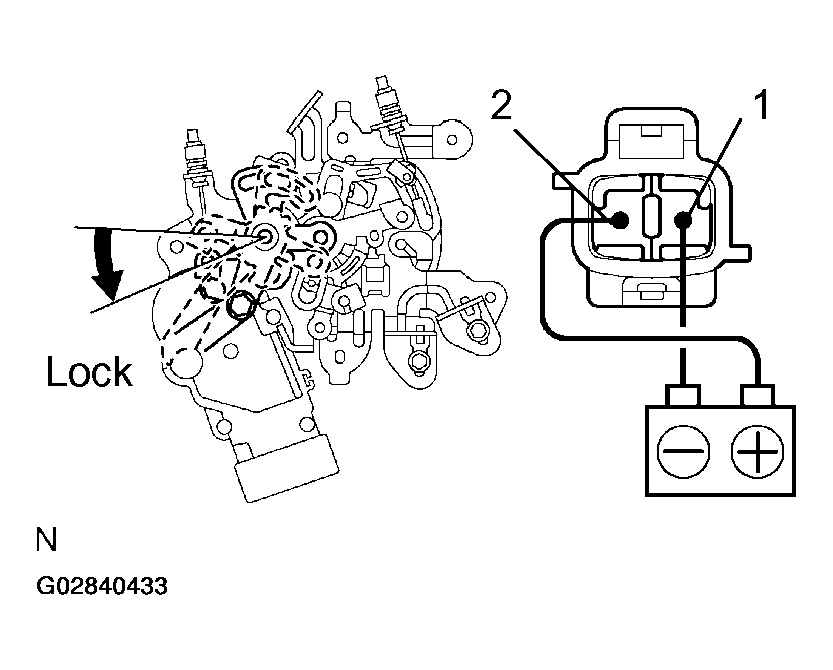

      Fig 14: Checking Door Lock Link Moves To Lock Position
      G02840433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If operation is not as specified, replace the door lock assembly.

  10. w/o Theft Deterrent System: INSPECT BACK DOOR LOCK MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.
      Fig 15: Checking Door Lock Link Moves To Unlock Position
      G02840434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

      If operation is not as specified, replace the door lock assembly.

      Fig 16: Checking Door Lock Link Moves To Lock Position
      G02840435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. w/ Theft Deterrent System: INSPECT BACK DOOR LOCK MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock link moves to UNLOCK position.

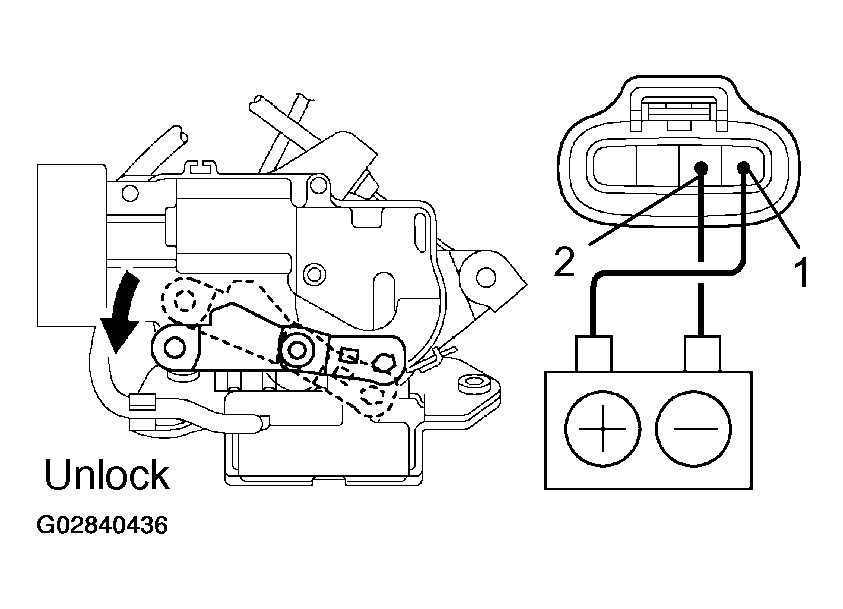

      Fig 17: Inspecting Back Door Lock Motor Operation
      G02840436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

      If operation is not as specified, replace the door lock assembly.

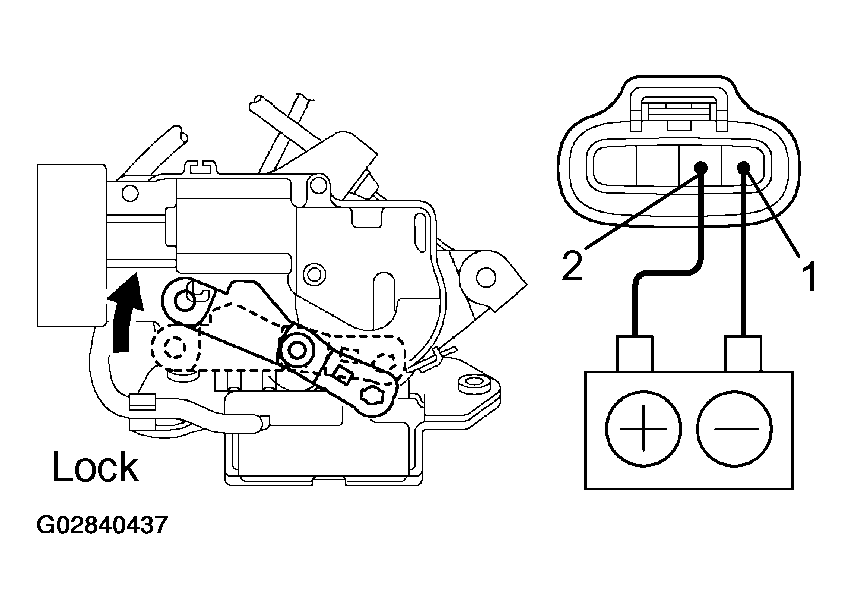

      Fig 18: Checking Door Lock Link Moves To Lock Position
      G02840437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSPECT INTEGRATION RELAY OPERATION
    Fig 19: Inspecting Integration Relay Operation
    G02840438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: When the relay circuit is as specified, inspect the door lock signal.
    1. Connect the positive (+) lead from the voltmeter to terminal 1 and the negative (-) lead to terminal 9.
    2. Set the door lock control switch to UNLOCK and check that the voltage rises from 0 V to battery positive voltage for approximately 0.2 seconds.
    3. Reverse the polarity of the voltmeter leads.
    4. Fig 20: Reversing Polarity Of Voltmeter Leads
      G02840439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Set the door lock control switch to LOCK and check that the voltage rises from 0 V to battery positive voltage for approximately 0.2 seconds.

      If operation is not as specified, replace the relay.
