Power Seat Control System
›
Location
Power Seat Control System: Location

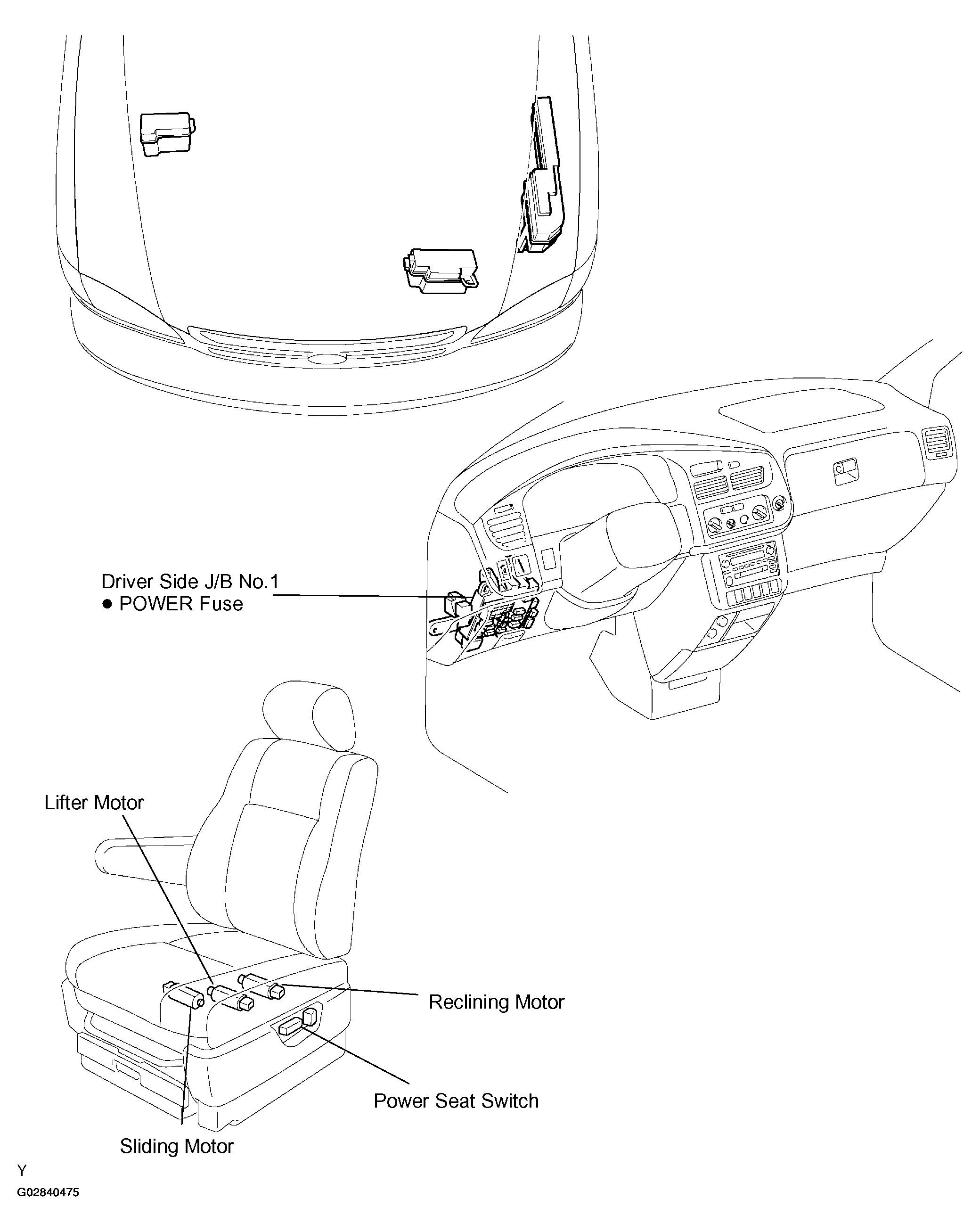

Fig 1: Identifying Power Seat Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
