Combination Meter: Inspection

  1. INSPECT SPEEDOMETER ON-VEHICLE

    Using a speedometer tester, inspect the speedometer for allowable indication error and check the operation of the odometer.

    NOTE: Tire wear and tire over or under inflation will increase the indication error. If error is excessive, replace the speedometer.
    ALLOWABLE RANGE

    USA (MPH) CANADA (KM/H)
    Standard Indication: Allowable Range Standard Indication: Allowable Range
    20: 18 - 24 20: 17 - 24
    40: 38 - 44 40: 38 - 46
    60: 56 - 66 60: 57.5 - 67
    80: 78 - 88 80: 77 - 88
    100: 98 - 110 100: 96 - 109
    120: 118 - 132 120: 115 - 130
      140: 134 - 151.5
      160: 153 - 173
  2. w/ Tachometer: INSPECT TACHOMETER ON-VEHICLE
    1. Connect a tune-up test tachometer, and start the engine.
      NOTE:
      • Reversing the connection of the tachometer will damage the transistors and diodes inside.
      • When removing or installing the tachometer, be careful not to drop or subject it to heavy shocks.
    2. Compare the tester and tachometer indications.
    SPEEDOMETER CHECK

    Standard Indication Allowable Range
    700 630 - 770
    1,000 900 - 1,100
    2,000 1,850 - 2,150
    3,000 2,800 - 3,200
    4,000 3,800 - 4,200
    5,000 4,800 - 5,200
    6,000 5,750 - 6,250
    7,000 6,700 - 7,300
  3. INSPECT FUEL RECEIVER GAUGE OPERATION
    1. Disconnect the connector from the sender gauge.
      2. Fig 1: Disconnecting Connector From Sender Gauge
      G02840354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the ignition switch ON, check that the receiver gauge needle indicates EMPTY.
    3. Connect terminals 1 and 2 on the wire harness side connector through a 3.4-W test bulb.
      4. Fig 2: Connecting Terminals 1 & 2 On Wire Harness Side Connector Through A Test Bulb
      G02840355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the ignition switch ON, check that the bulb lights up and the receiver gauge needle moves towards the full side.
    NOTE: Because of the silicon oil in the gauge, it will take a short time for needle to stabilize.

    If operation is not as specified, inspect the receiver gauge resistance.

  4. INSPECT FUEL RECEIVER GAUGE RESISTANCE

    Measure the resistance between terminals.

    Fig 3: Inspecting Fuel Receiver Gauge Resistance
    G02840356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

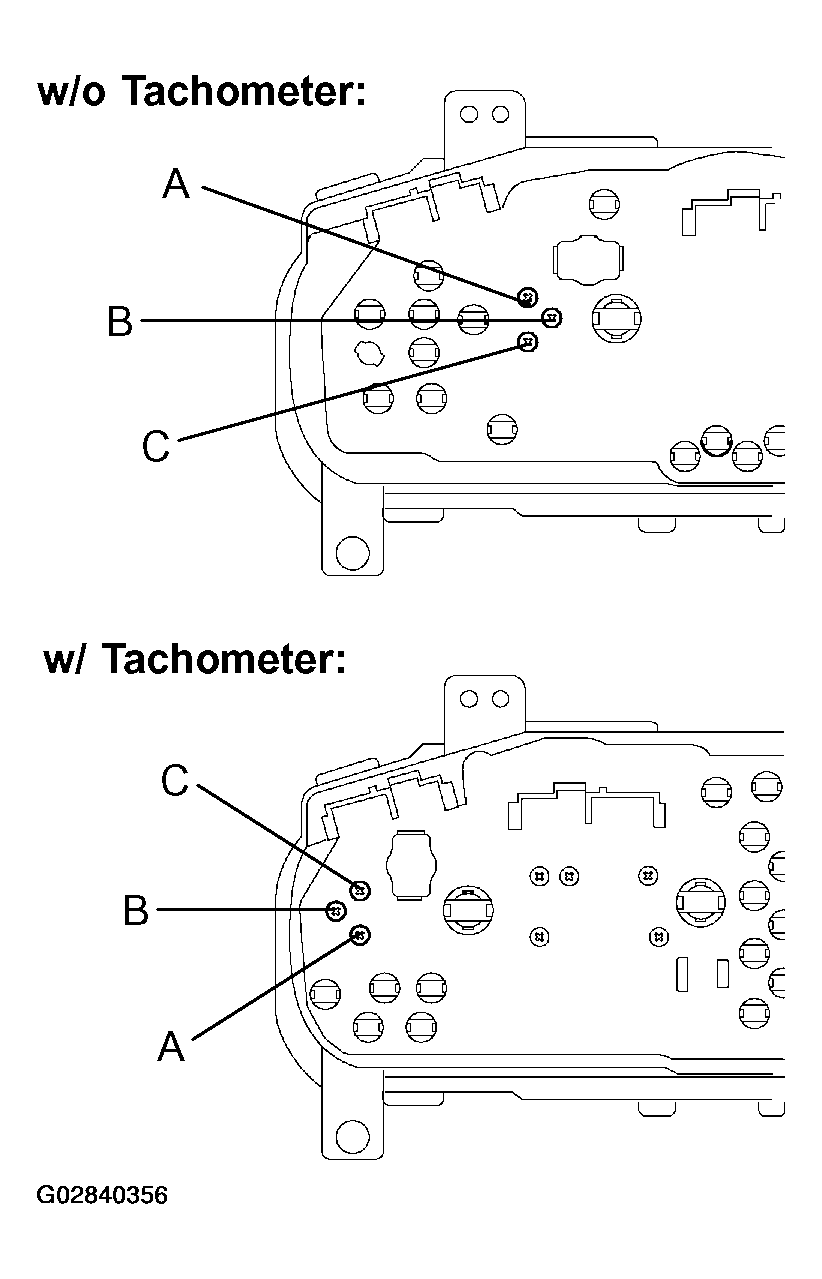

    FUEL RECEIVER GAUGE RESISTANCE REFERENCE

    Tester Connection Resistance (Ω)
    A - B Approx. 261.5
    A - C Approx. 107.2
    B - C Approx. 154.3

    If resistance value is not as specified, replace the receiver gauge.

  5. INSPECT FUEL SENDER GAUGE RESISTANCE

    Measure the resistance between terminals 2 and 3 for each float position.

    Fig 4: Inspecting Sender Gauge Resistance
    G02840357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FUEL SENDER GAUGE RESISTANCE REFERENCE

    Float Position mm (in.) Resistance (Ω)
    F: Approx. 80.3(3.161) Approx. 3.0
    1/2: Approx. 23.0 (0.906) Approx. 31.5
    E: Approx. 36.0(1.417) Approx. 110.0

    If resistance value is not as specified, replace the sender gauge.

  6. INSPECT FUEL LEVEL WARNING LIGHT
    Fig 5: Inspecting Fuel Level Warning Light
    G02840358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector from the sender gauge.
    2. Connect terminals 1 and 3 on the wire harness side connector.
    3. Turn the ignition switch ON, check that the warning light lights up.

    If the warning light does not light up, test the bulb or inspect wire harness.

  7. INSPECT FUEL LEVEL WARNING SWITCH
    Fig 6: Inspecting Fuel Level Warning Switch
    G02840359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply battery positive voltage between terminals 1 and 3 through a 3.4-W test bulb, check that the bulb lights up.
      NOTE: It takes a short time for the bulb to light up.
    2. Submerge the switch in fuel, check that the bulb goes out. If operation is not as specified, replace the sender gauge.
      Fig 7: Submerging Switch In Fuel
      G02840360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSPECT ENGINE COOLANT TEMPERATURE RECEIVER GAUGE OPERATION
    Fig 8: Inspecting Engine Coolant Temperature Receiver Gauge Operation
    G02840361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector from the sender gauge.
    2. Turn the ignition switch ON and check that the receiver gauge needle indicates COOL.
    3. Ground terminal on the wire harness side connector through a 3.4-W test bulb.
      4. Fig 9: Identifying Ground Terminal On Wire Harness Side Connector
      G02840362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the ignition switch ON, and check that the bulb lights up and the receiver gauge needle moves to the hot side.

    If operation is as specified, replace the sender gauge. Then recheck the system.

    If operation is not as specified, measure the receiver gauge resistance.

  9. INSPECT ENGINE COOLANT TEMPERATURE RECEIVER GAUGE RESISTANCE

    Measure the resistance between terminals.

    Fig 10: Inspecting Engine Coolant Temperature Receiver Gauge Resistance
    G02840363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

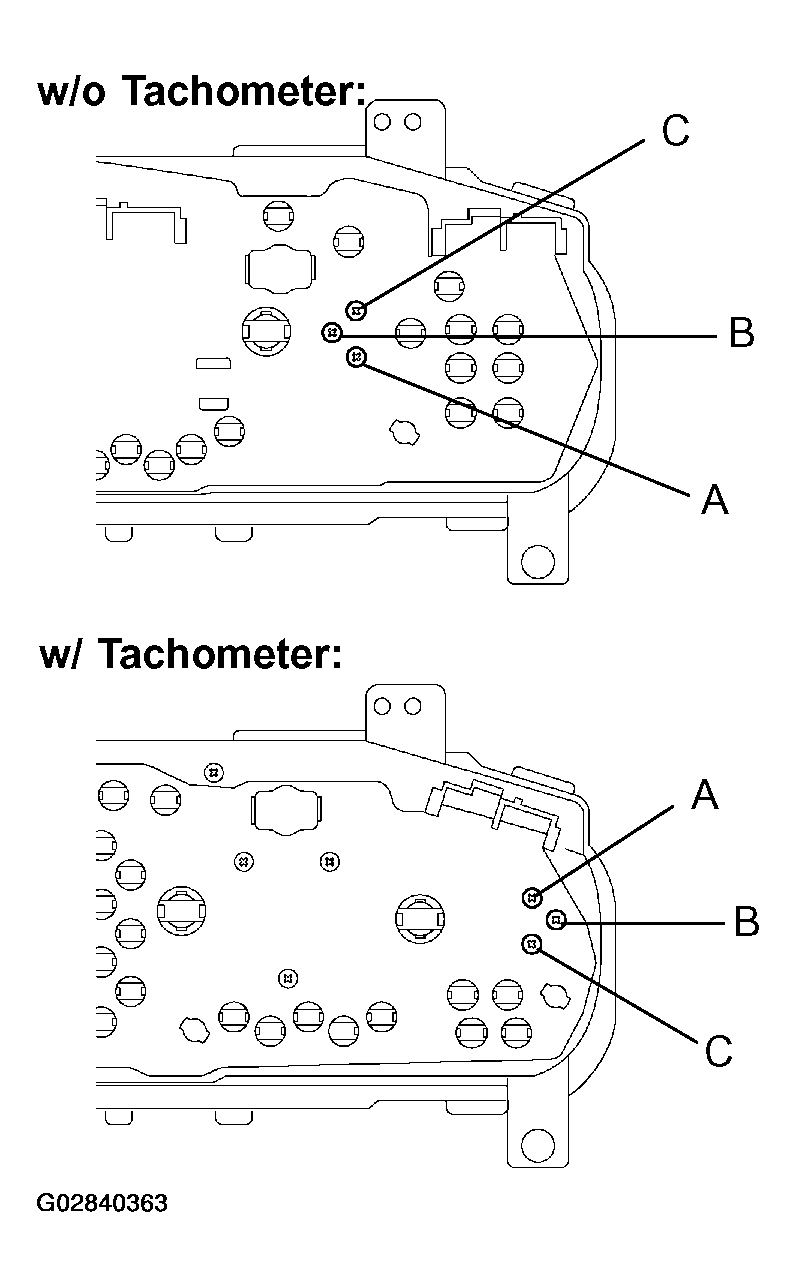

    ENGINE COOLANT TEMPERATURE RECEIVER GAUGE RESISTANCE REFERENCE

    Tester Connection Resistance (Ω)
    A - B Approx. 175.7
    A - C Approx. 54.0
    B - C Approx. 229.7
    NOTE: Connect the test leads so that the current from the ohmmeter can flow according to the above order.

    This circuit includes the diode.

    If resistance value is not as specified, replace the receiver gauge.

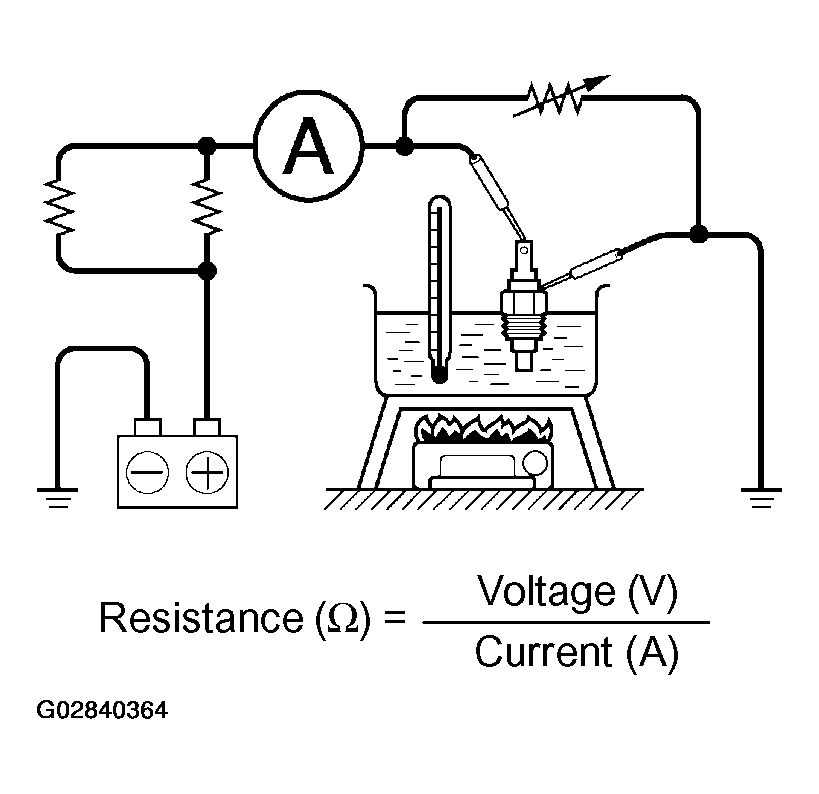

  10. INSPECT ENGINE COOLANT TEMPERATURE SENDER GAUGE RESISTANCE

    Connect the wire harness as shown in the illustration, and enter the value in the left formula. Check the resistance conforms to the values in the table below.

    Fig 11: Inspecting Engine Coolant Temperature Sender Gauge Resistance
    G02840364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE COOLANT TEMPERATURE SENDER GAUGE RESISTANCE REFERENCE

    Temperature °C (°F) Resistance (Ω)
    50 (122.0) 160 - 240
    120 (248.0) 17.1 - 21.2

    If resistance value is not as specified, replace the engine coolant temperature sender gauge.

  11. INSPECT LOW OIL PRESSURE WARNING LIGHT
    Fig 12: Inspecting Low Oil Pressure Warning Light
    G02840365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector from the warning switch and ground terminal on the wire harness side connector.
    2. Turn the ignition switch ON and check that the warning light lights up.

    If the warning light does not light up, test the bulb.

  12. INSPECT LOW OIL PRESSURE SWITCH
    Fig 13: Inspecting Low Oil Pressure Switch
    G02840366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Disconnect the connector from the switch.
    • Check that continuity exists between terminal and ground with the engine stopped.
    • Check that no continuity exists between terminal and ground with the engine running.
    NOTE: Oil pressure should be over 24.5 kPa (0.25 kgf.cm2> , 3.55 psi).

    If operation is not as specified, replace the switch.

  13. INSPECT BRAKE SYSTEM WARNING LIGHT
    Fig 14: Inspecting Brake System Warning Light
    G02840367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector from the brake fluid warning switch.
    2. Release the parking brake pedal.
    3. Connect the terminals on the wire harness side of the level warning switch connector.
    4. Start the engine, check that the warning light lights up. If the waning light does not light up, test the bulb or wire harness.
  14. INSPECT BRAKE FLUID LEVEL WARNING SWITCH
    Fig 15: Inspecting Brake Fluid Level Warning Switch
    G02840368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the reservoir tank cap and strainer.
    2. Disconnect the connector.
    3. Check that no continuity exists between the terminals with the switch OFF (float up).
    4. Use siphon, etc. to take fluid out of the reservoir tank.
    5. Check that continuity exists between the terminals with the switch ON (float down).
    6. Pour the fluid back in the reservoir tank.

    If operation is not as specified, replace the switch.

  15. INSPECT PARKING BRAKE SWITCH CONTINUITY
    Fig 16: Inspecting Parking Brake Switch Continuity
    G02840369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check that continuity exists between terminals with the switch ON (switch pin released).
    2. Check that no continuity exists between terminals with the switch OF (switch pin pushed in).

    If operation is not as specified, replace the switch.

  16. INSPECT WASHER LEVEL WARNING LIGHT
    Fig 17: Inspecting Washer Level Warning Lights
    G02840370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connectors from the level warning switch and parking brake switch.
    2. Connect terminals on the wire harness side connector of the level warning switch connector.
    3. Remove the GAUGE fuse and turn the ignition switch ON, and check that the waning light comes on.

    If the warning light does not light up, test the bulb.

  17. INSPECT WASHER LEVEL WARNING SWITCH
    Fig 18: Inspecting Washer Level Warning Switch
    G02840371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check that no continuity exists between terminals with the switch OFF (float up).
    2. Check that continuity exists between terminals with the switch ON (float down).

    If operation is not as specified, replace the switch.

  18. INSPECT OPEN DOOR WARNING LIGHT
    Fig 19: Inspecting Open Door Warning Light
    G02840372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Disconnect the connector from the door courtesy switch and ground terminal 1 on the wire harness side, and check that the warning light lights up.

    If the warning light does not light up, inspect the bulb or wire harness.

  19. INSPECT SEAT BELT WARNING LIGHT
    Fig 20: Inspecting Seat Belt Warning Light
    G02840373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the integration relay from the instrument panel junction block.
    2. Ground terminal 2 on the integration relay with the connectors still connected.
    3. Turn the ignition switch ON and check that the warning light lights up.

    If the warning light does not light up, inspect the bulb or wire harness.

  20. INSPECT BUCKLE SWITCH CONTINUITY
    Fig 21: Inspecting Buckle Switch Continuity
    G02840374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check that continuity exists between terminals on the switch side connector with the switch ON (belt unfastened).
    2. Check that no continuity exists between terminals on the switch side connector with the switch OFF (belt fastened).

    If operation is not as specified, replace the seat belt inner.

  21. INSECT INTEGRATION RELAY SEAT BELT WARNING SYSTEM OPERATION
    Fig 22: Inspecting Integration Relay Seat Belt Warning System Operation
    G02840375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the positive (+) lead from the battery to terminals 1 and 7.
    2. Connect the terminal 7 to terminal 9 through the 3.4-W test bulb.
    3. Connect the negative (-) lead from the battery to terminal 10.
    4. Check that the bulb flushes and the buzzer sounds for 4 - 8 seconds.
    5. Return to step ( a) and operate the buzzer again.
    6. Connect the negative (-) lead from the battery to terminal 8.
      7. Fig 23: Connecting Negative (-) Lead From Battery To Terminal 8
      G02840376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Check that the buzzer stops sounding.
    NOTE: Check the buzzer within a period of 4 to 8 seconds. If operation is not as specified, replace the relay.
  22. INSPECT LIGHT CONTROL RHEOSTAT
    Fig 24: Inspecting Light Control Rheostat
    G02840377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

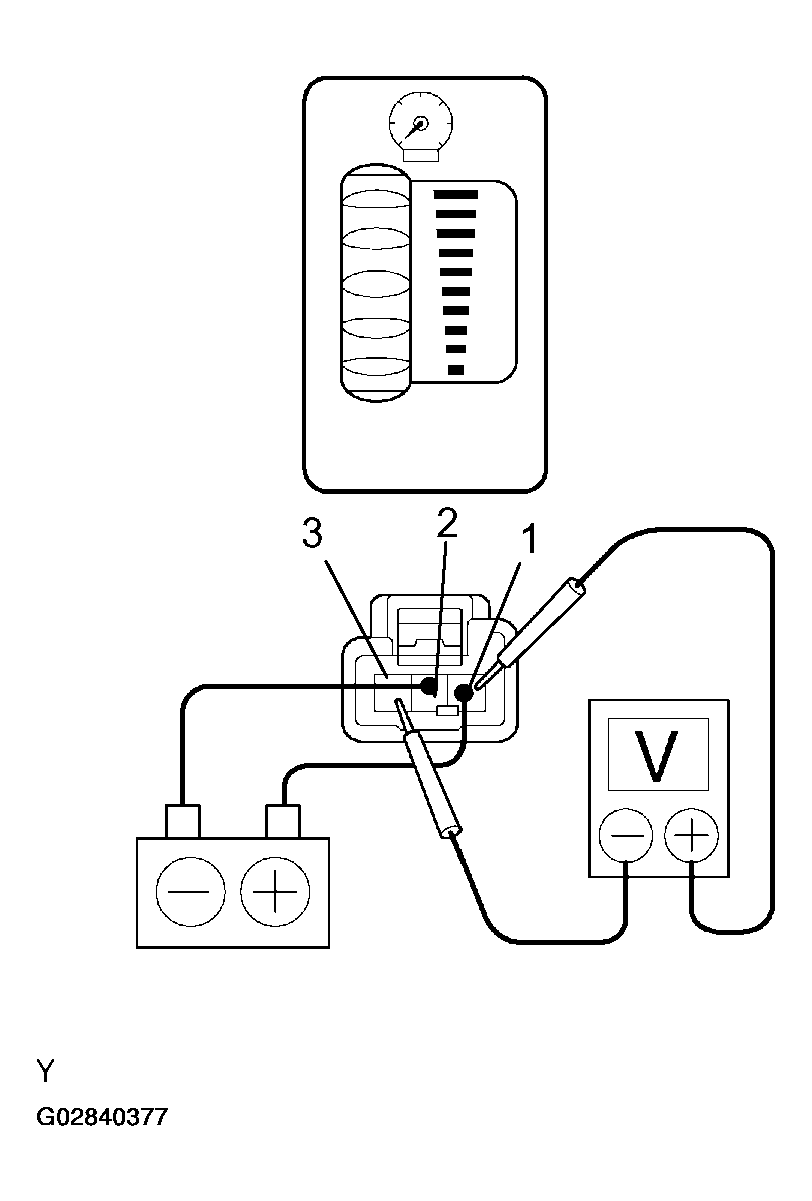

    1. Connect the positive (+) lead from the battery to terminal 1 and negative lead (-) to terminal 2.
    2. Connect the positive (+) lead from the voltmeter to terminal 1 and negative lead to terminal 3.
    3. Turn the rheostat knob and check that the voltage changes.

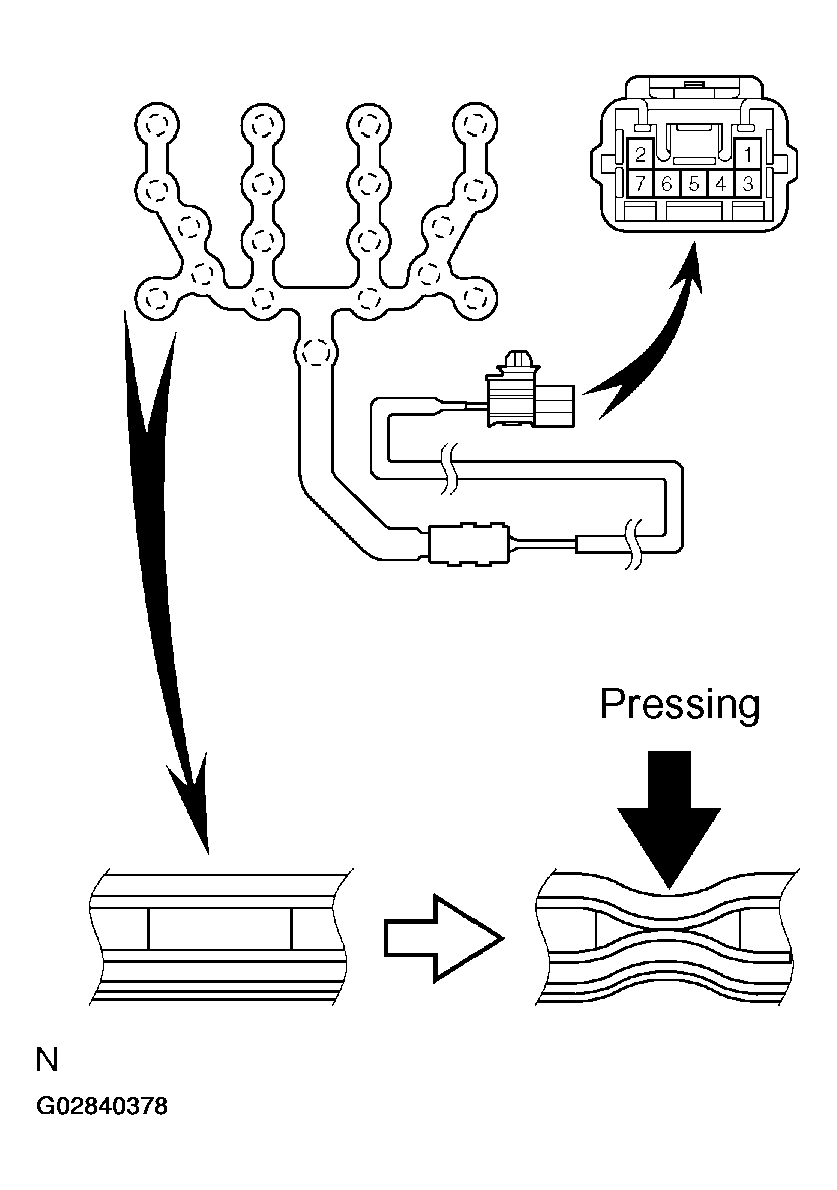

  23. Passenger Seat Only: INSPECT SEAT BELT WARNING OCCUPANT DETECTION SENSOR CONTINUITY
    Fig 25: Inspecting Seat Belt Warning Occupant Detection Sensor Continuity
    G02840378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Check that continuity exists between the terminals 1 and 2 when pressing the sensing part.

    If operation is not as specified, replace the sensor.
