Body Electrical Systems - Troubleshooting
›
Problem Symptoms Table
›
Power Door Lock Control System
Power Door Lock Control System

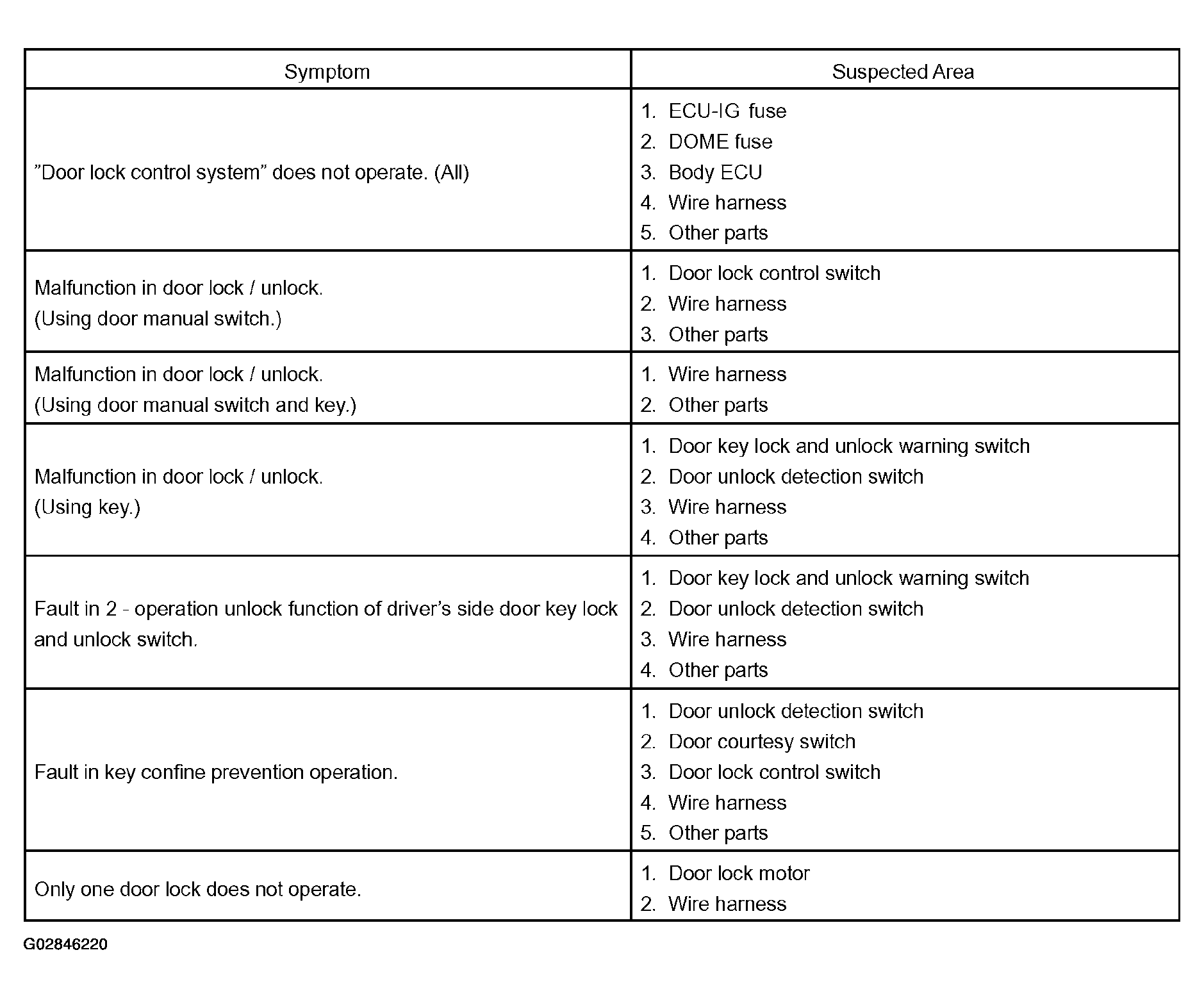

Fig 1: Power Door Lock Control System Symptoms Chart
