Power Door Lock Control System: Inspection

Master switch (2 door):

INSPECT DRIVER'S DOOR LOCK CONTROL SWITCH CONTINUITY

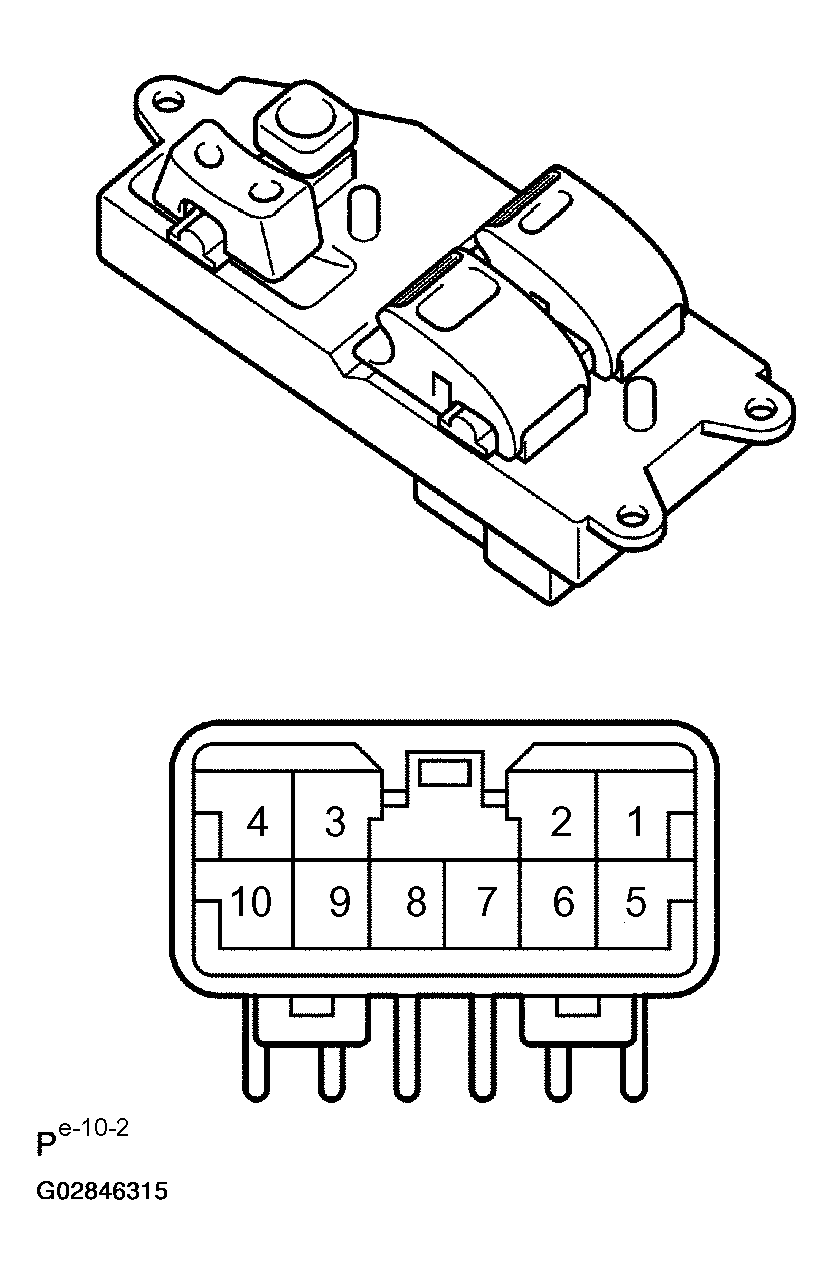

Fig 1: View Of Driver's Door Lock Master Control Switch (2 Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER'S DOOR LOCK MASTER CONTROL SWITCH CONTINUITY (2 DOOR)

Switch position	Tester connection	Specified condition
LOCK	1 - 2	Continuity
OFF	1 - 2 - 5	No continuity
UNLOCK	1 - 5	Continuity

If continuity is not as specified, replace the switch.

Master switch (4 door):

INSPECT DRIVER'S DOOR LOCK CONTROL SWITCH CONTINUITY

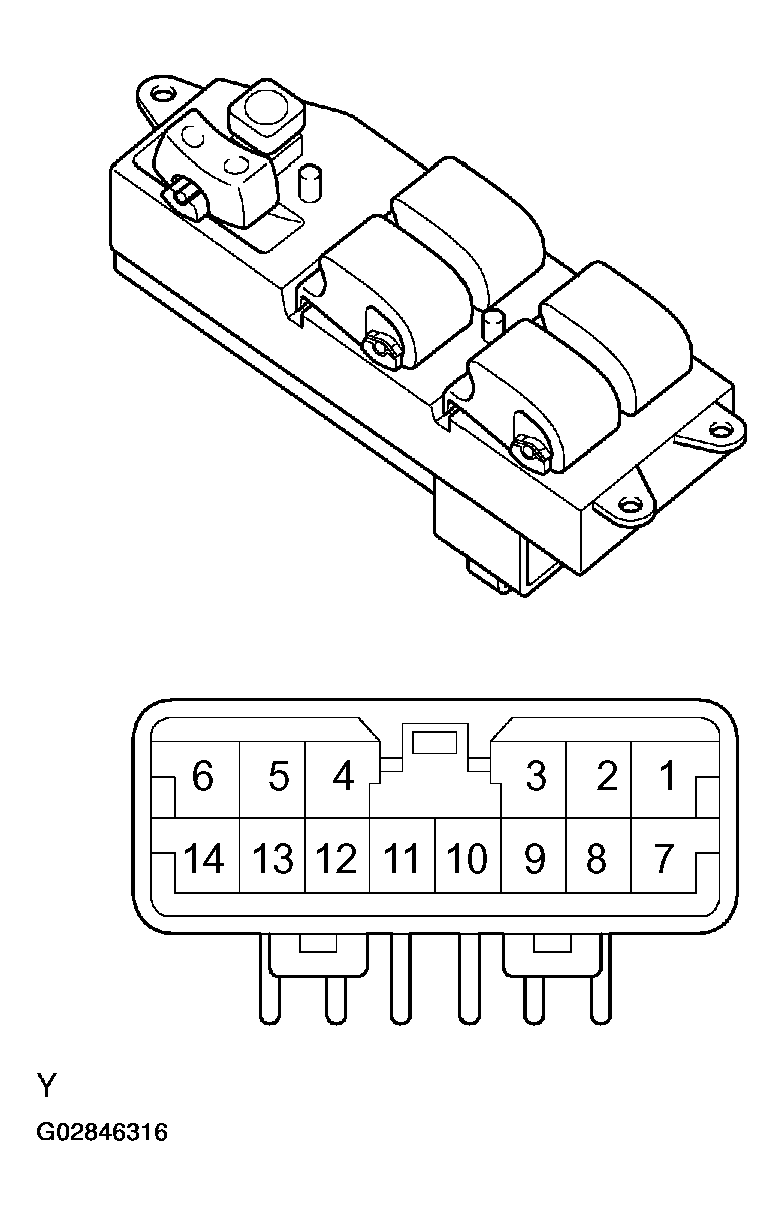

Fig 2: View Of Driver's Door Lock Master Control Switch (4 Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER'S DOOR LOCK MASTER CONTROL SWITCH CONTINUITY (4 DOOR)

Switch position	Tester connection	Specified condition
LOCK	2 - 3	Continuity
OFF	2 - 3 - 7	No continuity
UNLOCK	3 - 7	Continuity

If continuity is not as specified, replace the switch.

INSPECT FRONT PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY

Fig 3: View Of Front Passenger's Door Lock Control Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FRONT PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
LOCK	3 - 4	Continuity
OFF	2 - 3 - 4	No continuity
UNLOCK	2 - 4	Continuity

If continuity is not as specified, replace the switch.

INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

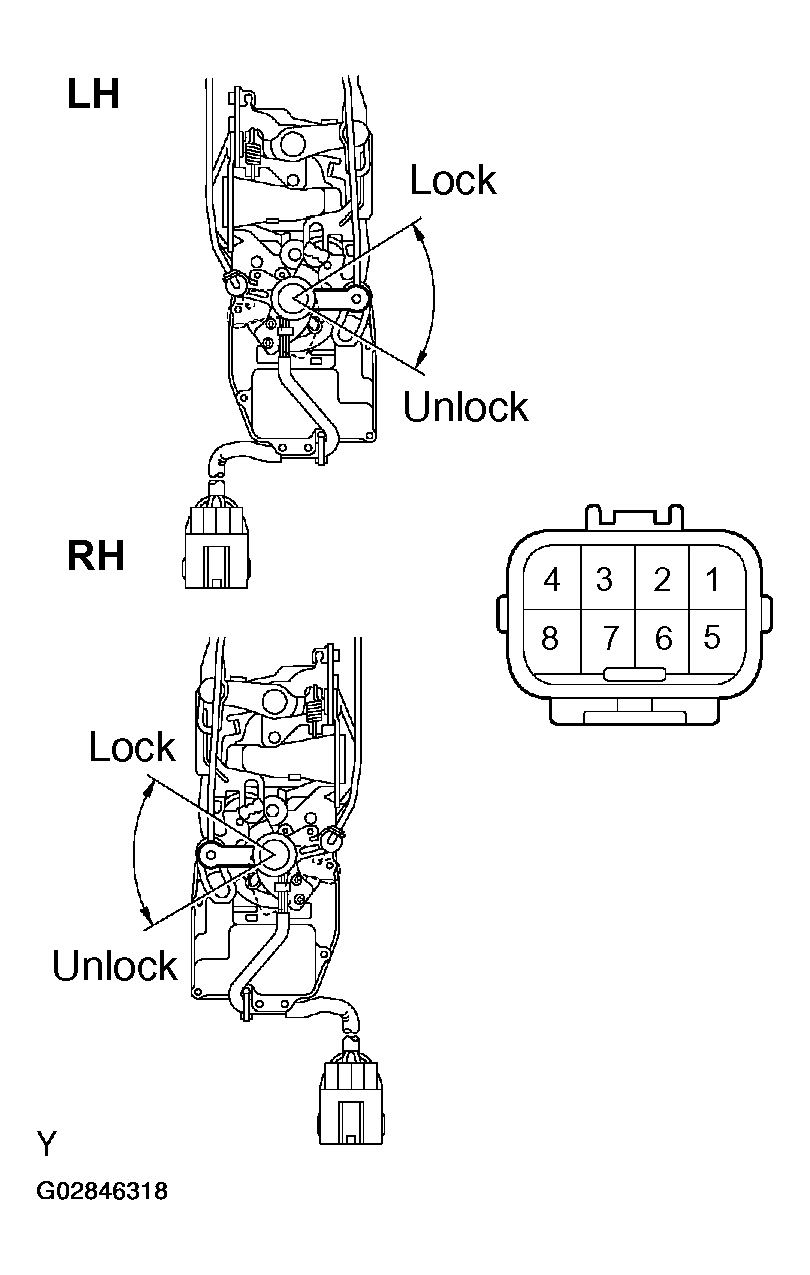

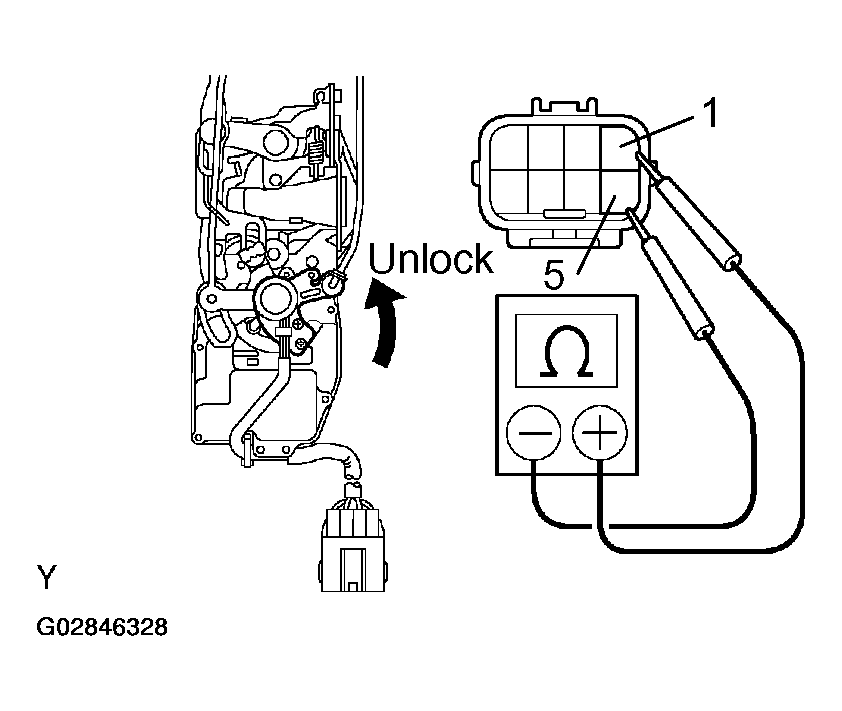

Fig 4: View Of Door Key Lock & Unlock Switches

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LH:

DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY (LH)

Switch position	Tester connection to terminal number	Specification
LOCK	5 - 6	Continuity
OFF	1 - 5 - 6	No continuity
UNLOCK	1 - 5	Continuity

If continuity is not as specified, replace the switch.

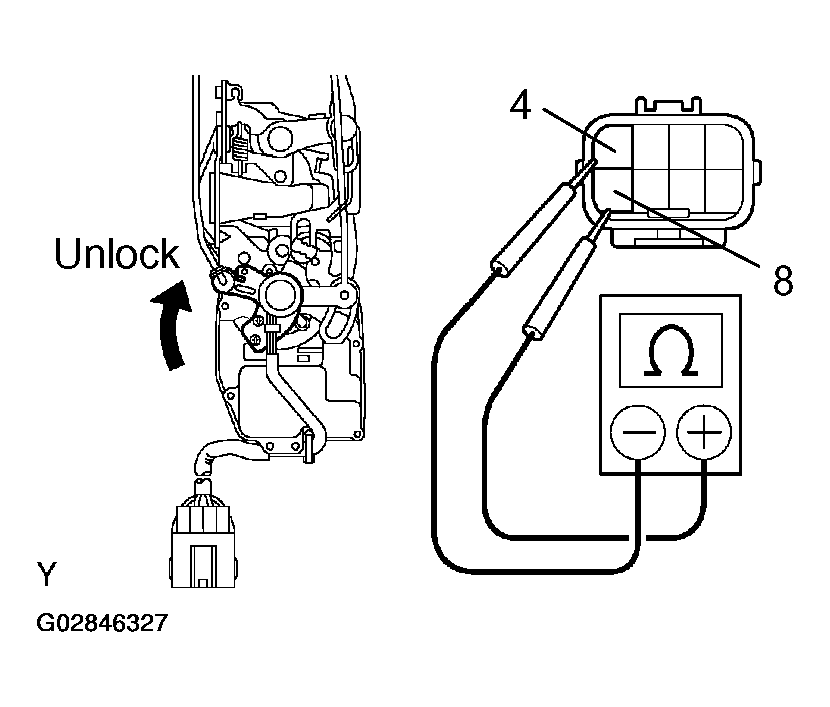

RH:

DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY (RH)

Switch position	Tester connection to terminal number	Specification
LOCK	7 - 8	Continuity
OFF	4 - 7 - 8	No continuity
UNLOCK	4 - 8	Continuity

If continuity is not as specified, replace the switch.

INSPECT DRIVER'S DOOR LOCK MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 7 and the negative (-) lead to terminal 3, and check that the door lock link moves to UNLOCK position.

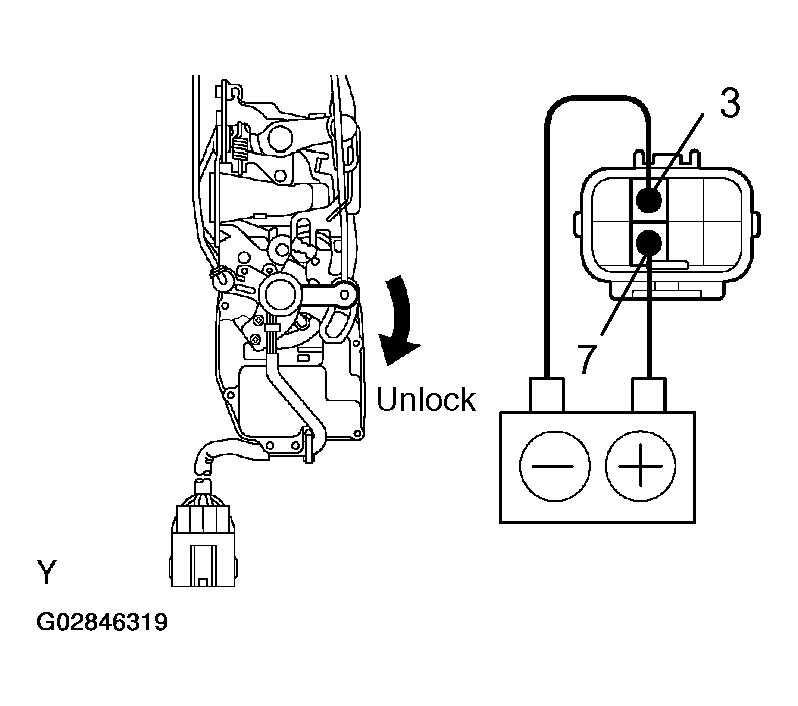

  Fig 5: Checking Door Lock Link Moves To Unlock Position (Driver's Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the door lock link moves to LOCK position.

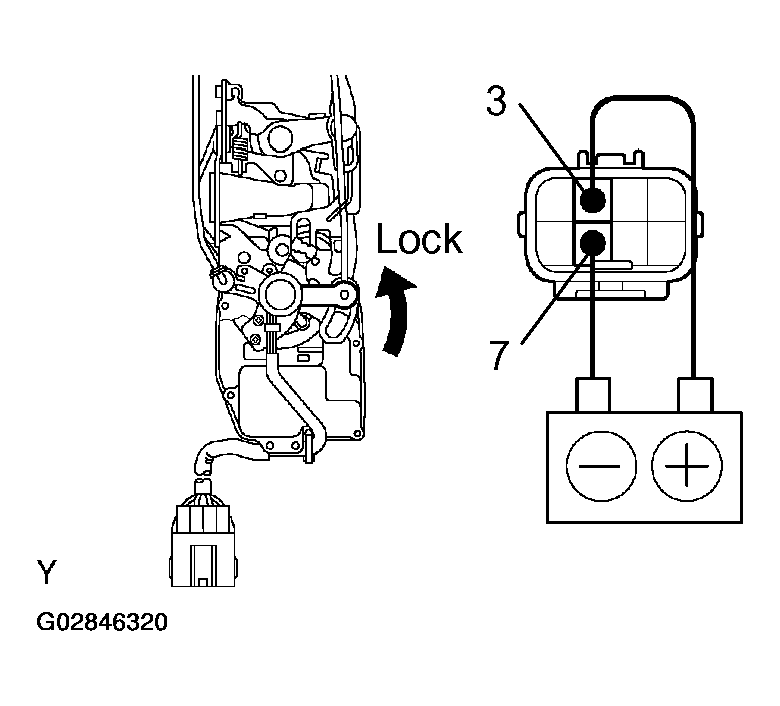

  Fig 6: Checking Door Lock Link Moves To Lock Position (Driver's Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If operation is not as specified, replace the door lock assembly.
INSPECT FRONT PASSENGER'S DOOR LOCK MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 2, and check that the door lock moves to UNLOCK position.

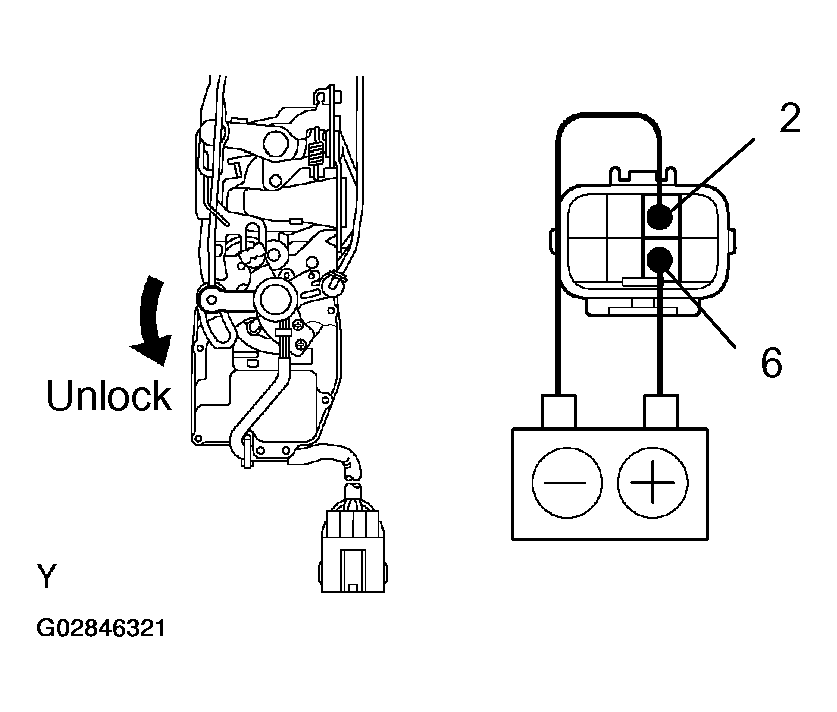

  Fig 7: Checking Door Lock Moves To Unlock Position (Passenger's Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the door lock link moves to LOCK position.

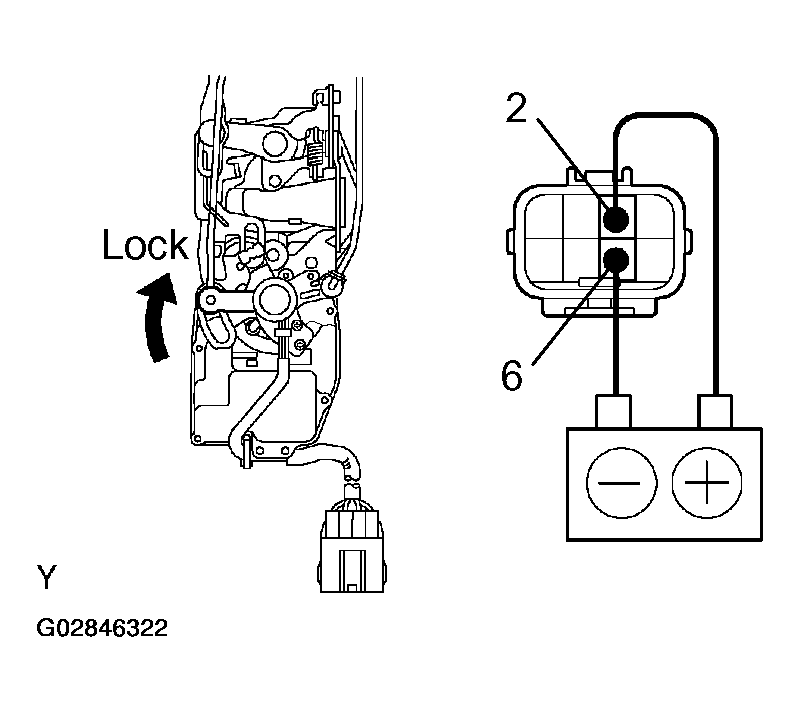

  Fig 8: Checking Door Lock Link Moves To Lock Position (Passenger's Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If operation is not as specified, replace the door lock assembly.
INSPECT REAR LH DOOR LOCK MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock moves to UNLOCK position.

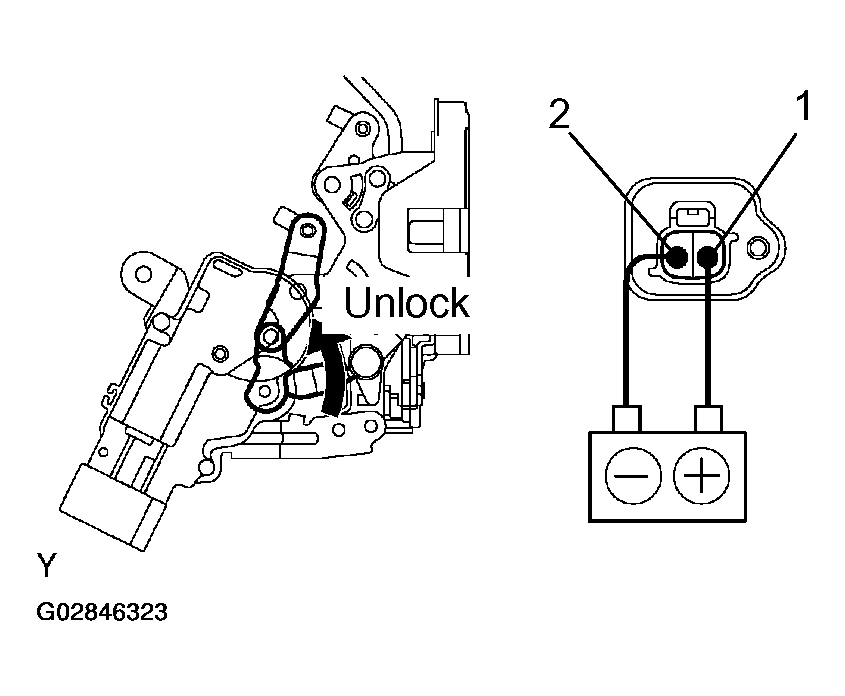

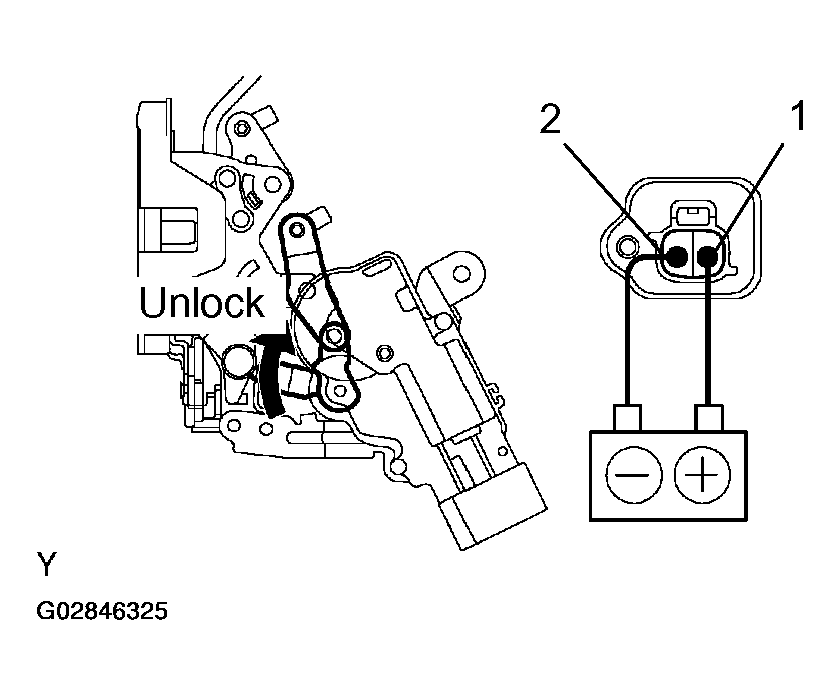

  Fig 9: Checking Door Lock Moves To UNLOCK Position (Rear LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the door lock link moves to LOCK position.

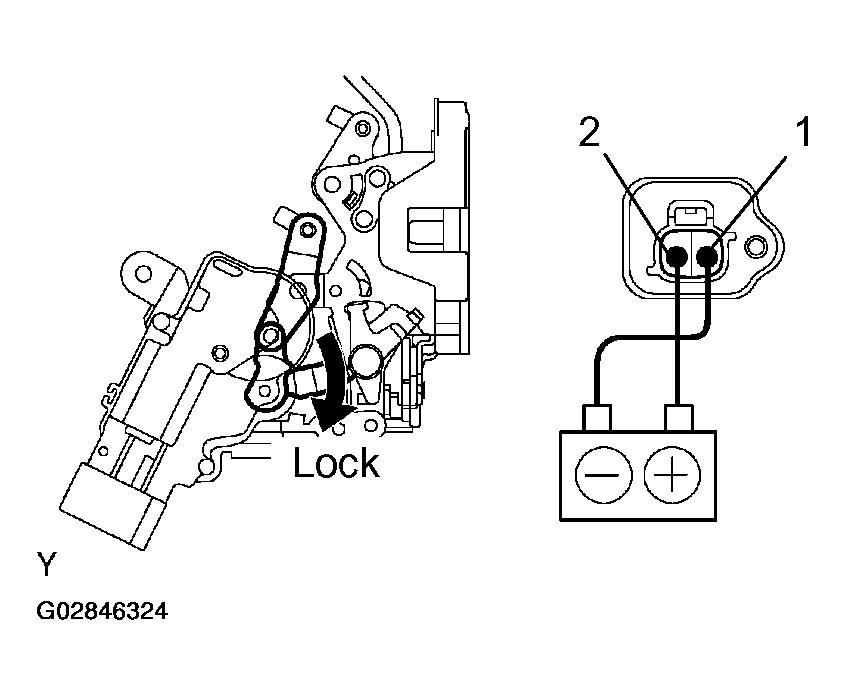

  Fig 10: Checking Door Lock Link Moves To LOCK Position (Rear LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If operation is not as specified, replace the door lock assembly.
INSPECT REAR RH DOOR LOCK MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock moves to UNLOCK position.

  Fig 11: Checking Door Lock Moves To UNLOCK Position (Rear LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the door lock link moves to LOCK position.

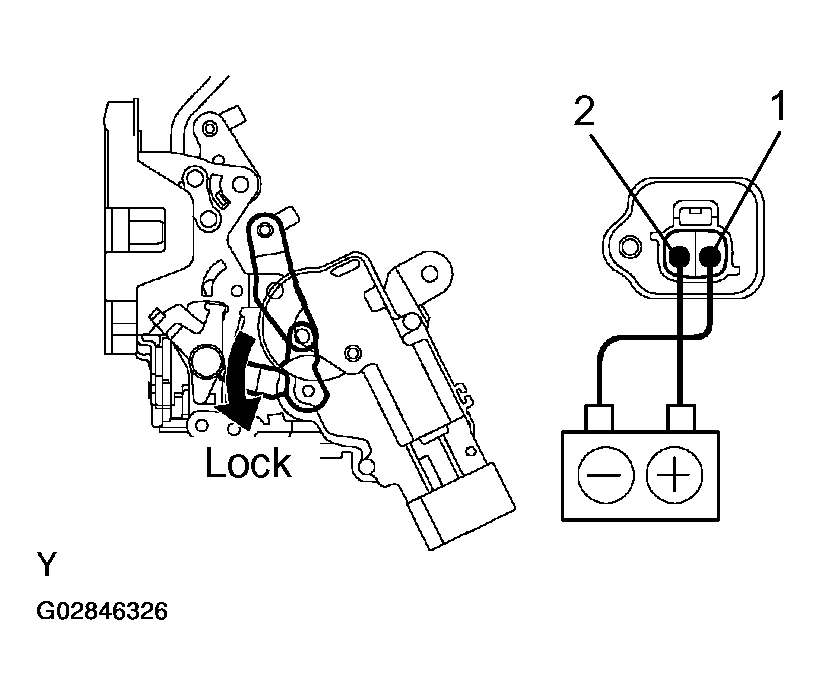

  Fig 12: Checking Door Lock Link Moves To Lock Position (Rear LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If operation is not as specified, replace the door lock assembly.
