Ignition Switch & Key Unlock Warning System: Location

NOTE:

• For body electrical precautions, see BODY ELECTRICAL - PRECAUTIONS .
• For body electrical troubleshooting tables, see BODY ELECTRICAL - TROUBLESHOOTING .

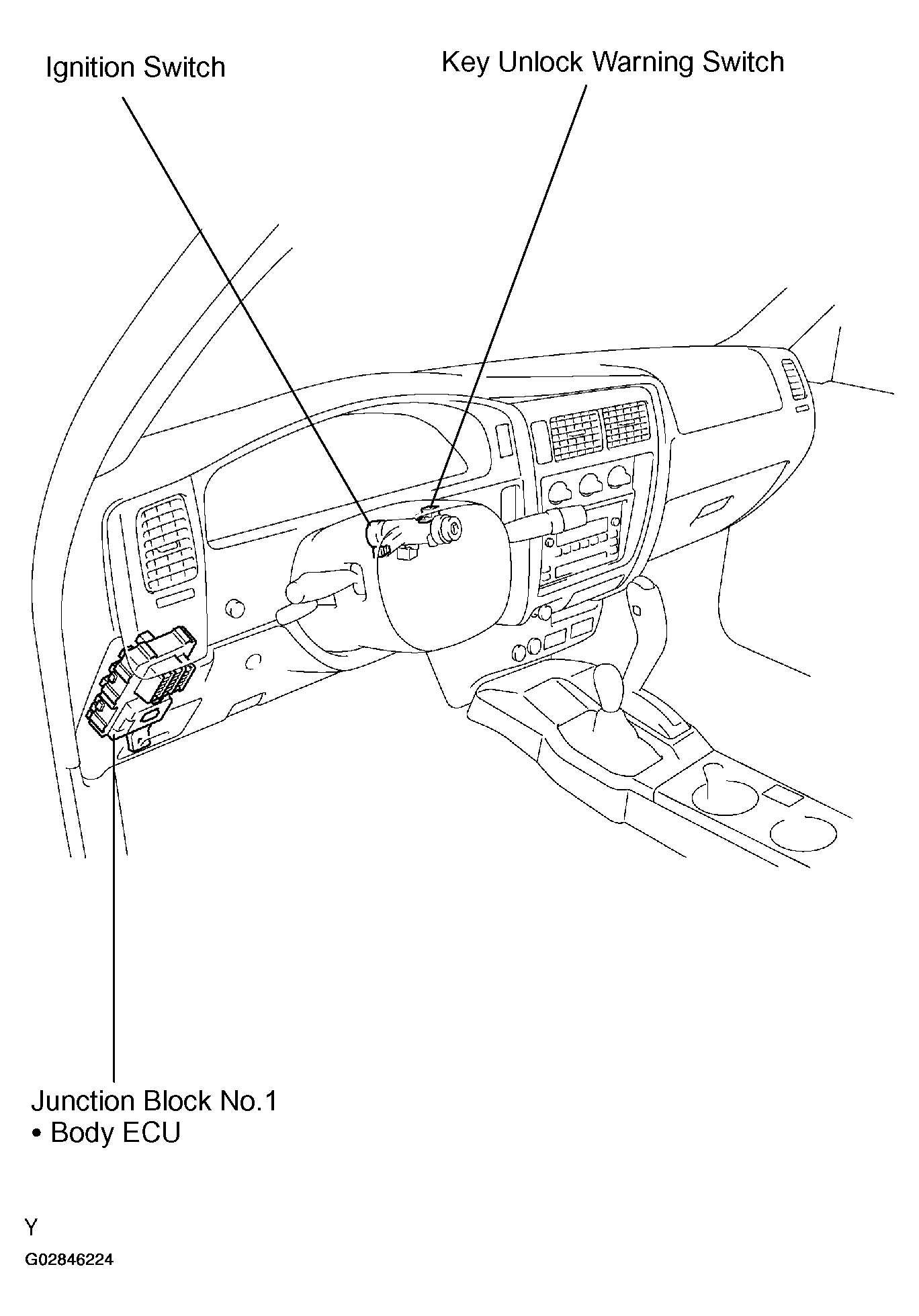

Fig 1: Locating JB No. 1, Ignition Switch And Key Unlock Warning Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
