Engine Exhaust Assembly: Components: 4-Cylinder

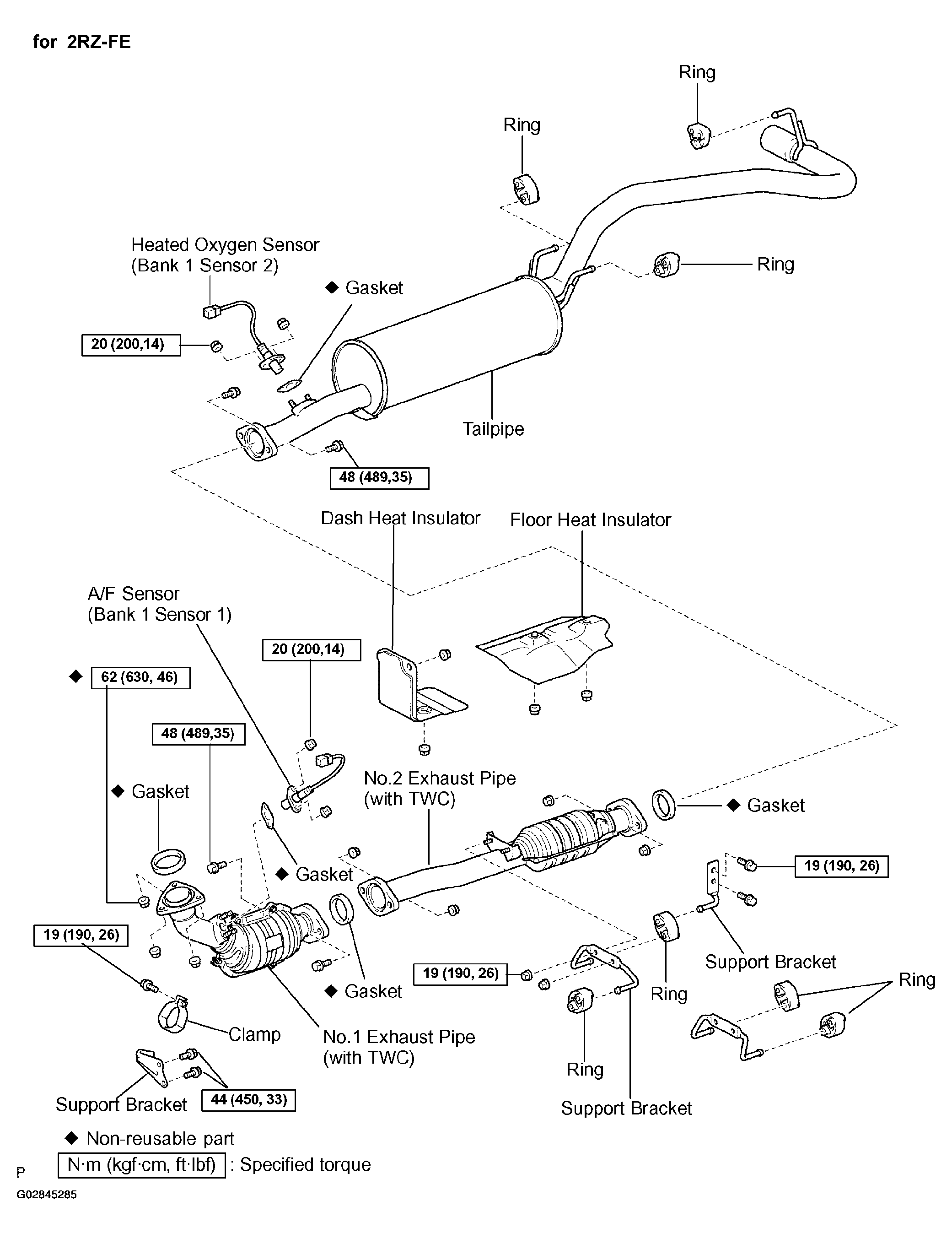

Fig 1: Exploded View Of Exhaust System Components (2RZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

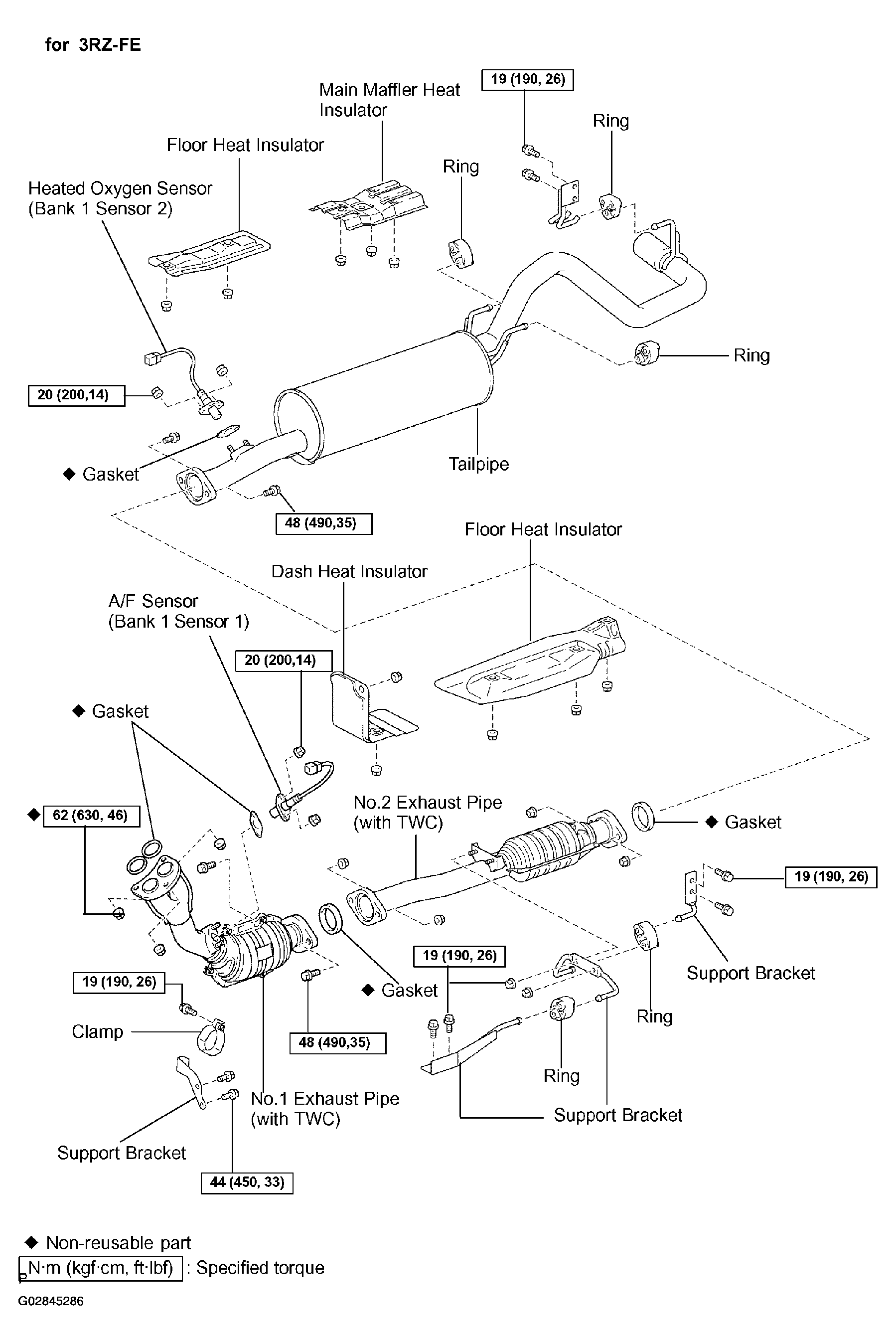

Fig 2: Exploded View Of Exhaust System Components (3RZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
