Problem Symptoms Table

NOTE: For precautions, see STEERING SYSTEM PRECAUTIONS article.

Use Fig 1 to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in the order shown. If necessary, repair or replace these parts.

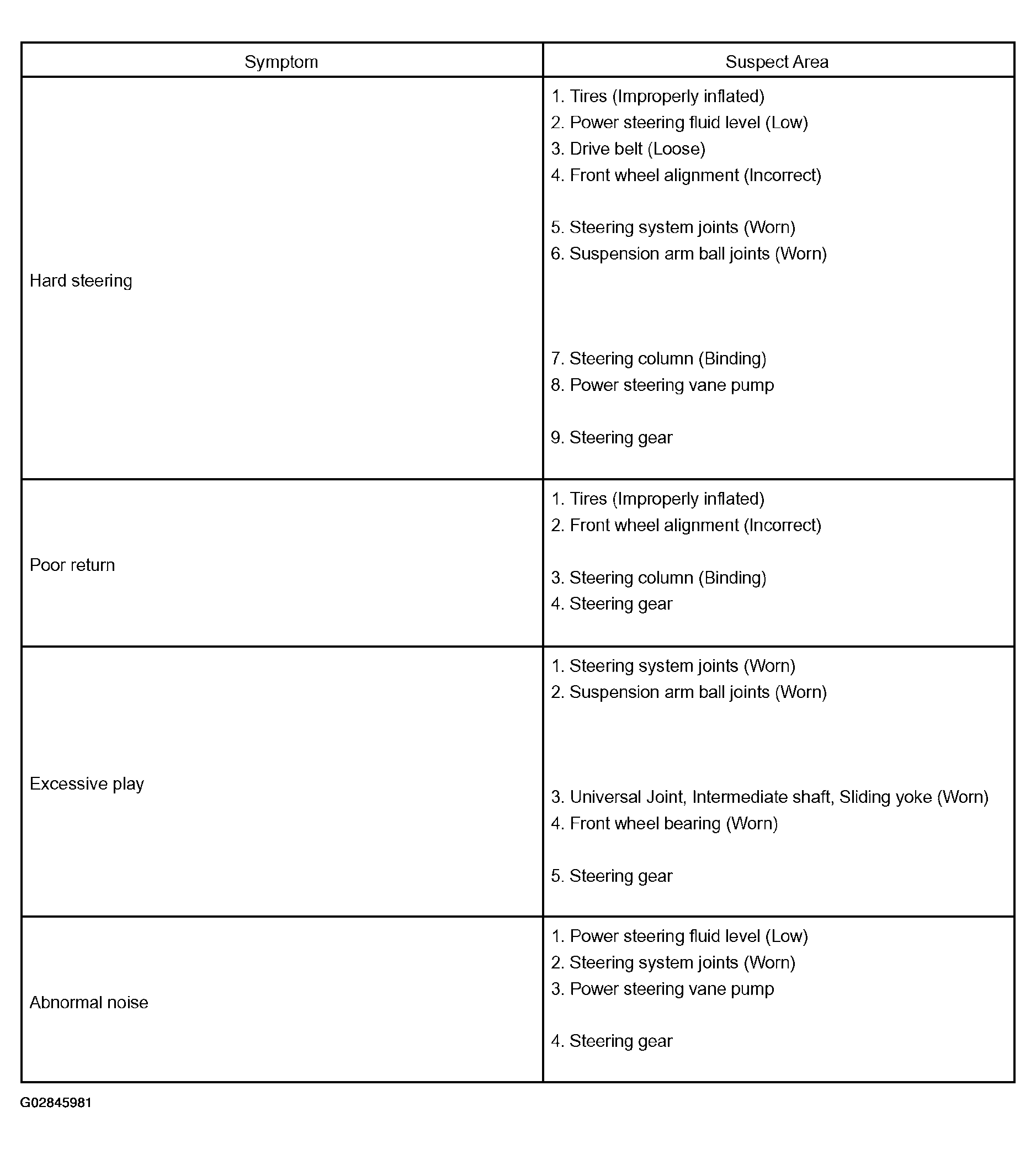

Fig 1: Troubleshooting Problem Symptoms Table
G02845981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
