Non-Tilt Steering Column: Components

NOTE:

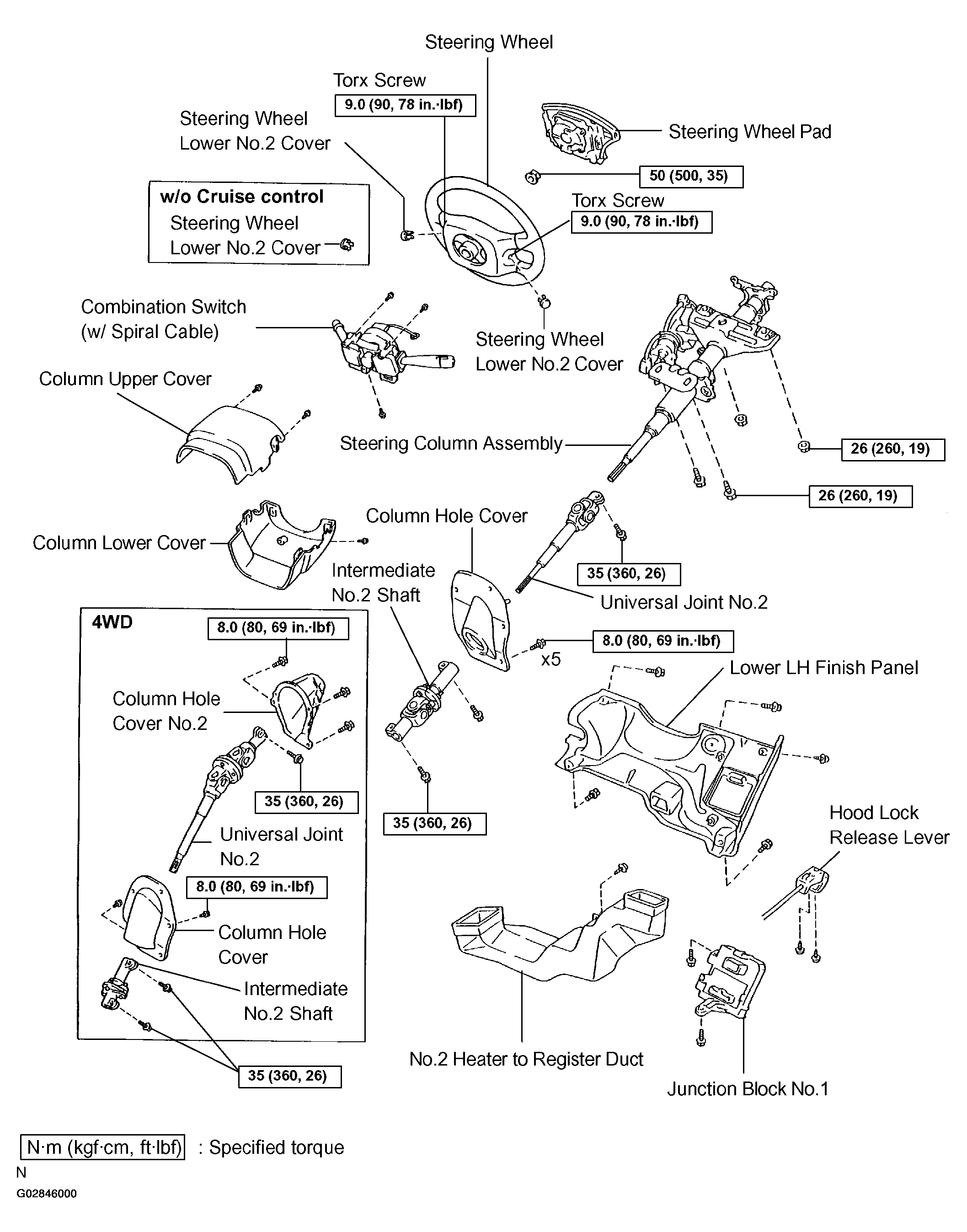

Fig 1: Identifying Non Tilt Steering Column Components (1 Of 2)
G02846000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

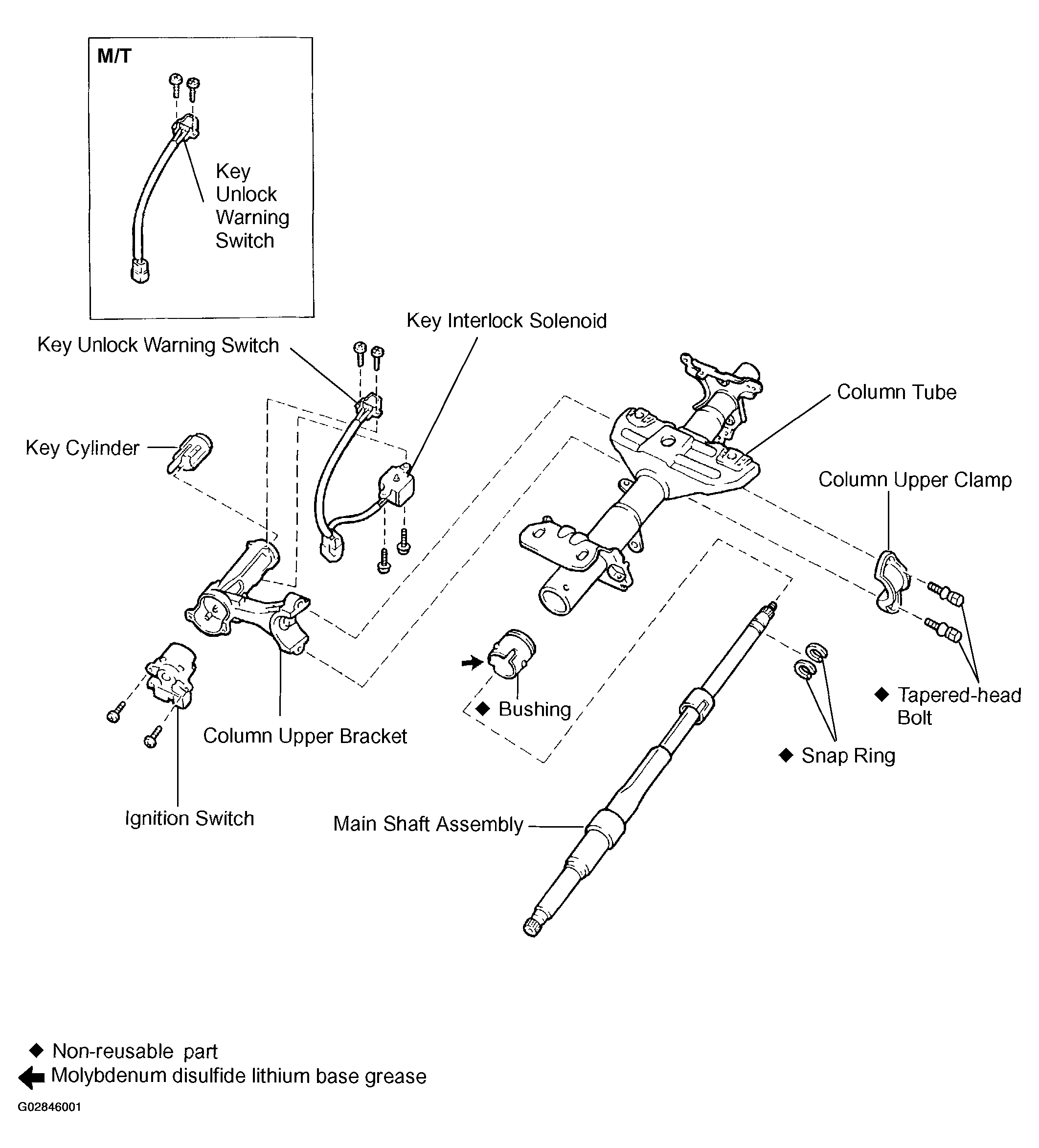

Fig 2: Identifying Non Tilt Steering Column Components (2 Of 2)
G02846001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
