Problem Symptoms Table

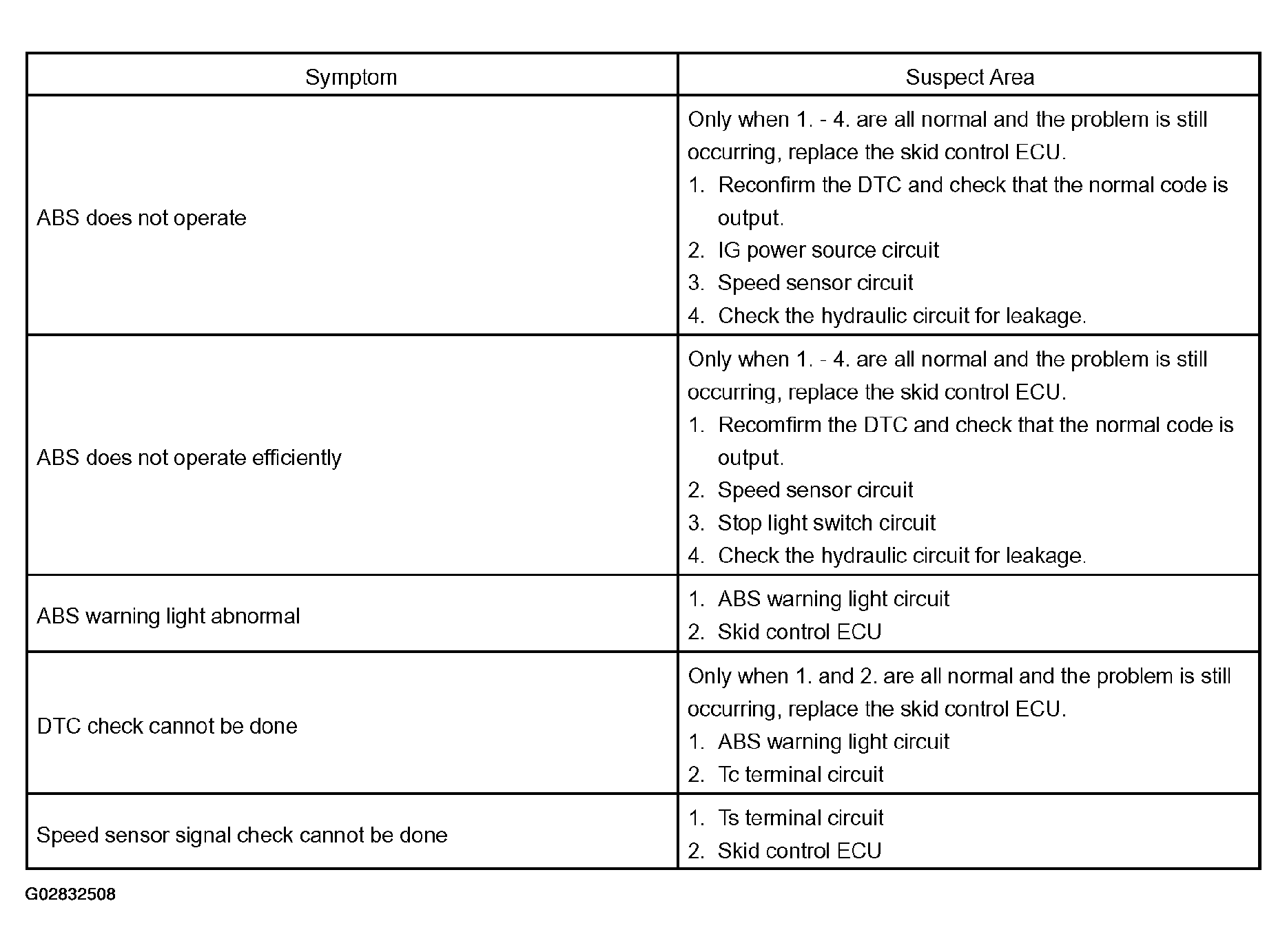

If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in Fig 1 and proceed to the relevant troubleshooting procedure.
CAUTION:
When replacing skid control ECU, sensor or etc., turn the ignition switch OFF.
