Combination Meter: Circuit

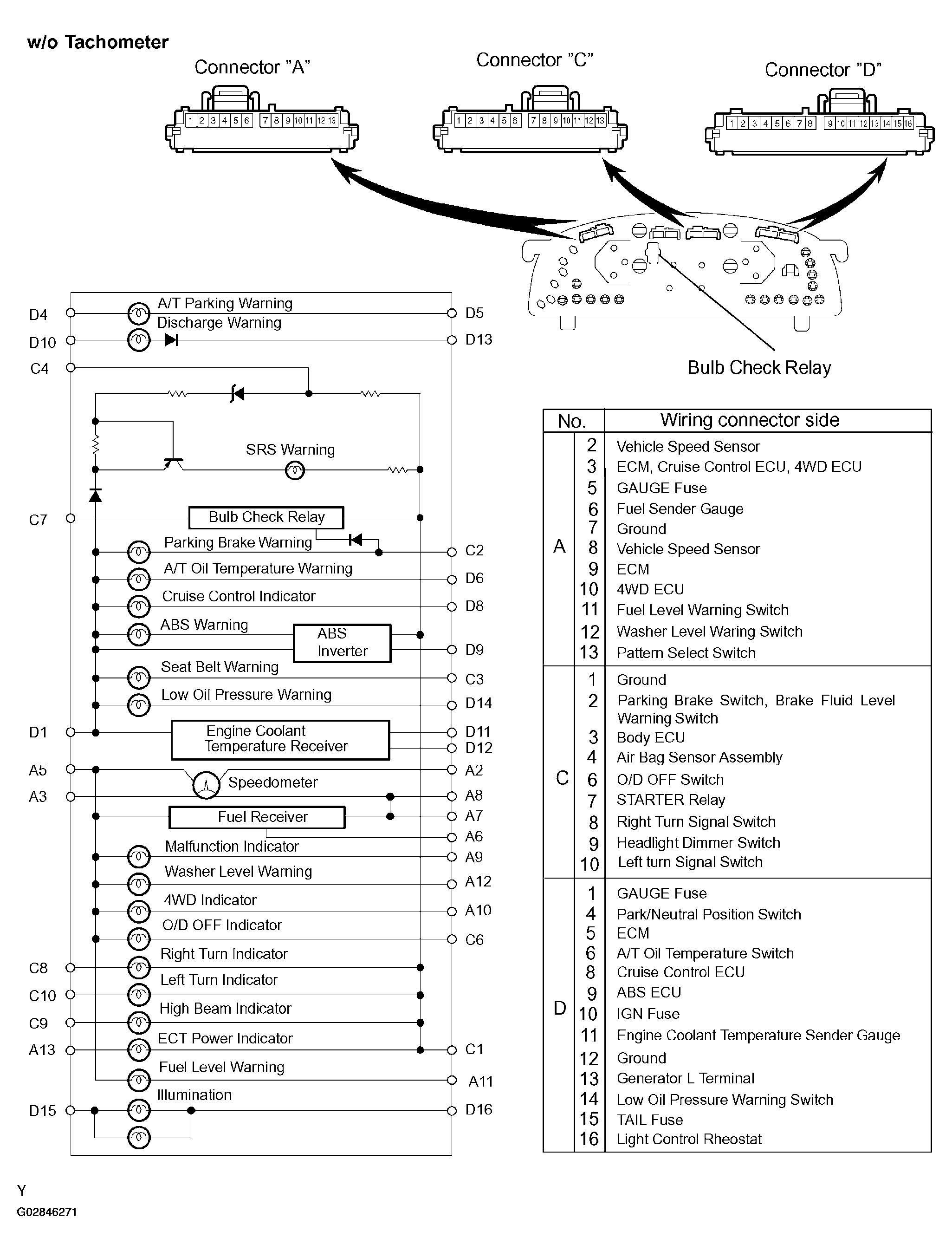

Fig 1: Combination Meter Circuit Diagram (W/O Tachometer)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

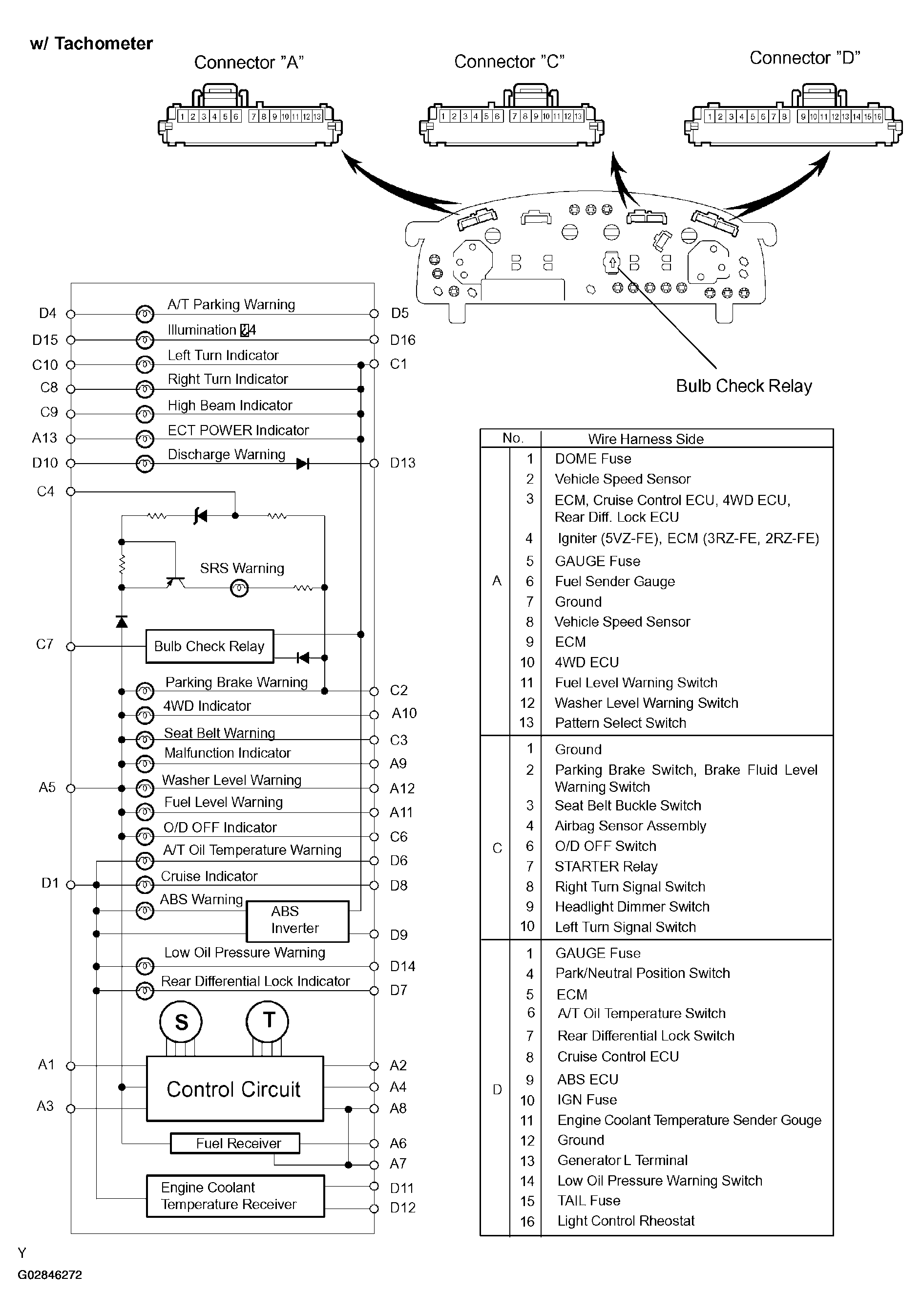

Fig 2: Combination Meter Circuit Diagram (W/Tachometer)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
