Inspection Procedure

  1. Inspect security indicator (Glass breakage sensor microphone).

    PREPARATION:

    Remove the security indicator (glass breakage sensor microphone).

    CHECK:

    Apply battery voltage between each terminal, and check the lighting condition of the indicator.

    OK:

    Fig 1: Identifying Security Indicator (Glass Breakage Sensor Microphone) And Connector Terminal
    G02843928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Operation Chart
    G02843929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : Replace security indicator.
    2. OK : Go to Next Step.
  2. Check harness and connector between TVIP ECU and security indicator.

    PREPARATION:

    Disconnect the T11 TVIP ECU and S10 security indicator (glass breakage sensor microphone) connectors.

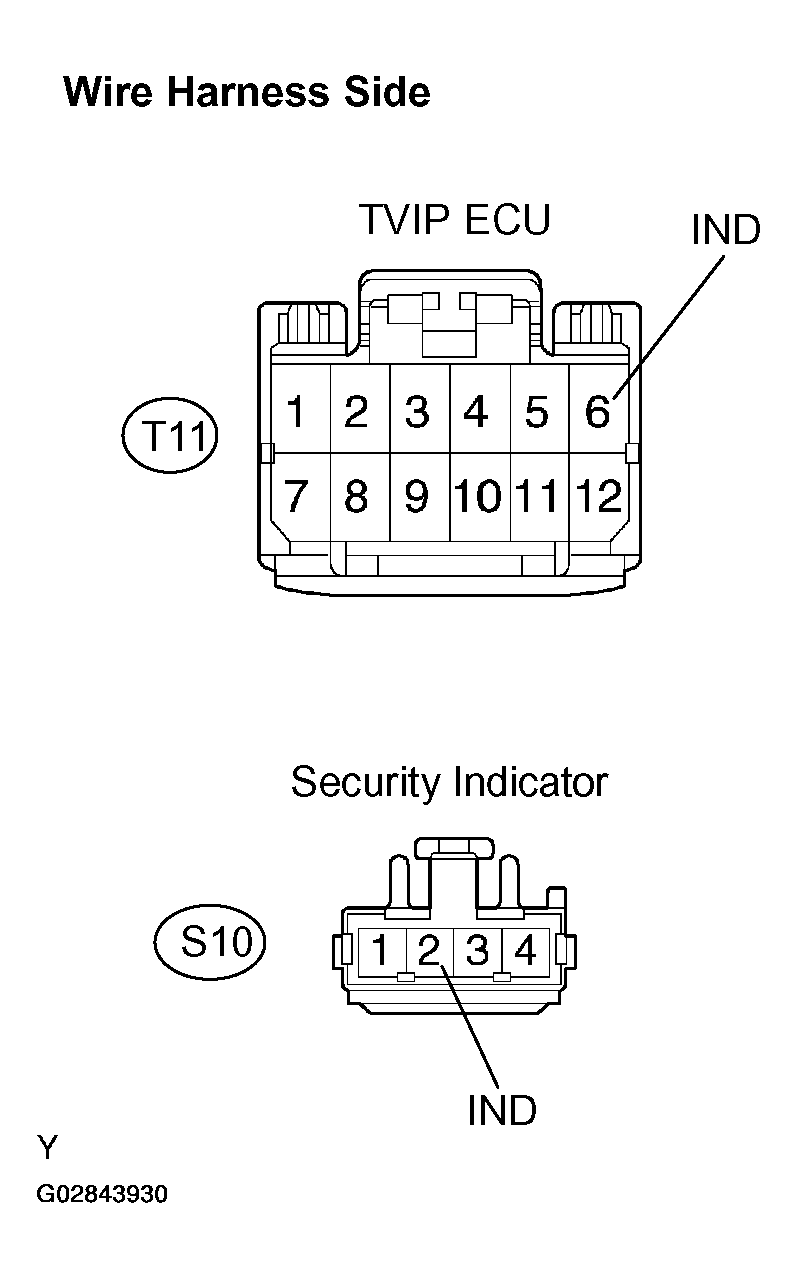

    Fig 3: Identifying T11 TVIP ECU And S10 Security Indicator Connectors
    G02843930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    CHECK:

    Check the continuity between the wire harness side connectors.

    OK

    SPECIFIED CONDITION

    Symbols (Terminal No.) (TVIP ECU <--> Security indicator) Specified condition
    IND (T11-6) <--> IND (S10-2) Continuity
    1. NG : Repair or replace harness and connector.
    2. OK : Go to Next Step.
  3. Check harness and connector between security indicator and body ground.

    PREPARATION:

    Disconnect the S10 security indicator (glass breakage sensor microphone) connector.

    CHECK:

    Check the continuity between the S10 security indicator wire harness side connector and body ground.

    Fig 4: Identifying S10 Security Indicator (Glass Breakage Sensor Microphone) Connector
    G02843931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    SPECIFIED CONDITION

    Symbols (Terminal No.) (Security indicator <--> Body ground) Specified condition
    E (S10-1) <--> Body ground Continuity
    1. NG : Repair or replace harness and connector.
    2. OK : Check and replace TVIP ECU.
