How To Proceed With Troubleshooting
NOTE:
Troubleshooting of the TOYOTA vehicle intrusion protection system (TVIP) is based on the premise that the power door lock control system is operating normally. Accordingly, before troubleshooting the TOYOTA vehicle intrusion protection system, first make certain that the power door lock control system is operating normally.

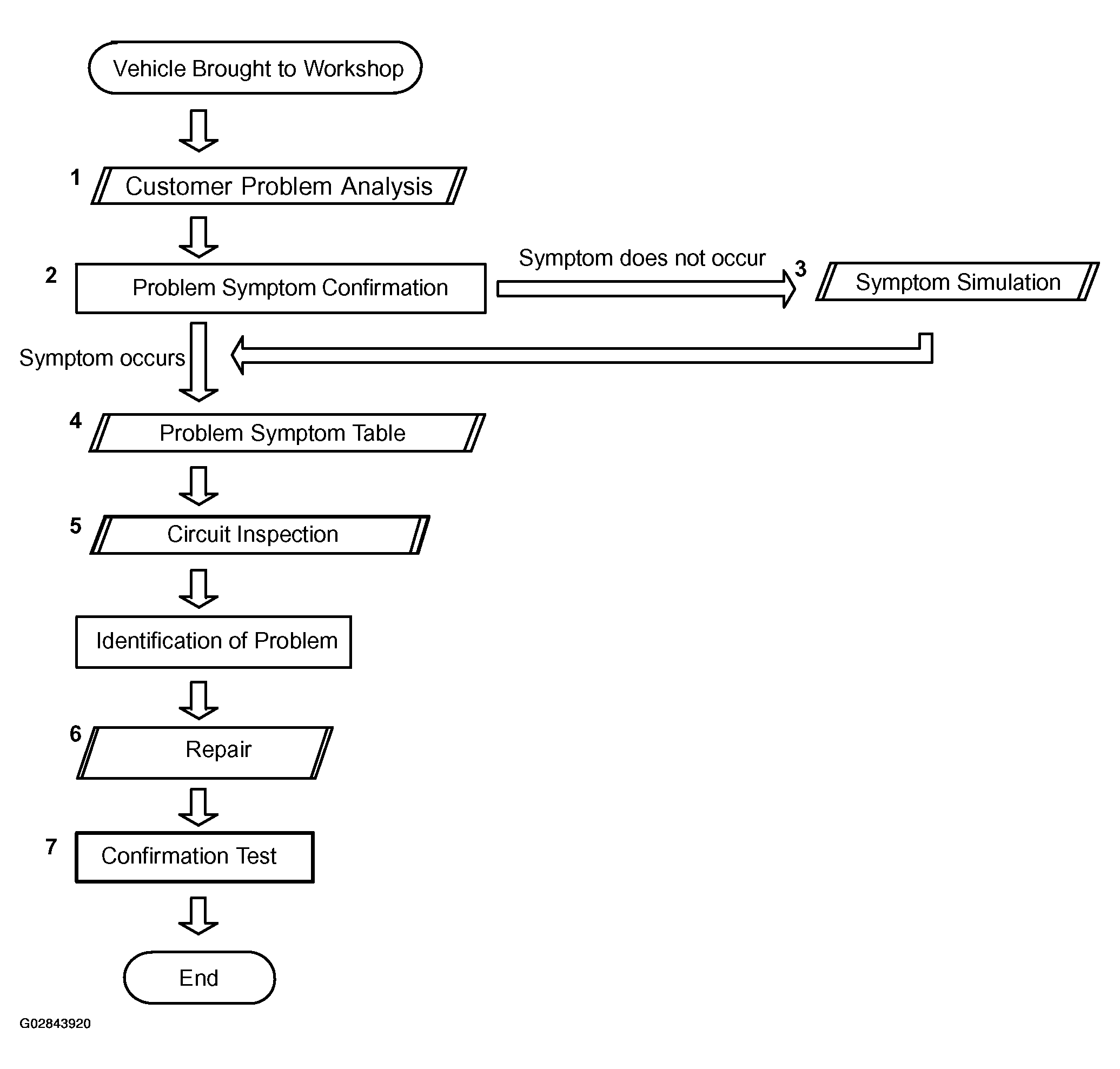

Troubleshoot in accordance with the procedures in Fig 1.
