Back Window Glass: Components

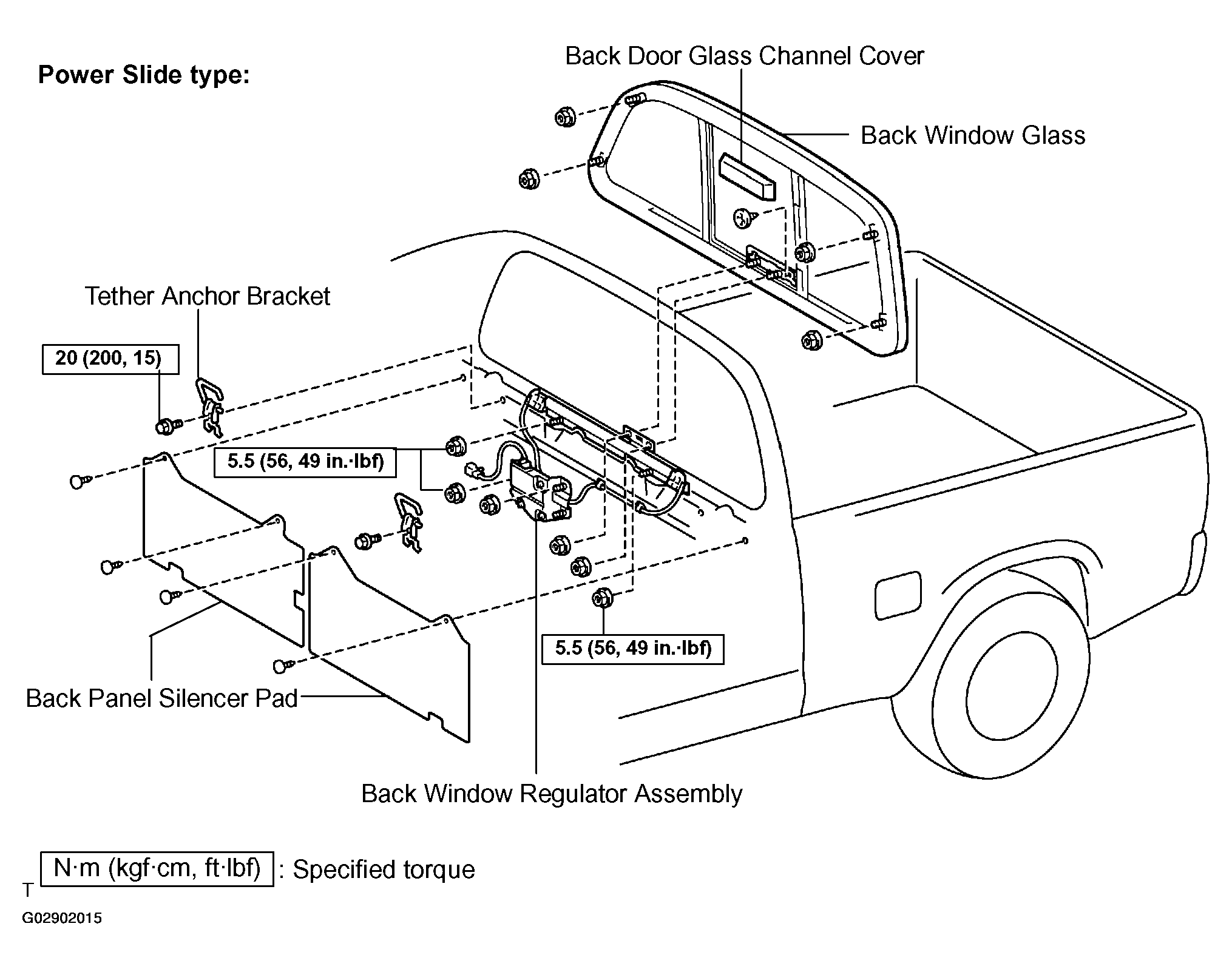

Fig 1: Locating Back Window Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

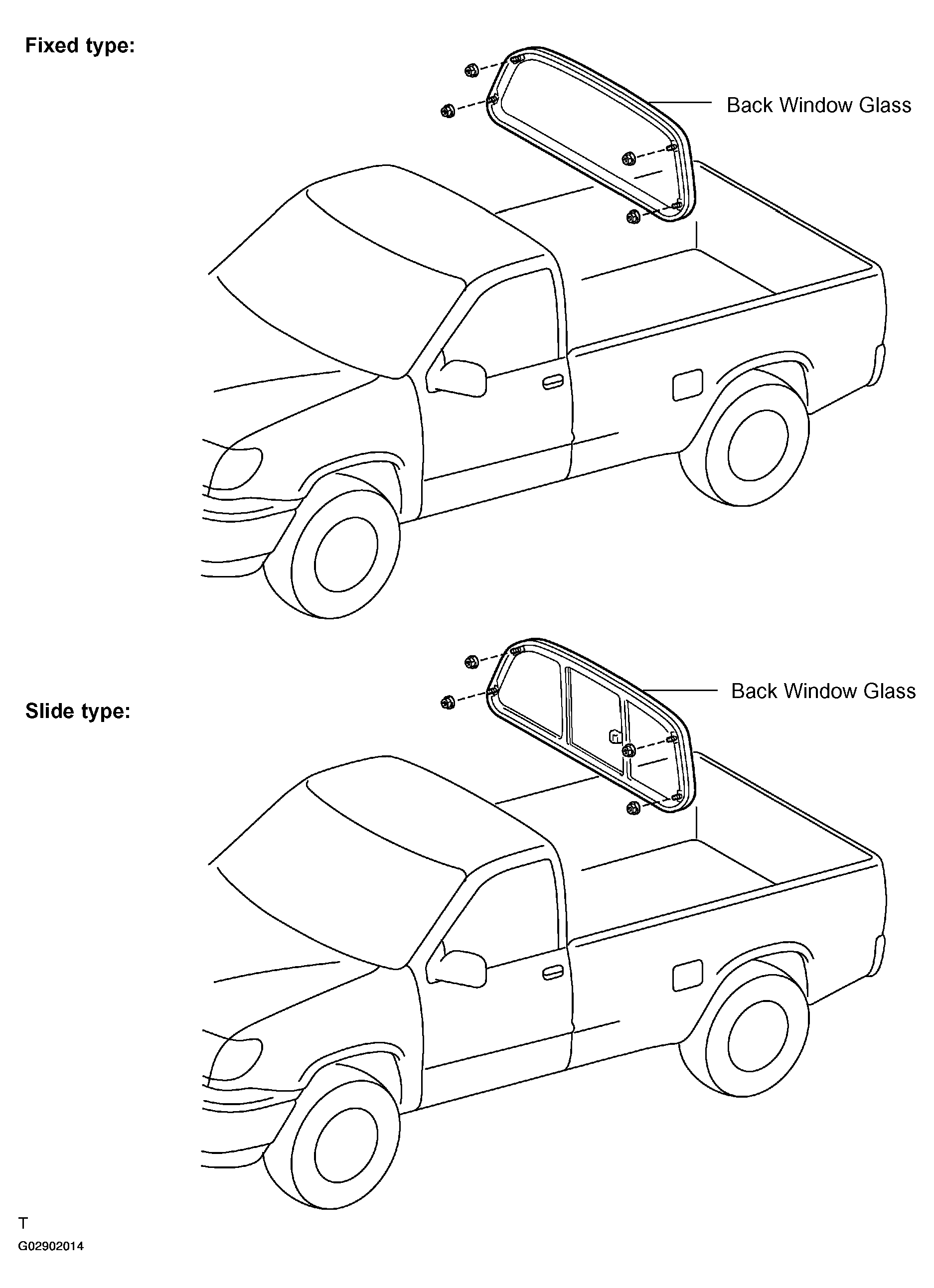

Fig 2: Locating Back Window Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
