Body Electrical Systems - Troubleshooting
›
TROUBLESHOOTING - Tundra
›
Problem Symptoms Table
›
Power Window Control System
Power Window Control System

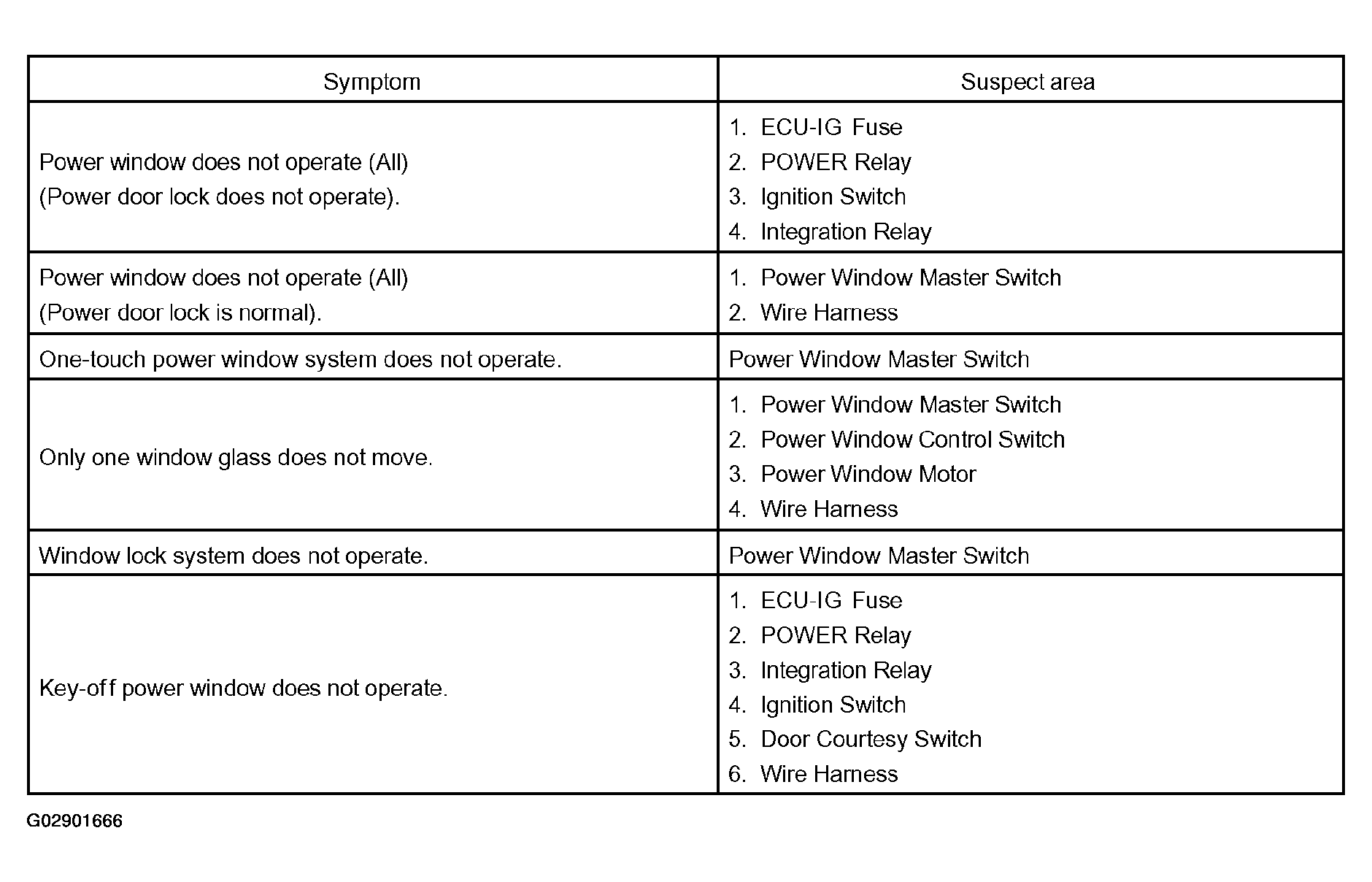

Fig 1: Power Window Control System Problem Symptoms Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
