Problem Symptoms Table

Use Fig 1 and Fig 2 to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

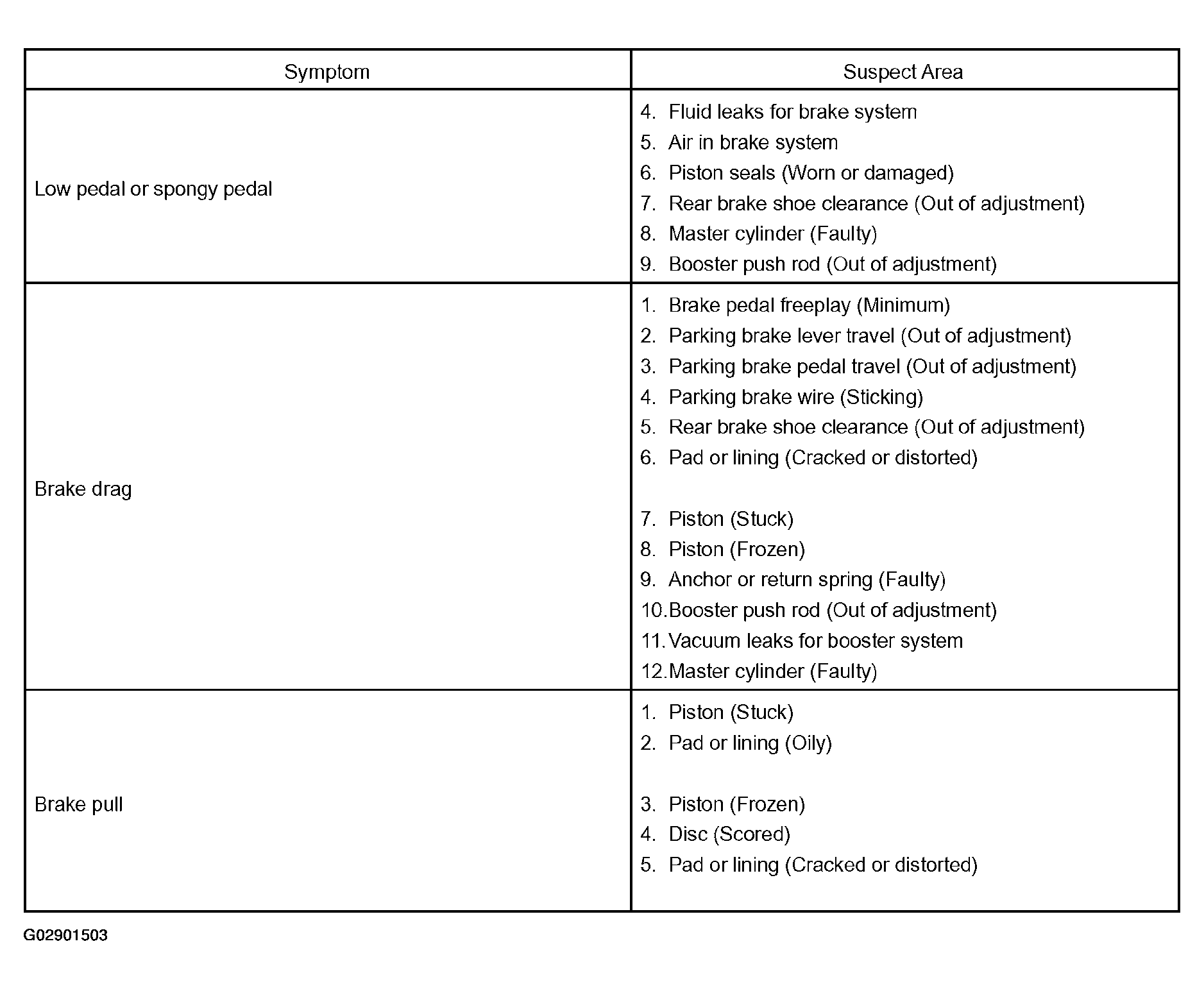

Fig 1: Problem Symptoms (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

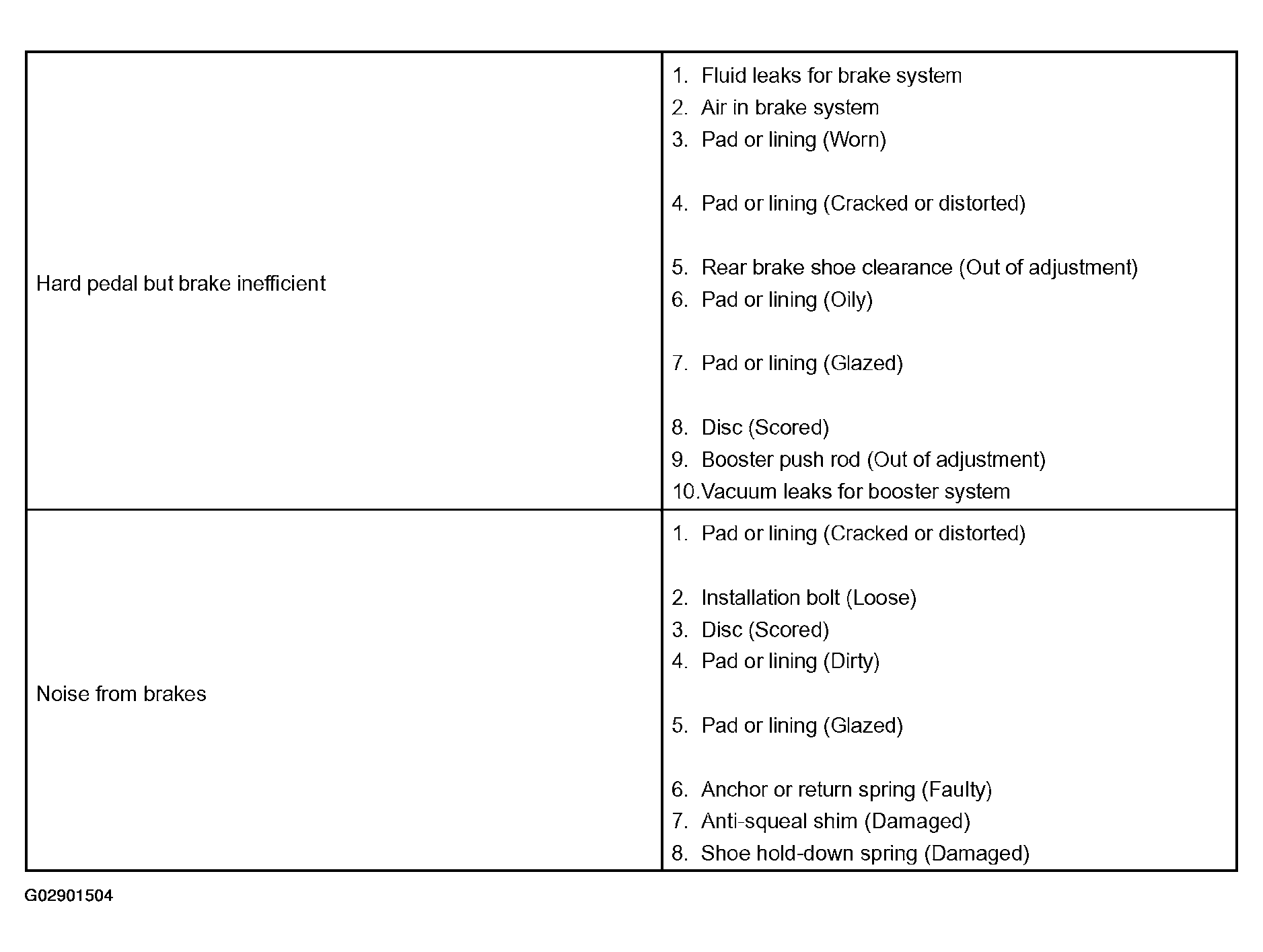

Fig 2: Problem Symptoms (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
