Trailer Towing System: Inspection
- INSPECT TOWING CONVERTER CIRCUIT
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

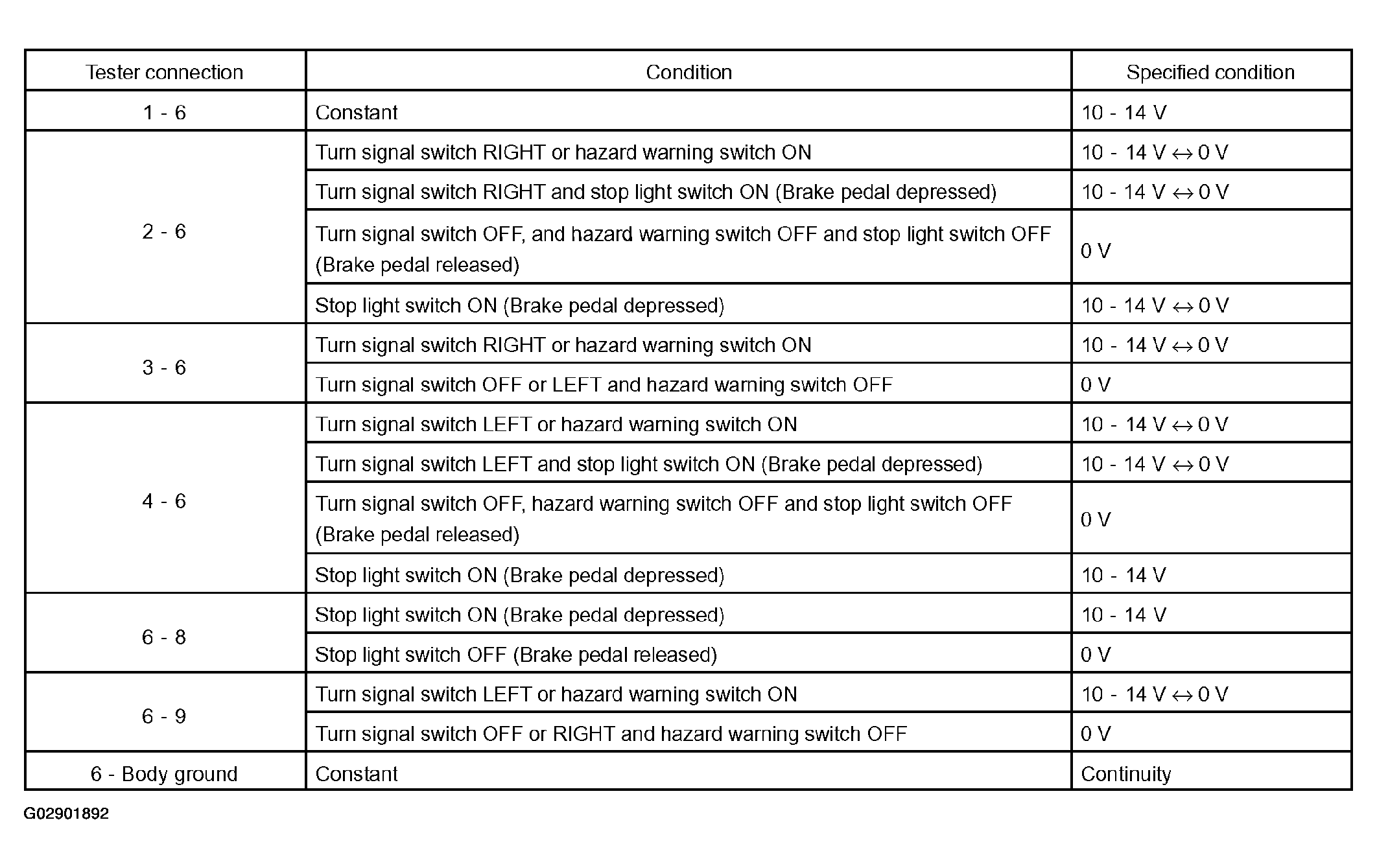

Remove the towing converter with the connector still connected and inspect the wire harness side connector from the back side, as shown in the table.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, inspect the circuit connected to other parts.
- INSPECT TOWING TAIL RELAY (Marking: TOW TAIL) CONTINUITY TOWING TAIL RELAY (MARKING: TOW TAIL) CONTINUITY
Condition Tester Connection Specified Condition Constant 1 - 2 Continuity Apply B+ Between Terminals 1 & 2 3-5 Continuity - If the continuity is not as specified, replace the relay.
- INSPECT SUB BATTERY RELAY (Marking: SUB BATT) CONTINUITY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SUB BATTERY RELAY (MARKING: SUB BATT) CONTINUITYCondition Tester Connection Specified Condition Constant 1 - 2 Continuity Apply B+ Between Terminals 1 & 2 3-5 Continuity If the continuity is not as specified, replace the relay.
