Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Component Location |
| Driver's Side J/B |
Behind lower left side of dash. See Figure. |
| Engine Room R/B (3.4L) |
On left side of engine compartment. See Figure. |

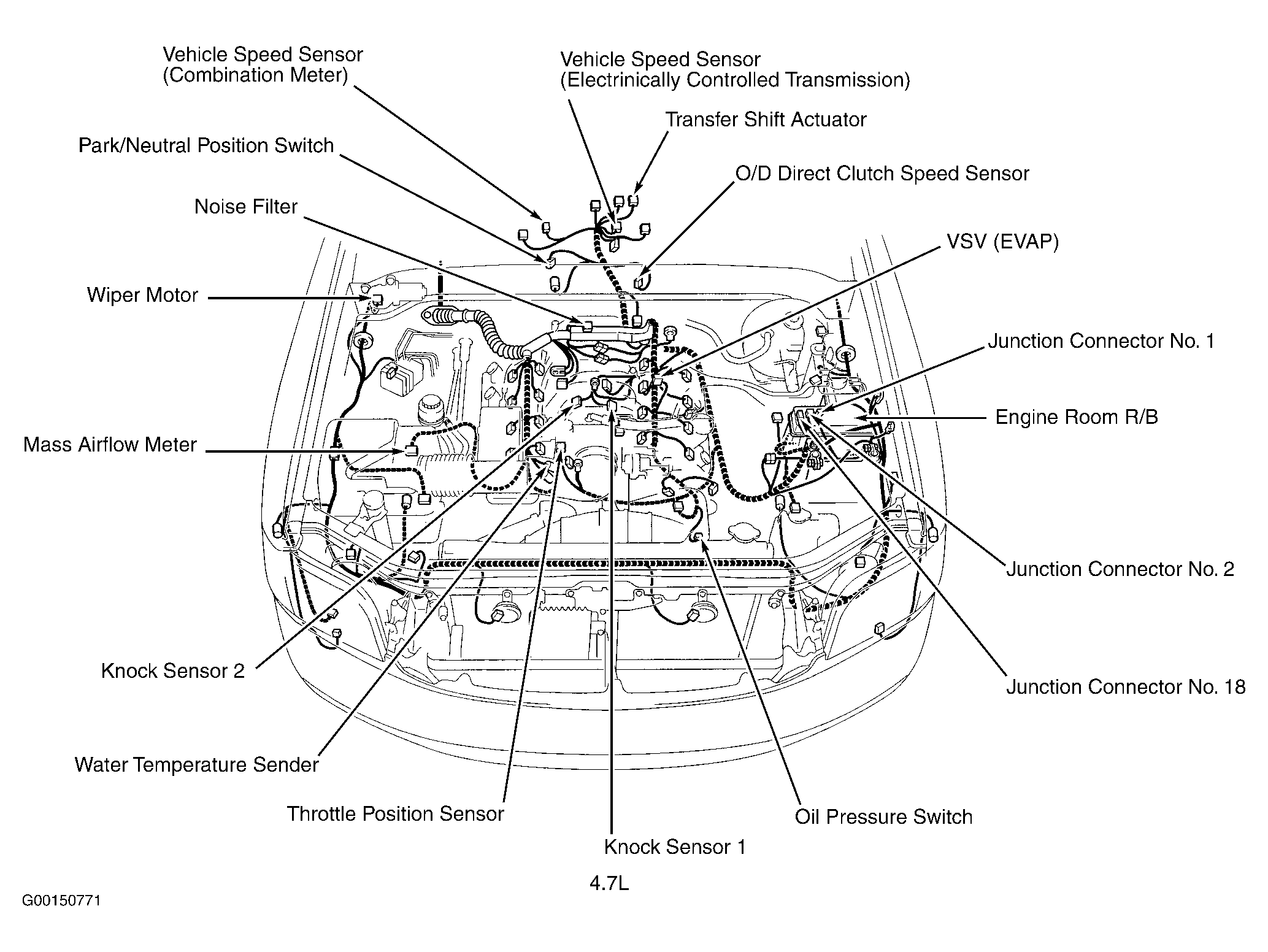

| Engine Room R/B (4.7L) |
On left side of engine compartment. See Figure. |
