Section 336 (Stop Light System): Inspection

WARNING: This page is about a different car, the 2004 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Double cab: INSPECT STOP LIGHT SWITCH CONTINUITY

STOP LIGHT SWITCH CONTINUITY (DOUBLE CAB)

Switch Position	Tester Connection	Specified Condition
Not pushed	1 - 4	Continuity
Pushed in	1 - 4	No continuity
Not pushed	2 - 3	No continuity
Pushed in	2 - 3	Continuity

If the continuity is not as specified, replace the switch.

Fig 1: Inspecting Stop Light Switch Continuity (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Except double cab: INSPECT STOP LIGHT SWITCH CONTINUITY

STOP LIGHT SWITCH CONTINUITY (EXCEPT DOUBLE CAB)

Switch Position	Tester Connection	Specified Condition
Not pushed	1 - 2	Continuity
Pushed in	1 - 2	No continuity
Not pushed	3-4	No continuity
Pushed in	3 - 4	Continuity

If the continuity is not as specified, replace the switch.

Fig 2: Inspecting Stop Light Switch Continuity (Except Double Cab)

INSPECT HI- MOUNTED STOP LIGHT ASSEMBLY CONTINUITY
Using an ohmmeter, check that continuity exists between terminals 1 and 2.

If the continuity is not as specified, replace the bulb or light.

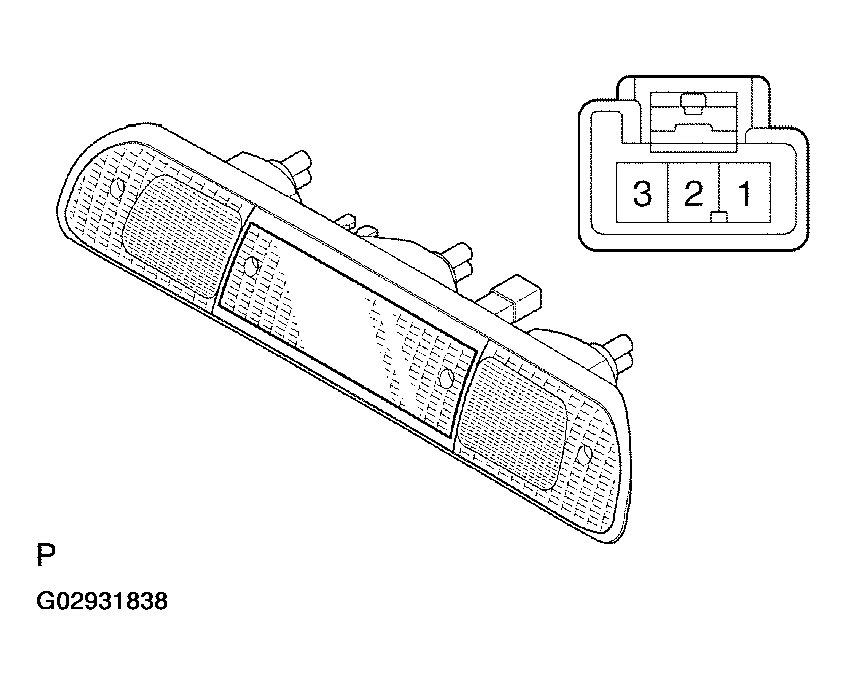

Fig 3: Inspecting Hi-Mounted Stop Light Assembly Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
