Chapter 2: On-Vehicle Repair

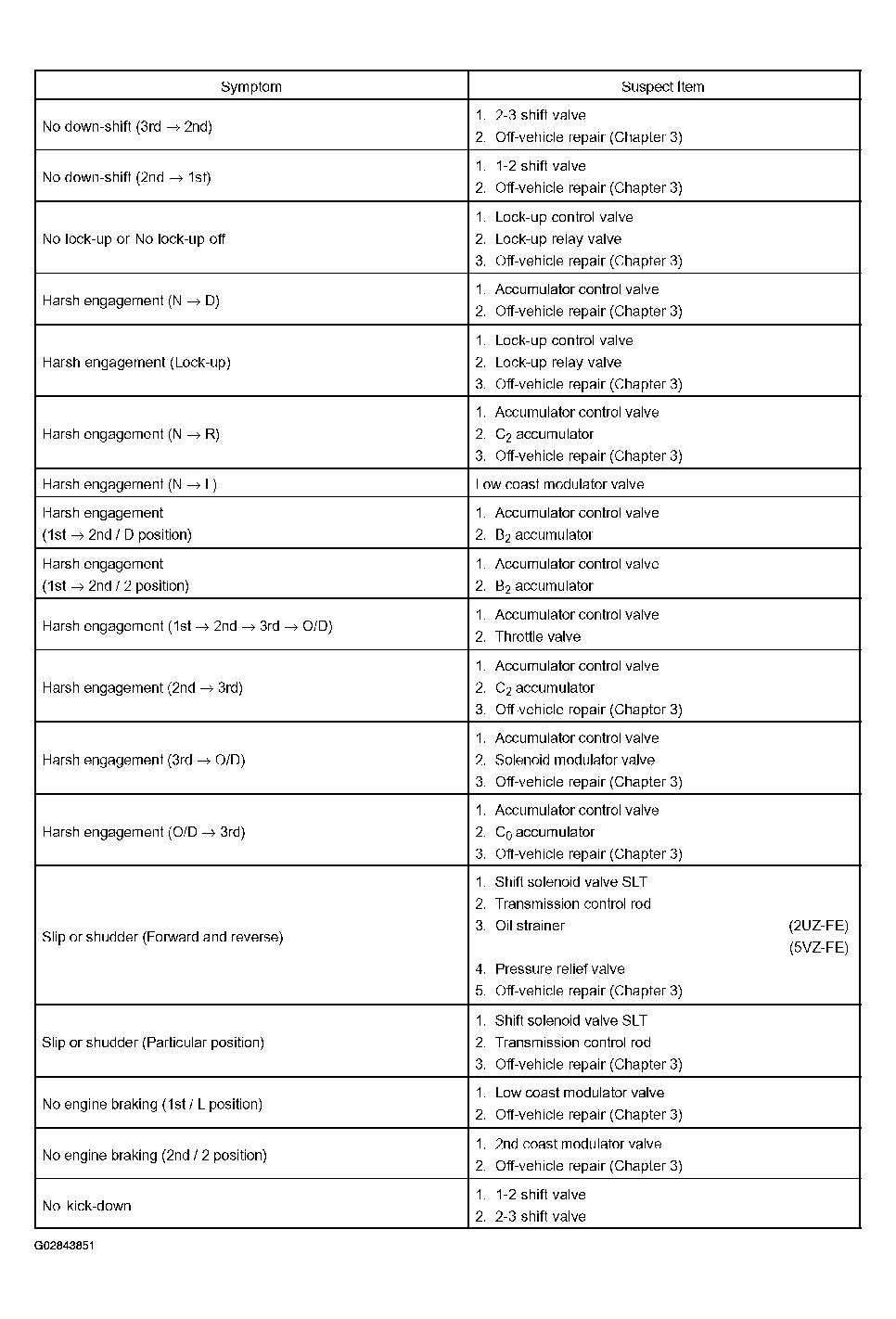

Fig 1: On-Vehicle Repair - Problem Symptoms Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: On-Vehicle Repair - Problem Symptoms Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
