Ignition Switch & Key Unlock Warning System: Inspection

INSPECT IGNITION SWITCH CONTINUITY

Fig 1: Inspecting Ignition Switch Continuity

G02901673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

IGNITION SWITCH CONTINUITY INSPECTION

Switch Position		Tester Connection	Specified Condition
LOCK		-	No Continuity
ACC		2 - 3	Continuity
ON
2 - 3 - 4			Continuity
6 - 7			Continuity
START
1 - 2 - 4			Continuity
6 - 7 - 8			Continuity

If the continuity is not as specified, replace, the switch.

INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY

Fig 2: Inspecting Key Unlock Warning Switch Continuity

G02901674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

KEY UNLOCK WARNING SWITCH CONTINUITY INSPECTION

Switch Position	Tester Connection	Specified Condition
Switch Free (Key Removed)	1 - 2	No Continuity
Switch Pushed (Key Inserted)	1 - 2	Continuity

If the continuity is not as specified, replace the switch.

Key unlock warning system:
1. INSPECT COMBINATION METER OPERATION
1. Disconnect the connectors from the combination meter.
2. Ground terminal 1 ad 2 on the wire harness side connector.

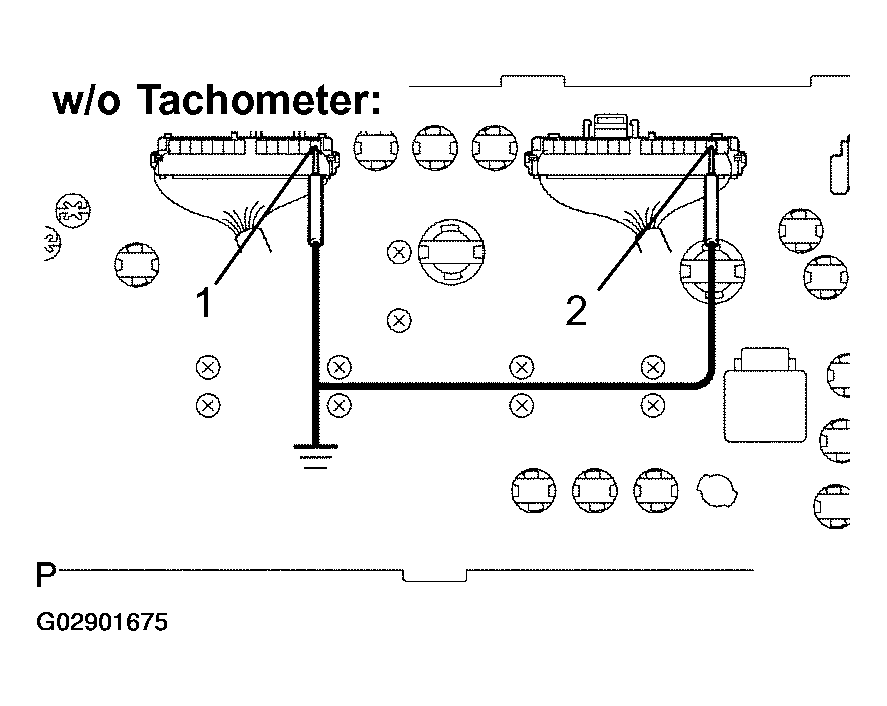

  Fig 3: Inspecting Combination Meter Operation (W/O Tachometer)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 4: Inspecting Combination Meter Operation (W/Tachometer)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the buzzer sounds.
4. Disconnect the negative (-) lead from the body ground to terminal 1 or 2.
5. Check that the buzzer stops sounding.
If the operation is not as specified, replace the combination meter.
INSPECT COMBINATION METER (See COMBINATION METER )
