Combination Meter: Circuit

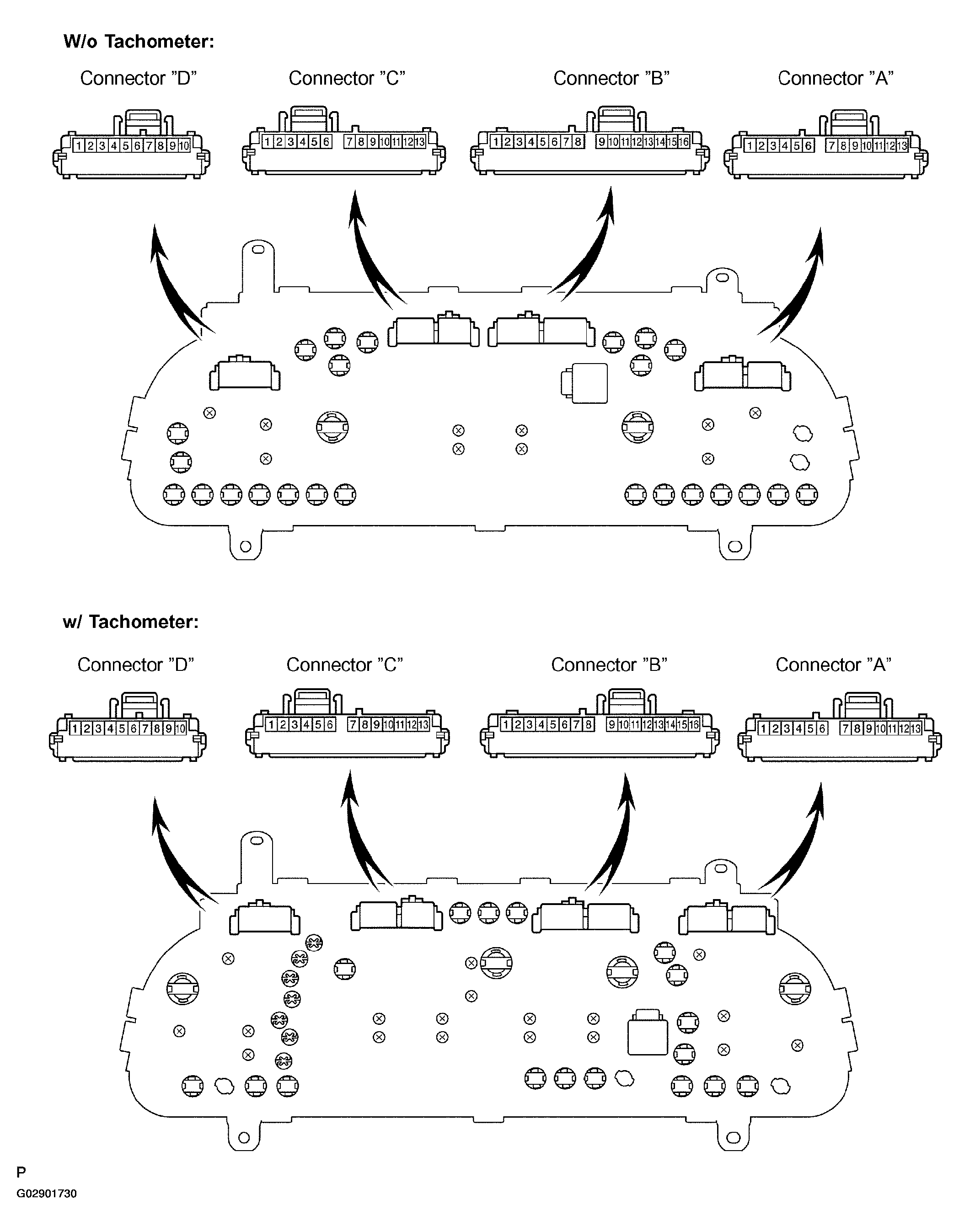

Fig 1: Identifying Combination Meter Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

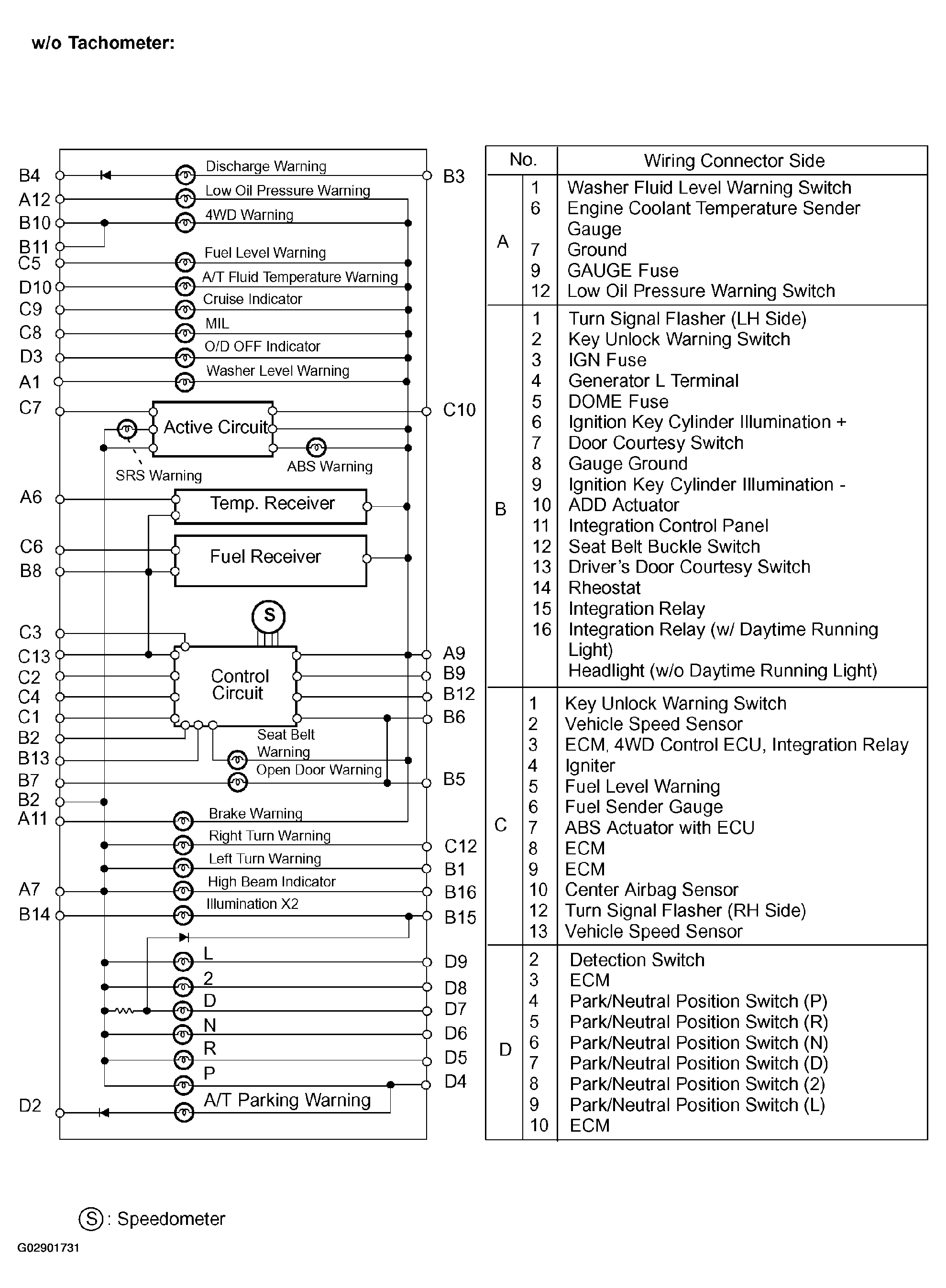

Fig 2: Combination Meter Circuit Diagram - W/O Tachometer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

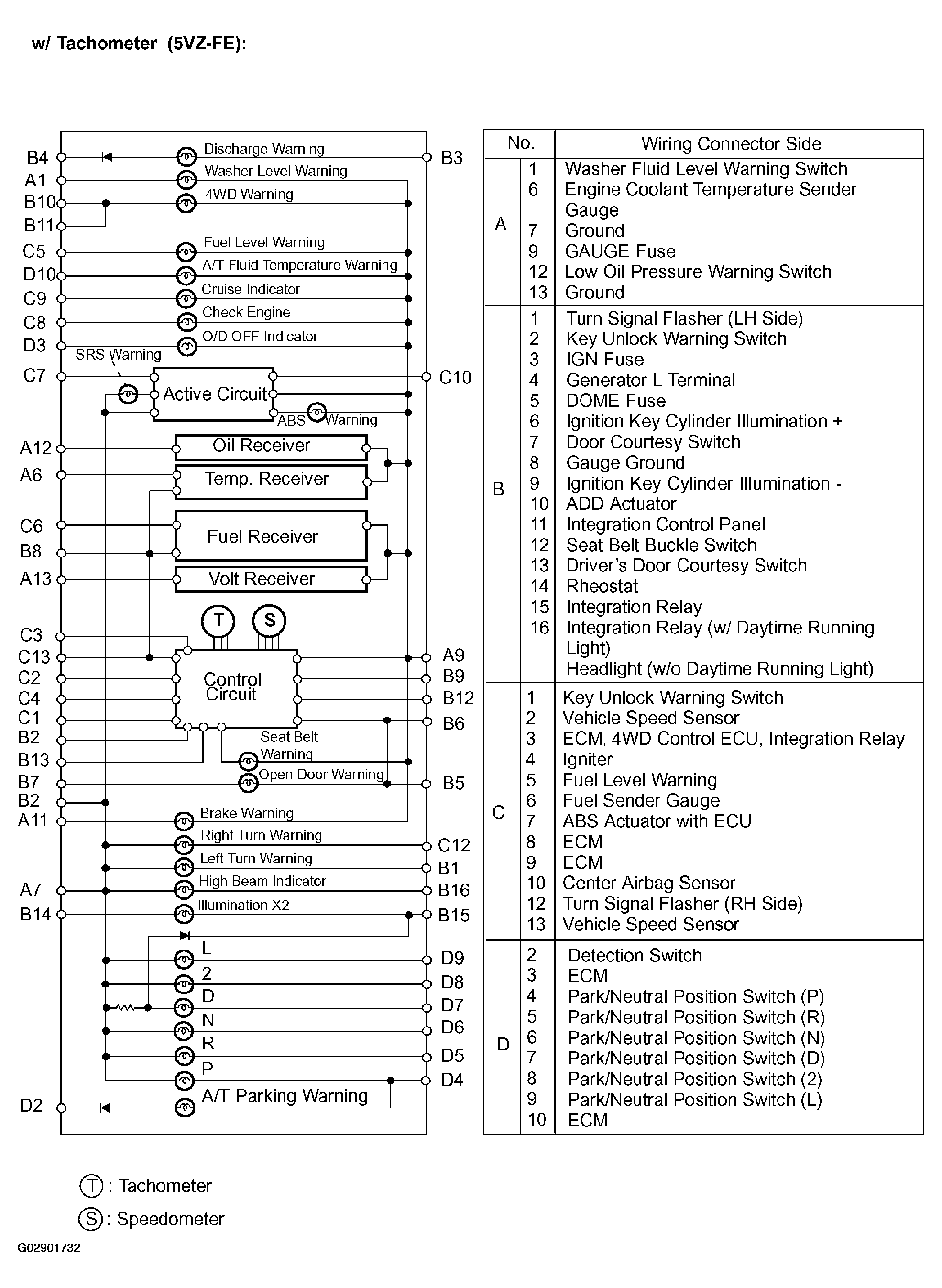

Fig 3: Combination Meter Circuit Diagram - W/Tachometer (5VZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

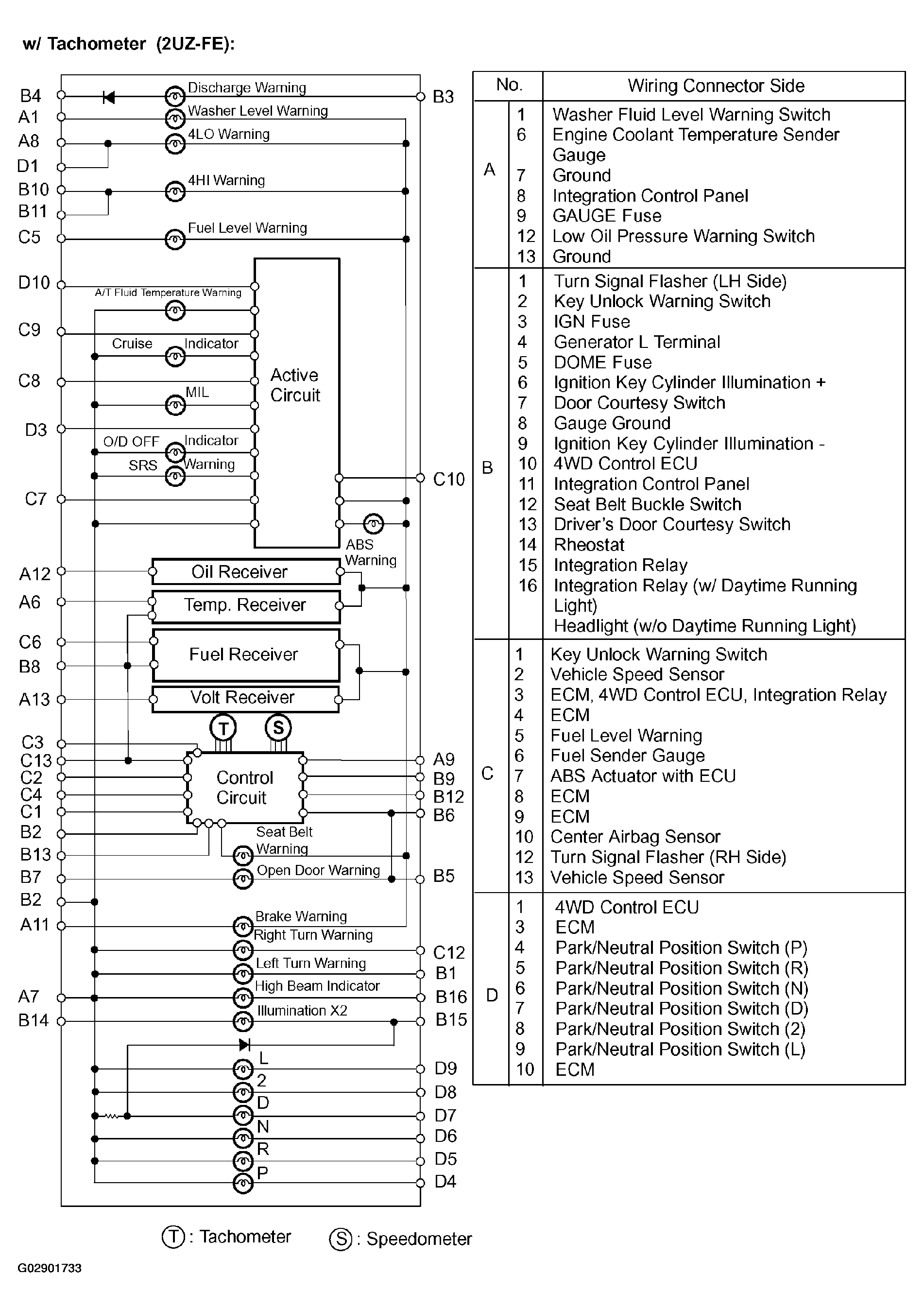

Fig 4: Combination Meter Circuit Diagram - W/Tachometer (2UZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
