Auto Up/Down Function Does Not Operate: Wiring Diagram

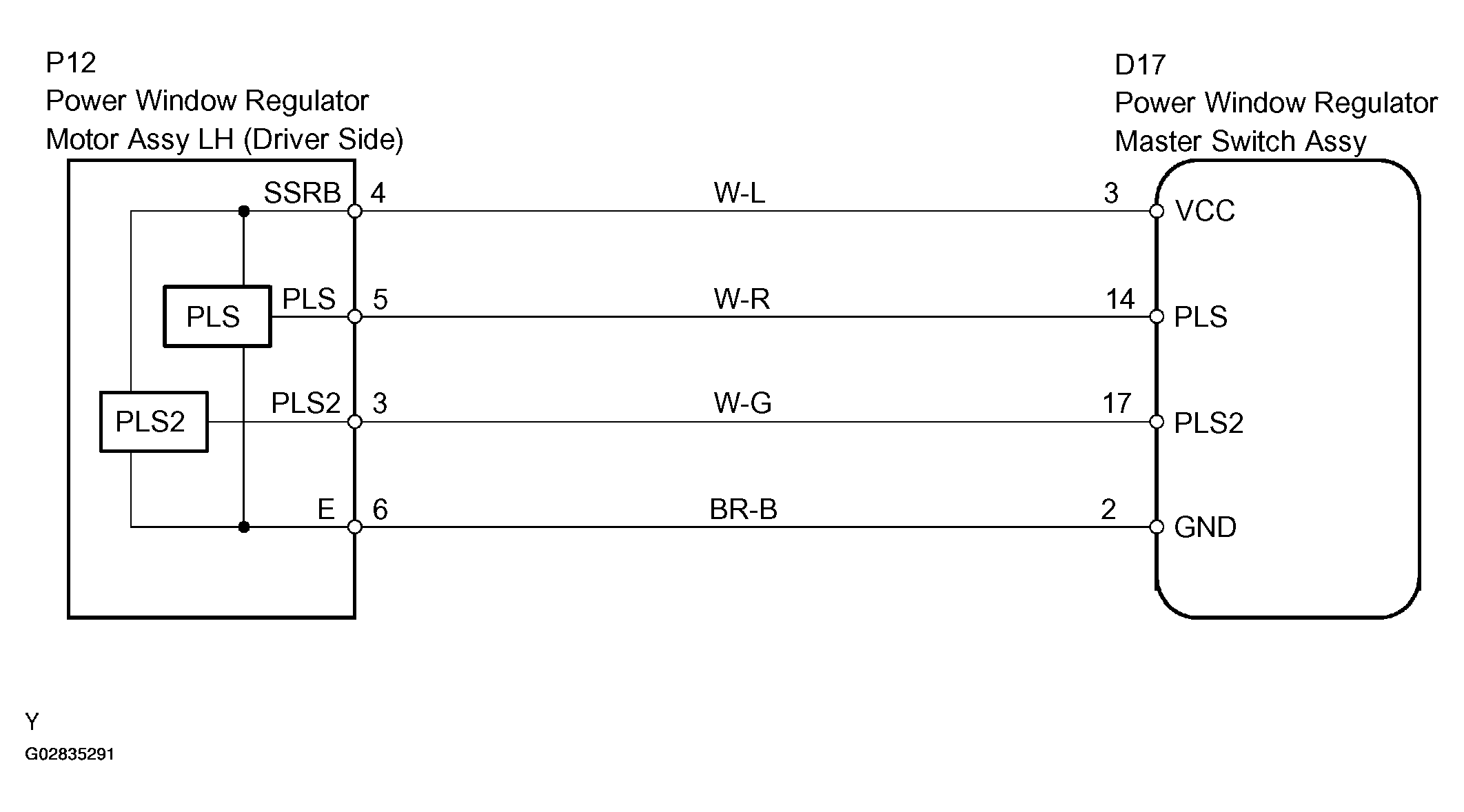

Fig 1: Wiring Diagram
G02835291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
