Remote Up/Down Function Does Not Operate: Wiring Diagram

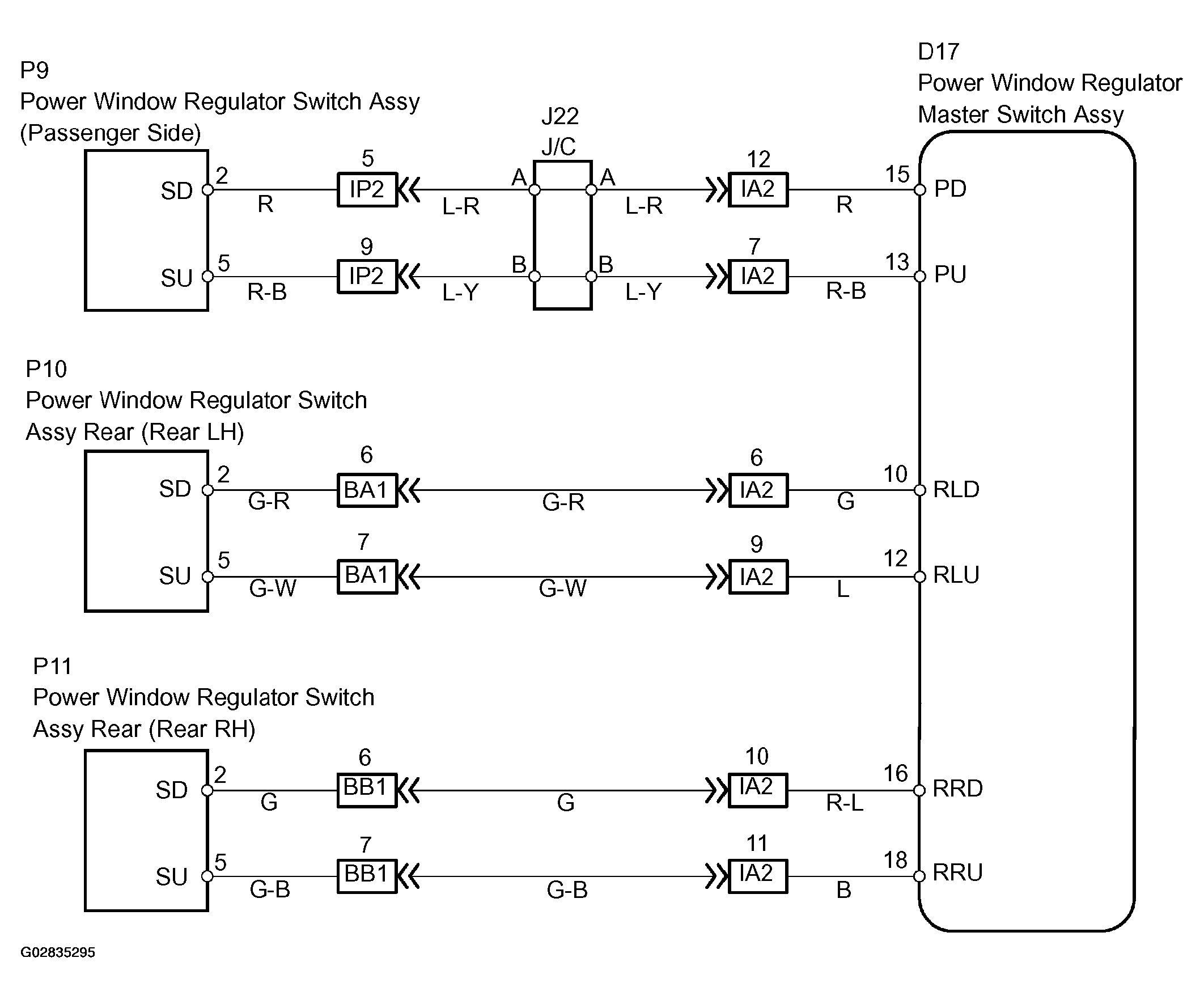

Fig 1: Wiring Diagram

G02835295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
