Inner Rear View Mirror ASSY: Replacement

NOTE: The installation procedures are the removal procedures in reverse order.
  1. REMOVE INNER REAR VIEW MIRROR ASSY
    1. Pushing portions (a) as indicated in the illustration, remove the cover.

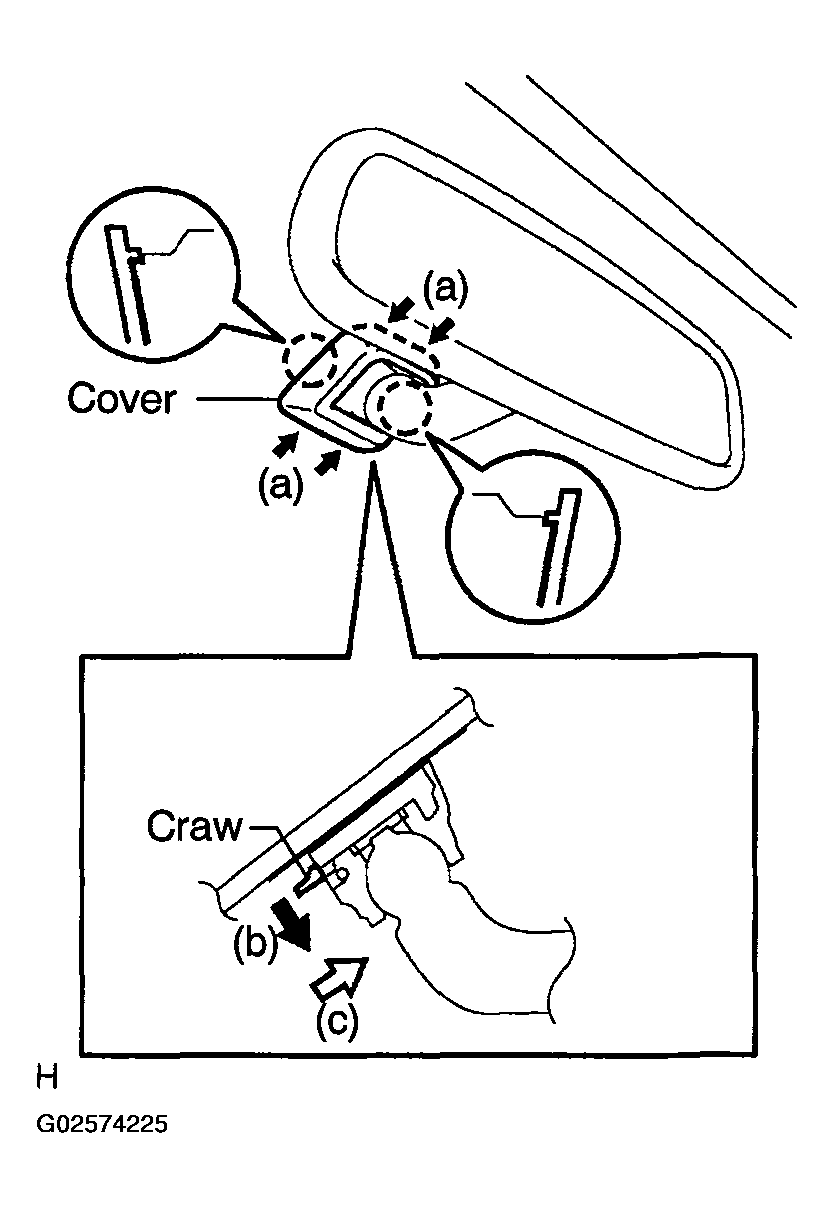

      2. Fig 1: Removing Inner Rear View Mirror Assy
      G02574225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pushing the claw in the direction (b), slide the mirror assy in the direction (c) to remove it.
  2. REMOVE INNER REAR VIEW MIRROR ASSY (ELECTRO CHROMIC MIRROR INNER MIRROR)
    1. Remove the mirror cover.
    2. Disconnect the connector.
    3. Remove the mirror assy as shown in the illustration.
    Fig 2: Removing Mirror Assy
    G02574226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
