Quarter Window Glass: Components

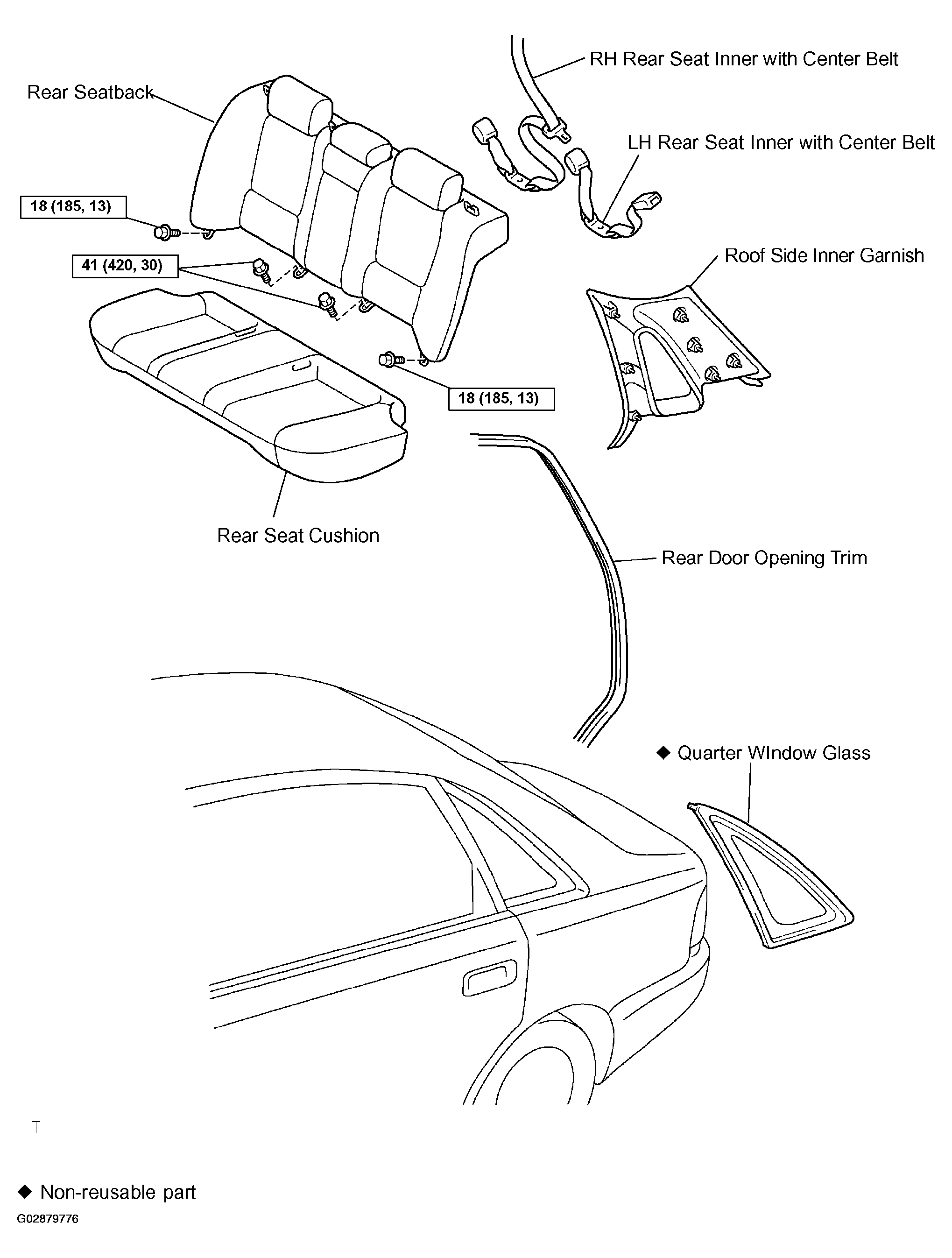

Fig 1: Identifying Quarter Window Glass Components
G02879776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
