Quarter Window Glass: Installation

1. Using a knife, cut away any rough areas on the body.

   HINT:

   Leave as much of the adhesive on the body as possible.

2. Clean the cut surface of the adhesive with a shop rag saturated in cleaner.

   HINT:

   Even if all the adhesive has been removed, clean the body.

1. Using a scraper, remove the adhesive sticking to the glass.
2. Clean the glass with cleaner.

Fig 1: Identifying Adhesive

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a brush, coat Primer M to the exposed part of body on the vehicle side.

Fig 2: Coating Primer M To Exposed Part Of Body On Vehicle Side

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a brush or sponge, coat the edge of the glass and contact surface with Primer G.
2. When the primer is applied by mistake to the area other than the specified, wipe it off with a clean shop rag before the primer dries.

Fig 3: Coating Edge Of Glass And Contact Surface With Primer G

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Cut off the tip of the cartridge nozzle.

   Part No. 08850-00801 or equivalent

   HINT:

   After cutting off the tip, use all adhesive within the time described in TEMPERATURE AND TACKFREE TIME FOR APPLYING ADHESIVE  .

   TEMPERATURE AND TACKFREE TIME FOR APPLYING ADHESIVE



   Temperature	Tackfree time
   35 °C (95 °F)	15 minutes
   20°C (68 °F)	100 minutes
   5 °C (41 °F)	8 hours

2. Load the cartridge into the sealer gun.

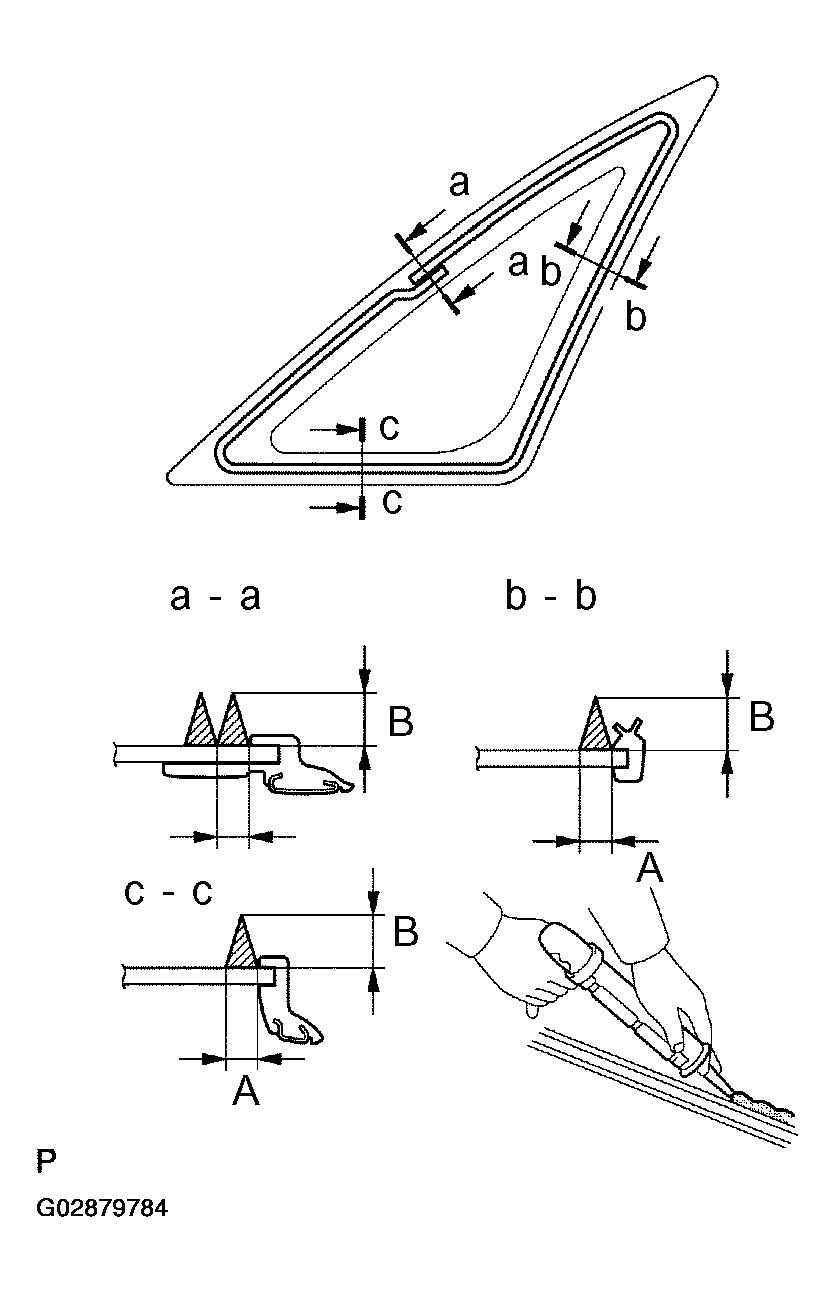

3. Coat the glass with adhesive as shown in Fig 4 .

   A: 8.0 mm (0.315 in.)

   B: 13.5 mm (0.531 in.)

   Fig 4: Applying Adhesive

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the glass to the body.
2. Hold the glass in place securely with a protective tape or equivalent until the adhesive hardens.
