Combination Meter: Components

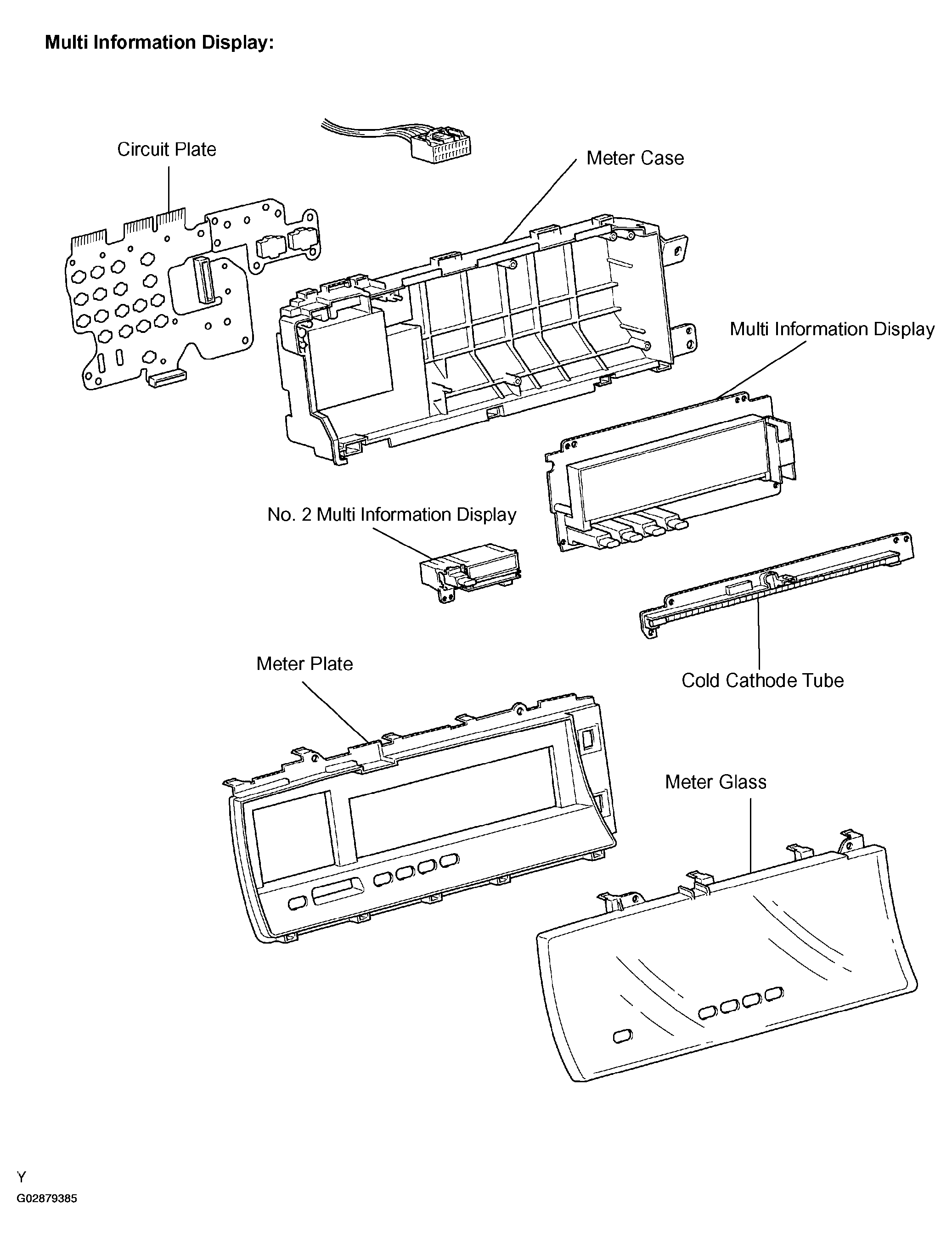

Fig 1: Identifying Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

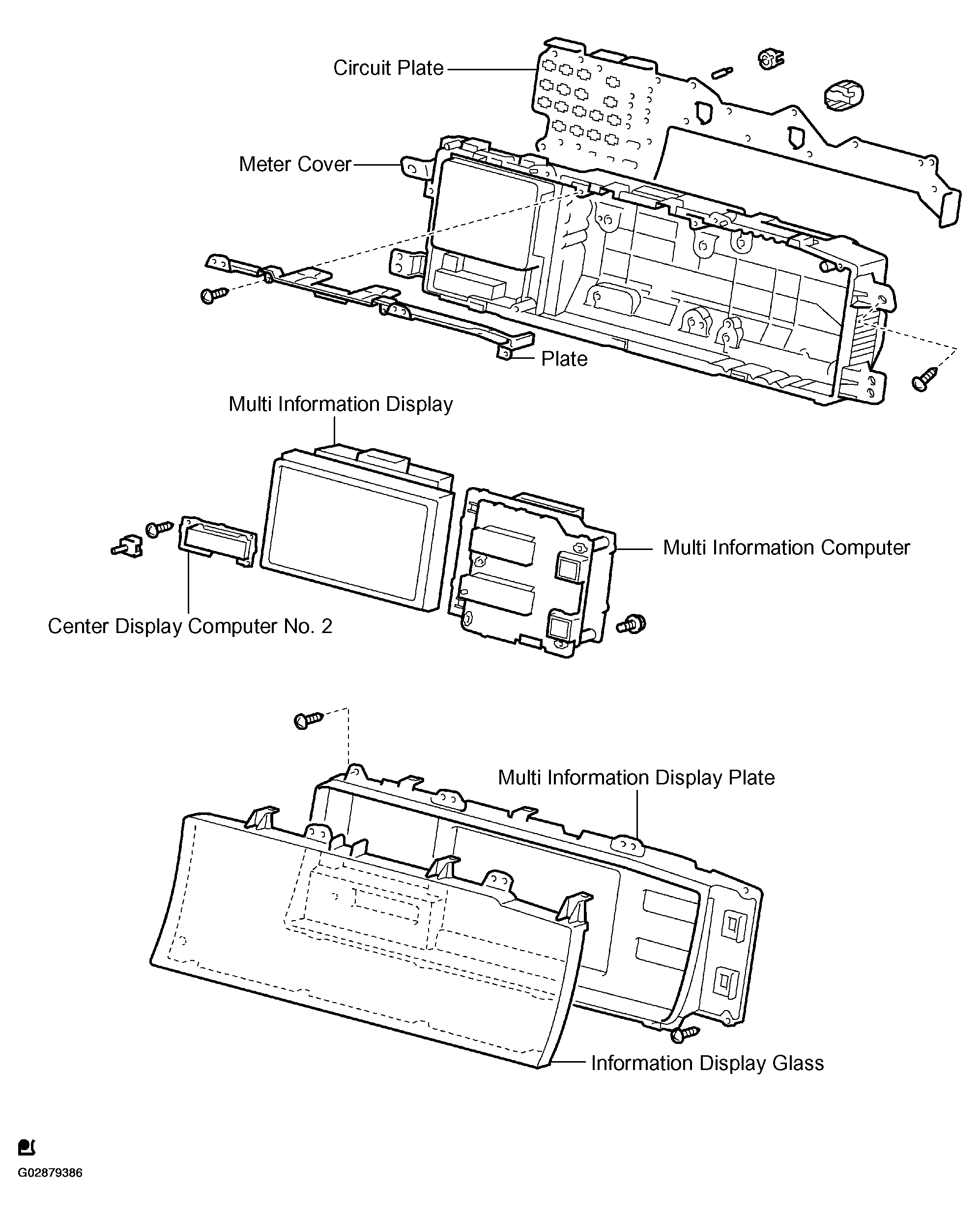

Fig 2: Identifying Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

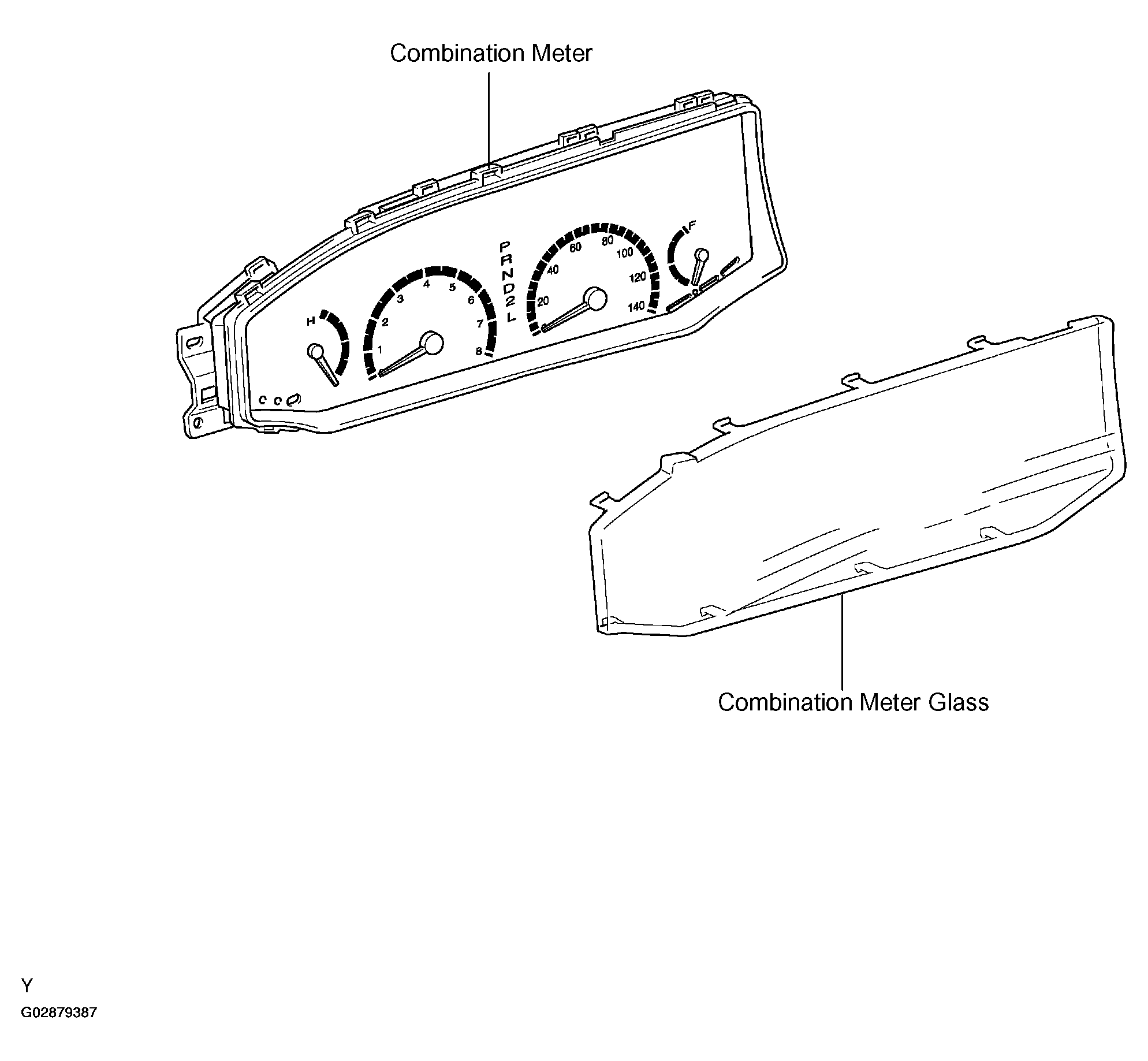

Fig 3: Identifying Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
