Fuel Pressure Regulator: Components

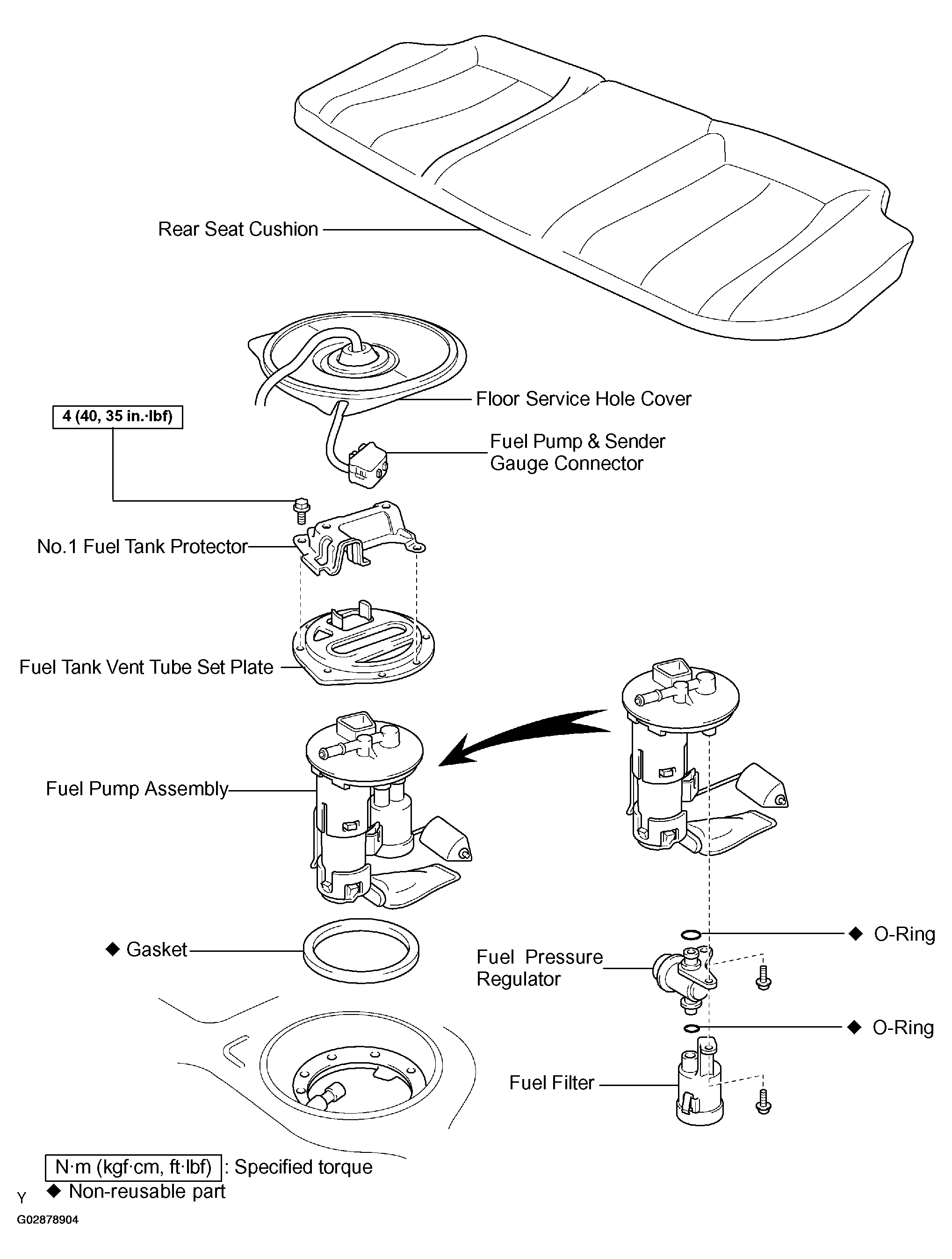

Fig 1: Identifying Fuel Pressure Regulator Components

G02878904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
