Toyota
›
2004
›
Avalon XL
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Diagnostics
›
Circuit Tests
›
ECM Power Source Circuit
›
Wiring Diagram

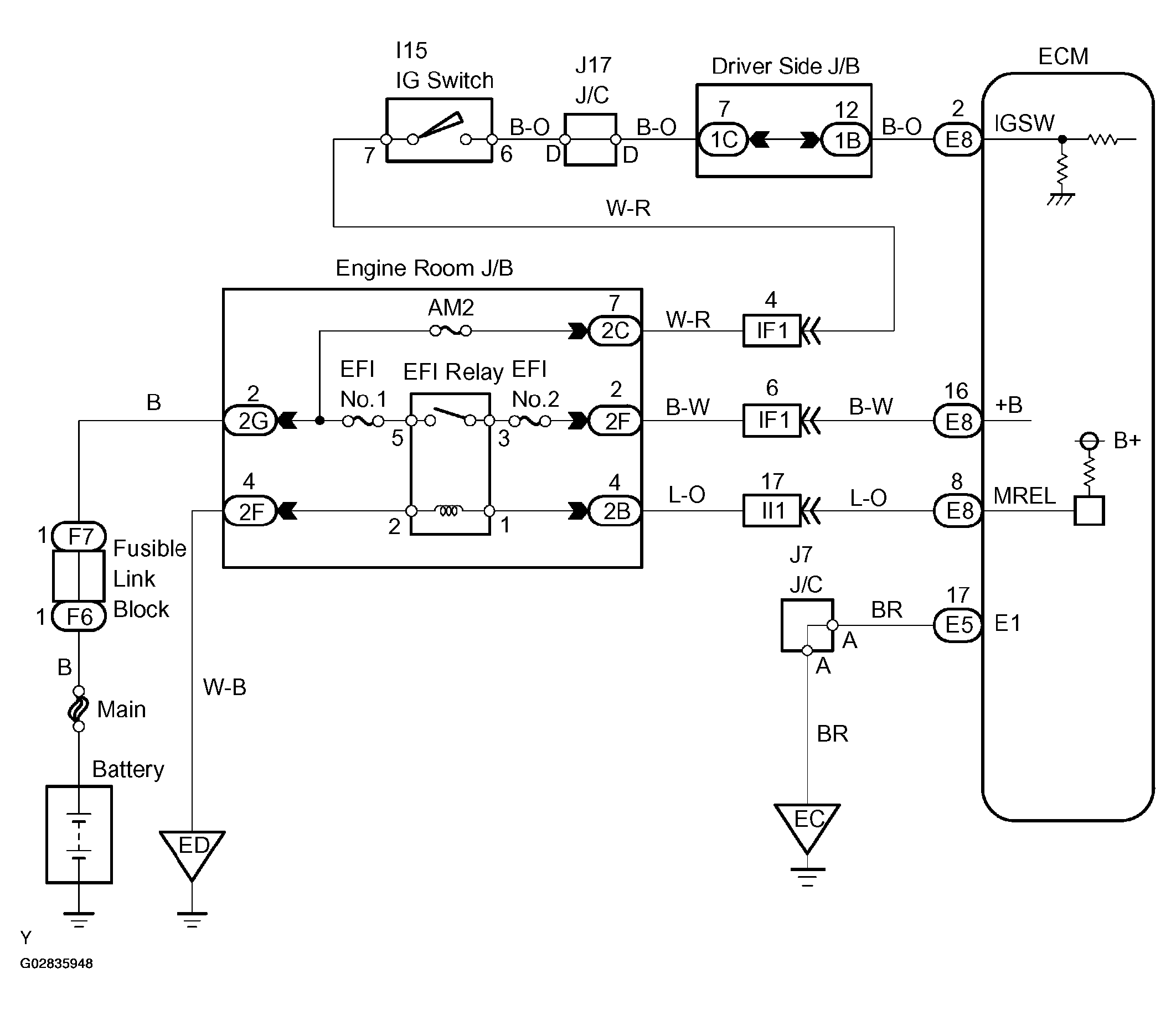

ECM Power Source Circuit: Wiring Diagram
Fig 1: Identifying ECM Power Source Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
