Toyota
›
2004
›
Avalon XL
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Diagnostics
›
Circuit Tests
›
IACV Control Circuit
›
Wiring Diagram
IACV Control Circuit: Wiring Diagram

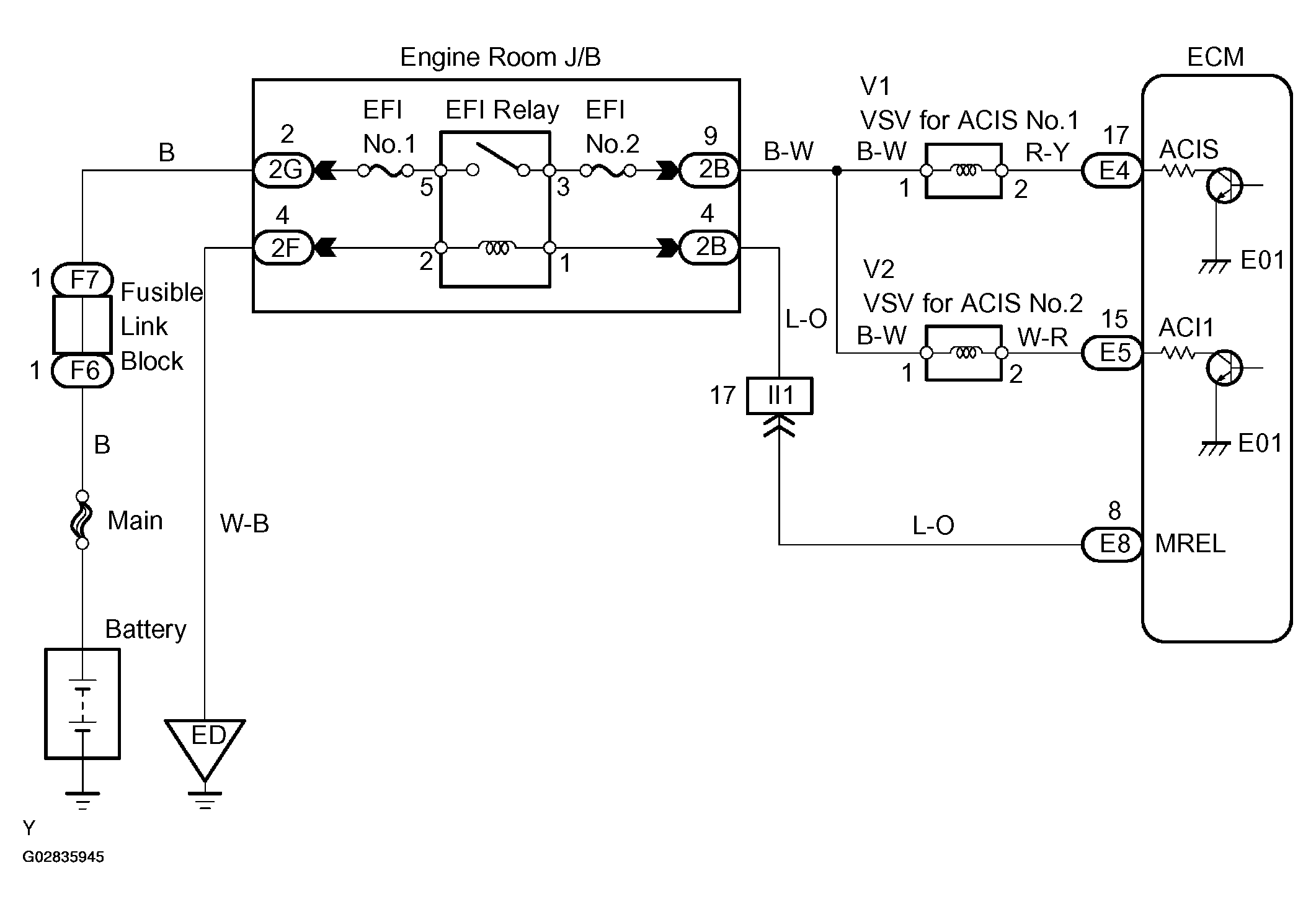

Fig 1: Identifying IACV Control Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
