Problem Symptoms Table

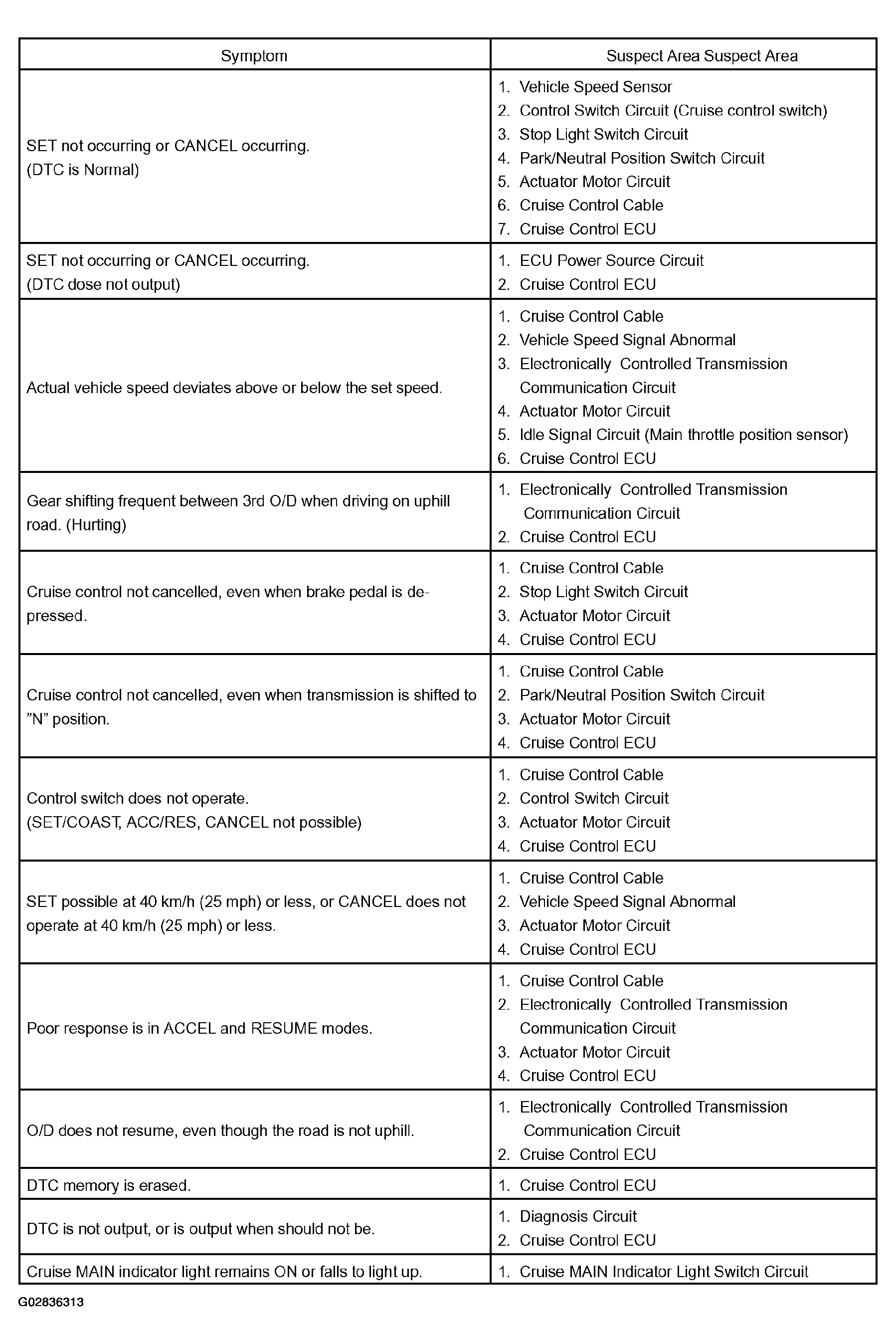

Fig 1: Problem Symptoms Chart
G02836313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC Description
DTC 11, 15  Actuator Motor Circuit
DTC 12  Actuator Magnetic Clutch Circuit
DTC 14  Actuator Mechanical Malfunction
DTC 21  Open in Vehicle Speed Sensor Circuit
DTC 23  Vehicle Speed Signal Abnormal
DTC 32  Control Switch Circuit (Cruise Control Switch)
DTC 51  Idle Signal Circuit
