Driver Door Control System - Diagnostics
›
Problem Symptoms Table
›
Power Mirror Control System:
Power Mirror Control System:

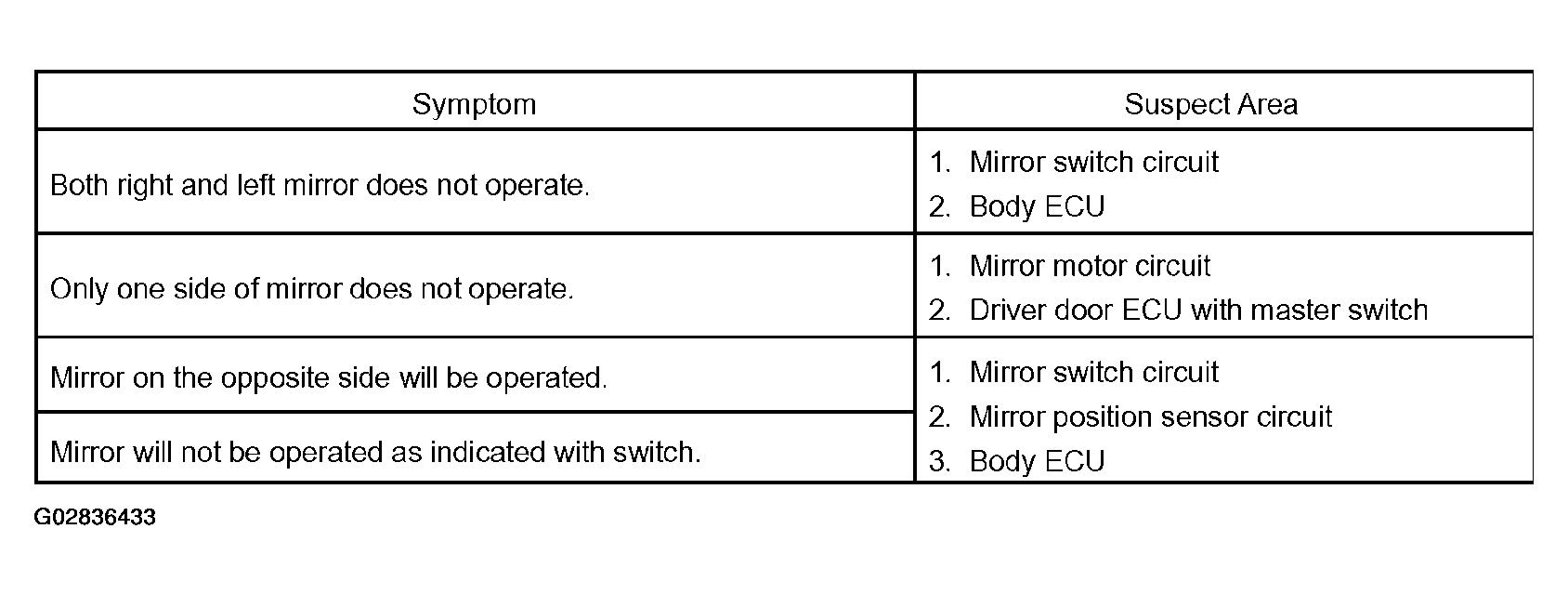

Fig 1: Power Mirror Control System - Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
