Outside Rearview Mirror: Components

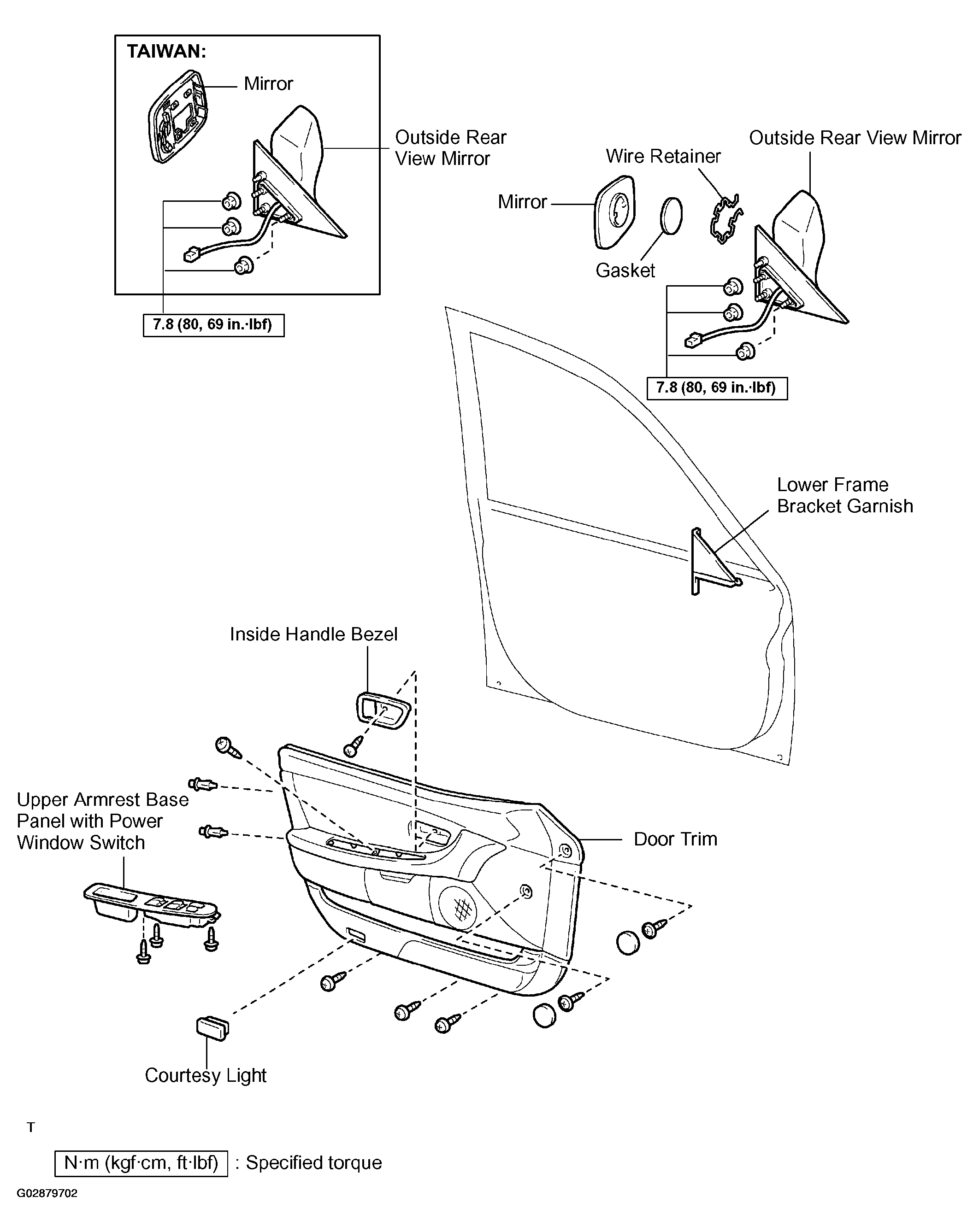

Fig 1: Identifying Outside Rear View Mirror Components
G02879702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
