Power Window Control System: Location

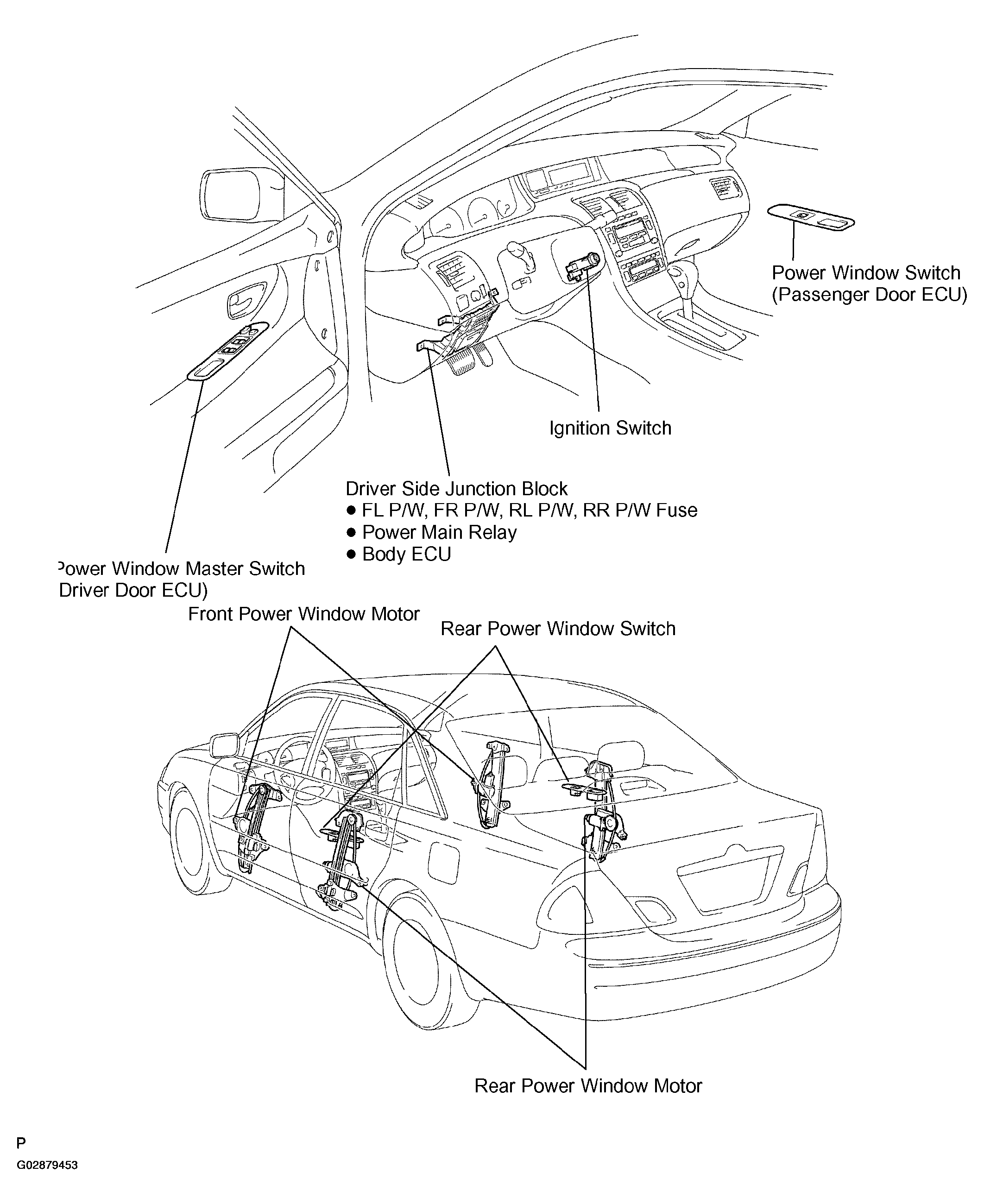

Fig 1: Locating Components
G02879453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
