Power Window Control System: Troubleshooting

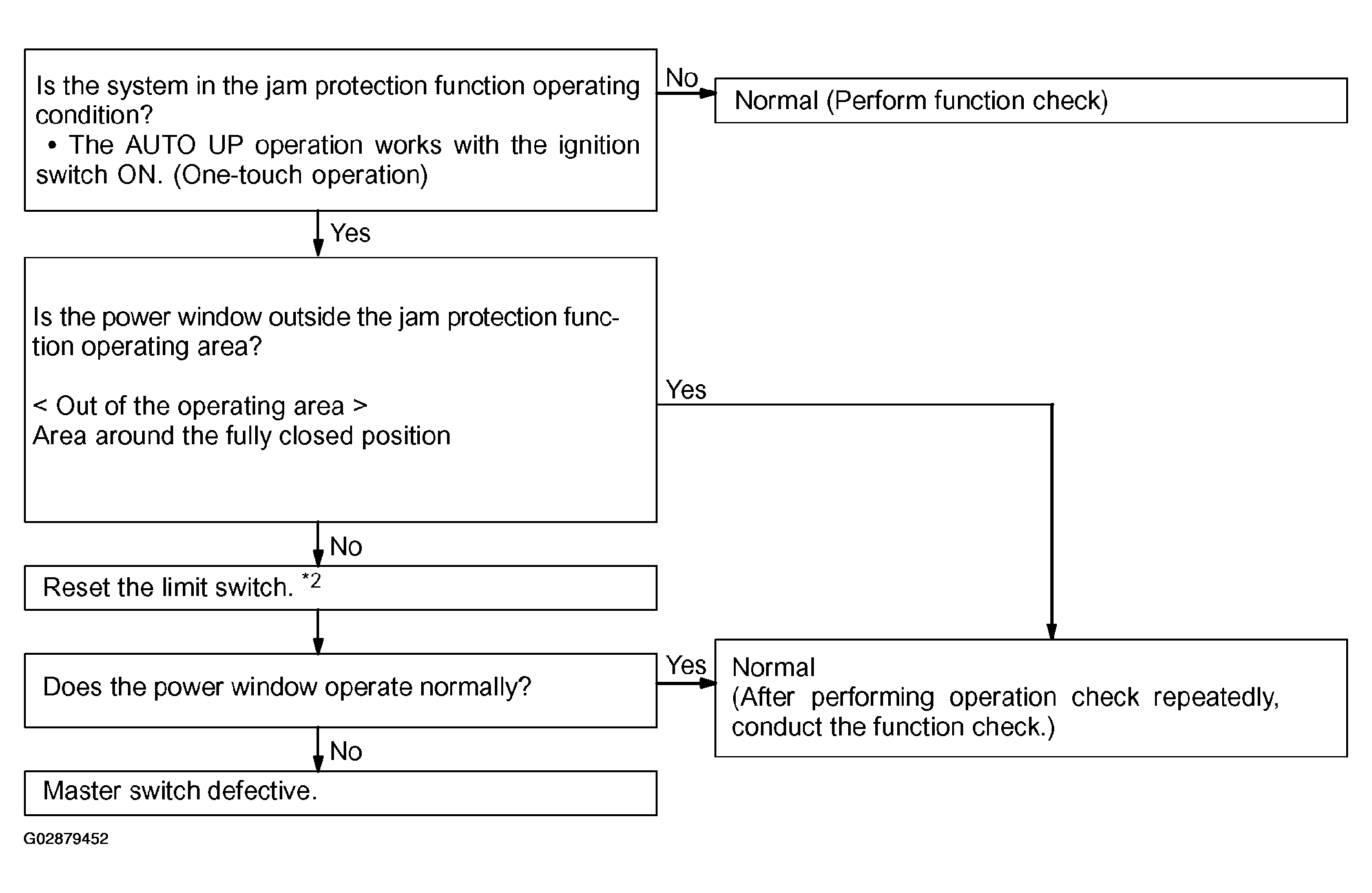

Fig 1: Troubleshooting Flow Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

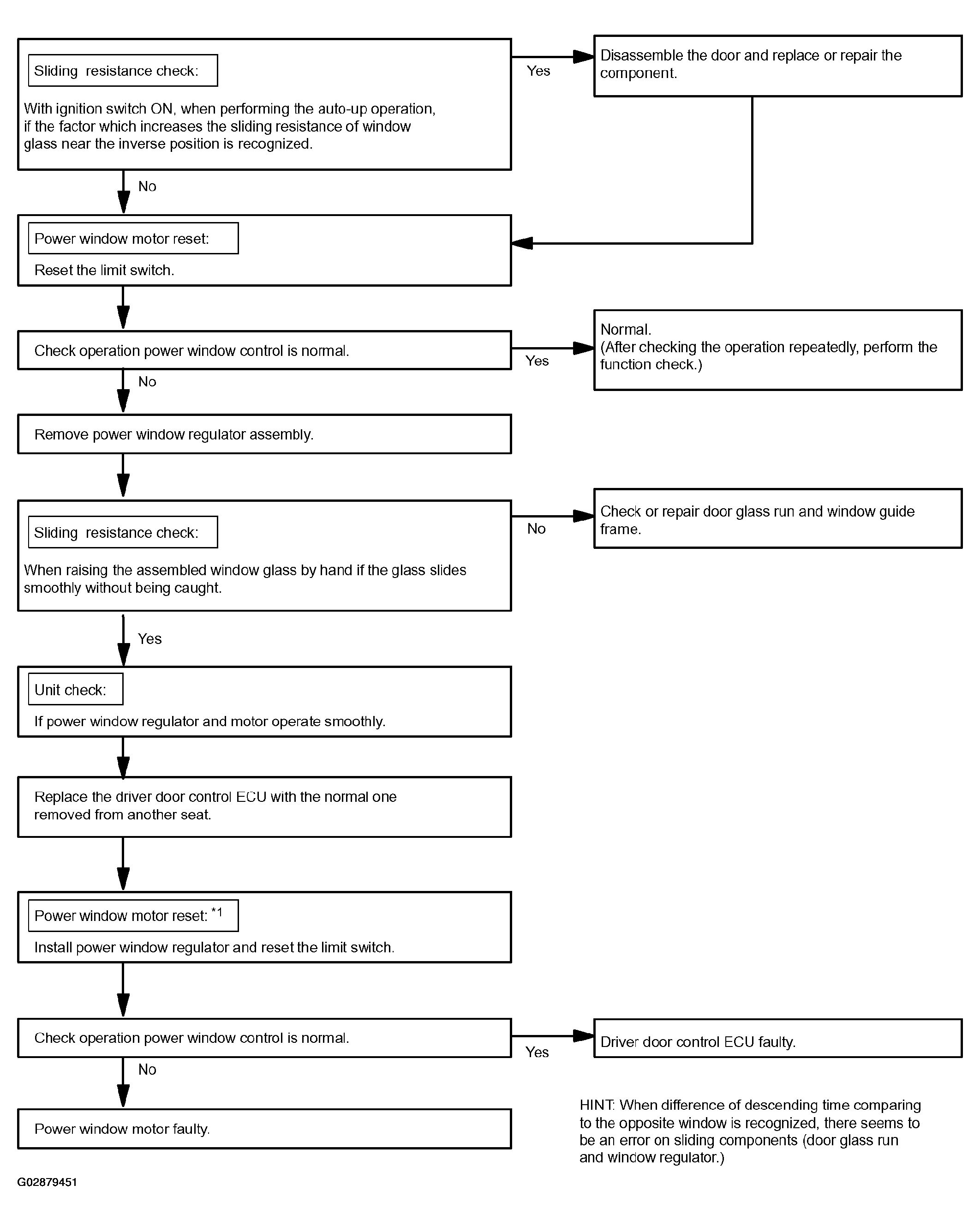

Fig 2: Troubleshooting Flow Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
