Combination Meter: Location

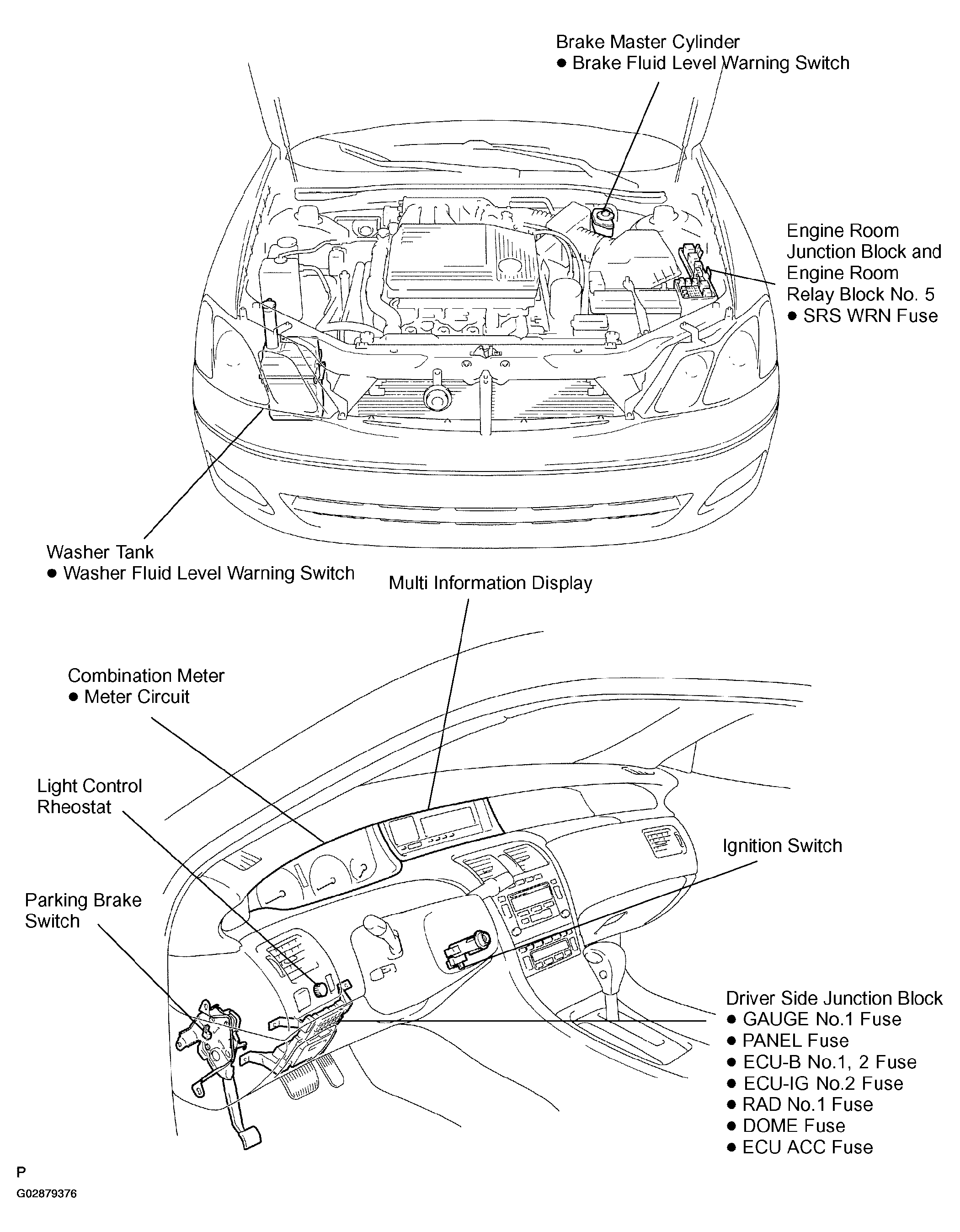

Fig 1: Locating Components (1 Of 2)
G02879376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

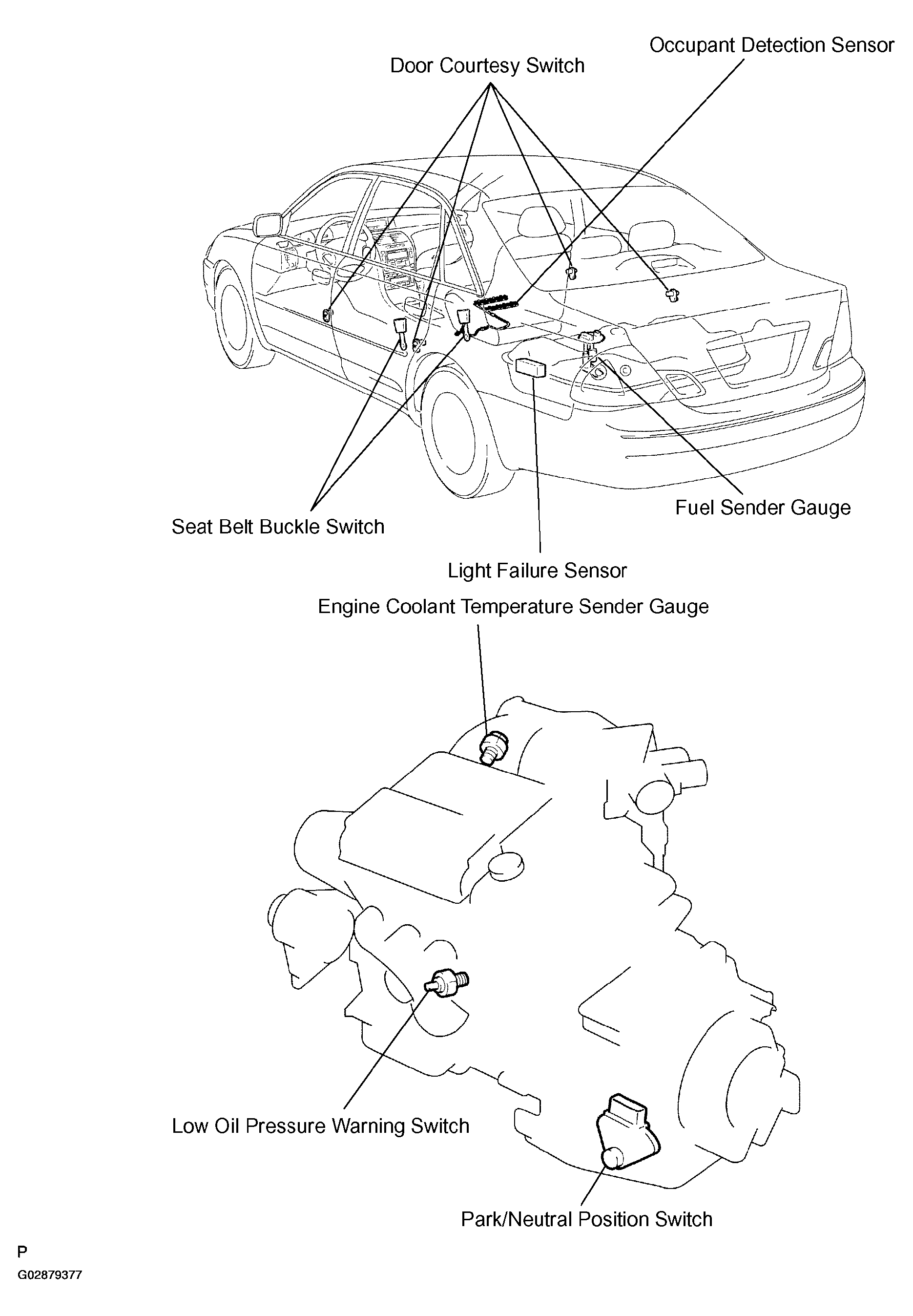

Fig 2: Locating Components (2 Of 2)
G02879377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
