Parts Layout And Schematic Drawing: Drawing

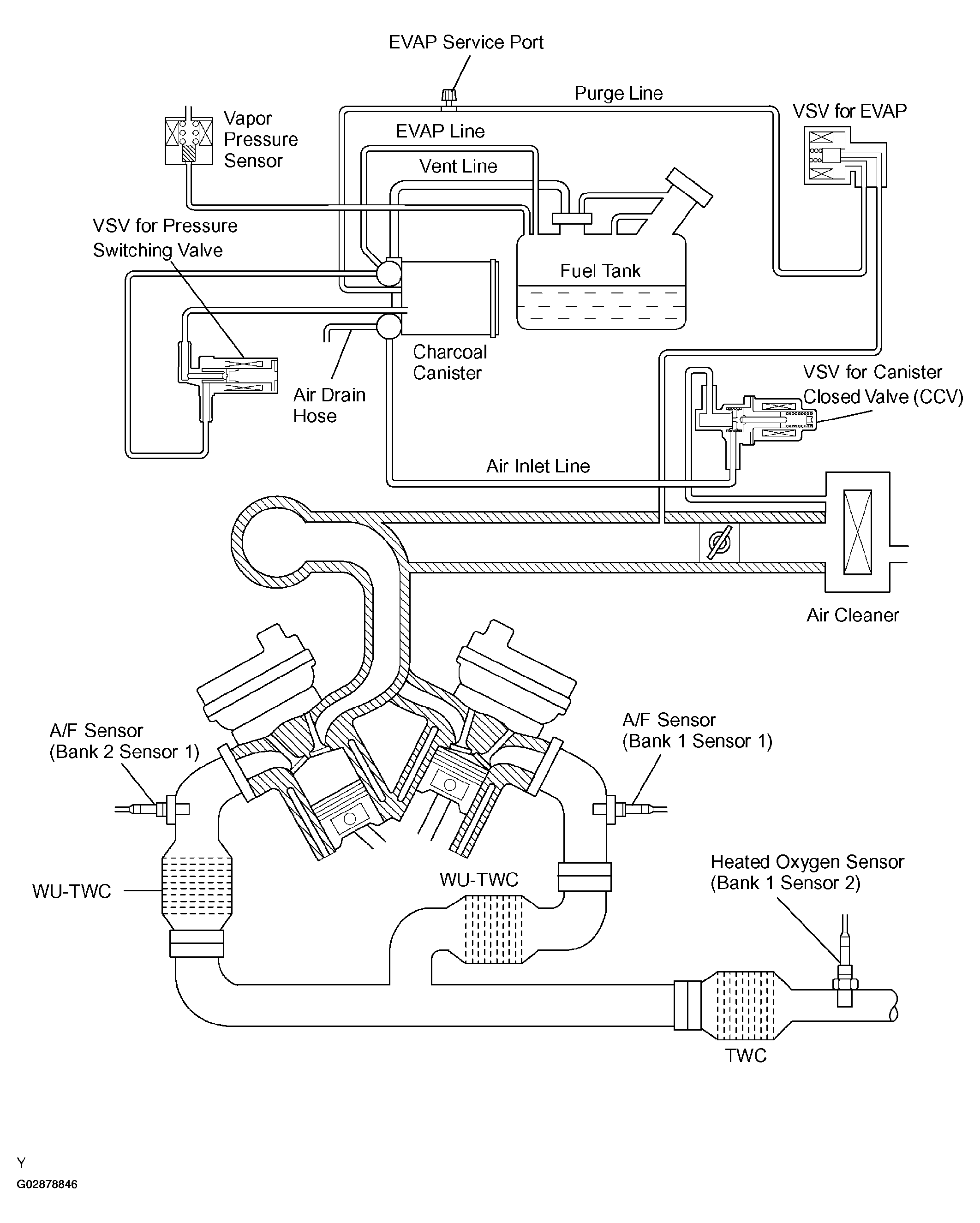

Fig 1: Schematic Drawing - Emission Control
G02878846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
