Oil Pump: Components

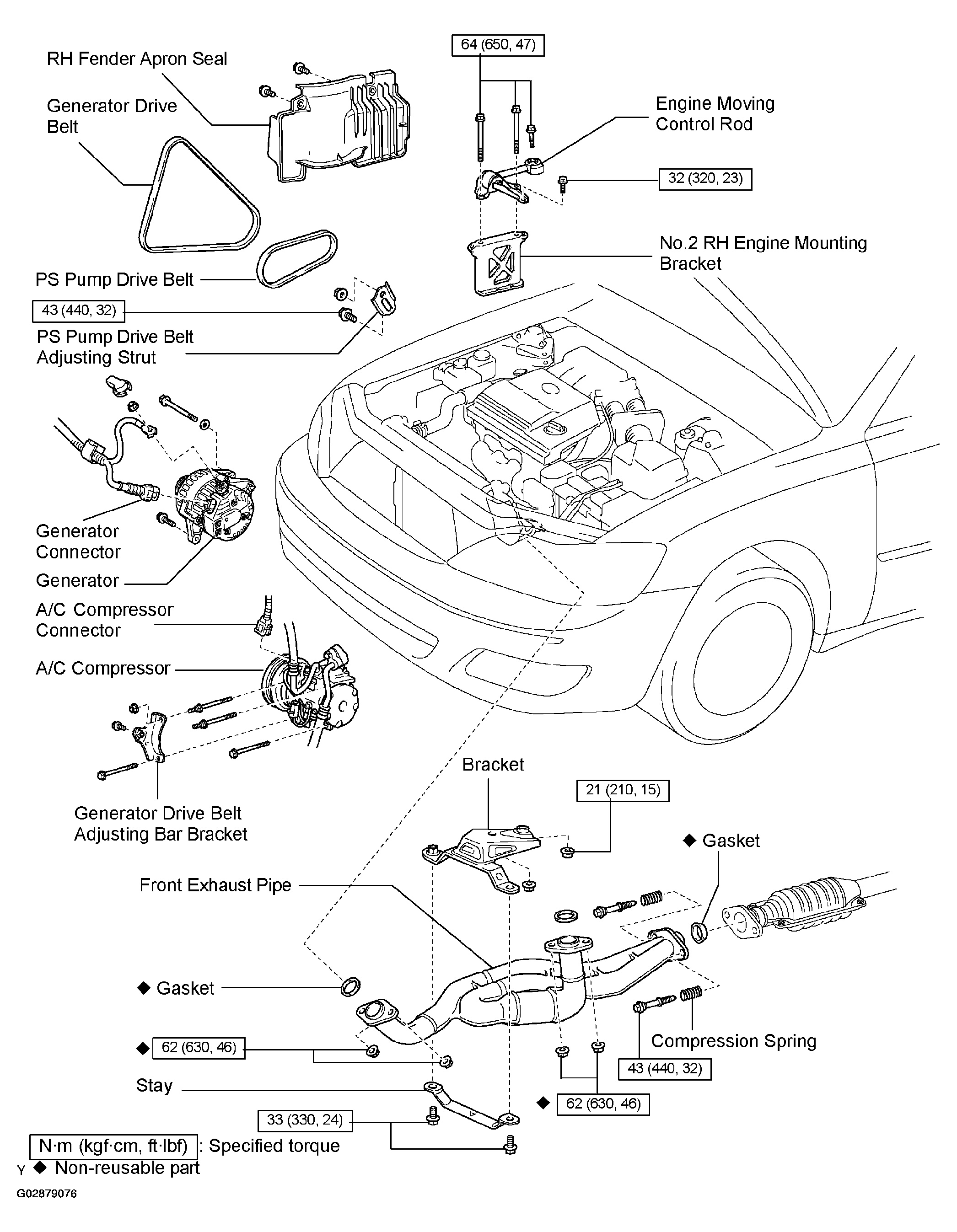

Fig 1: Identifying Components (1 Of 3)
G02879076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

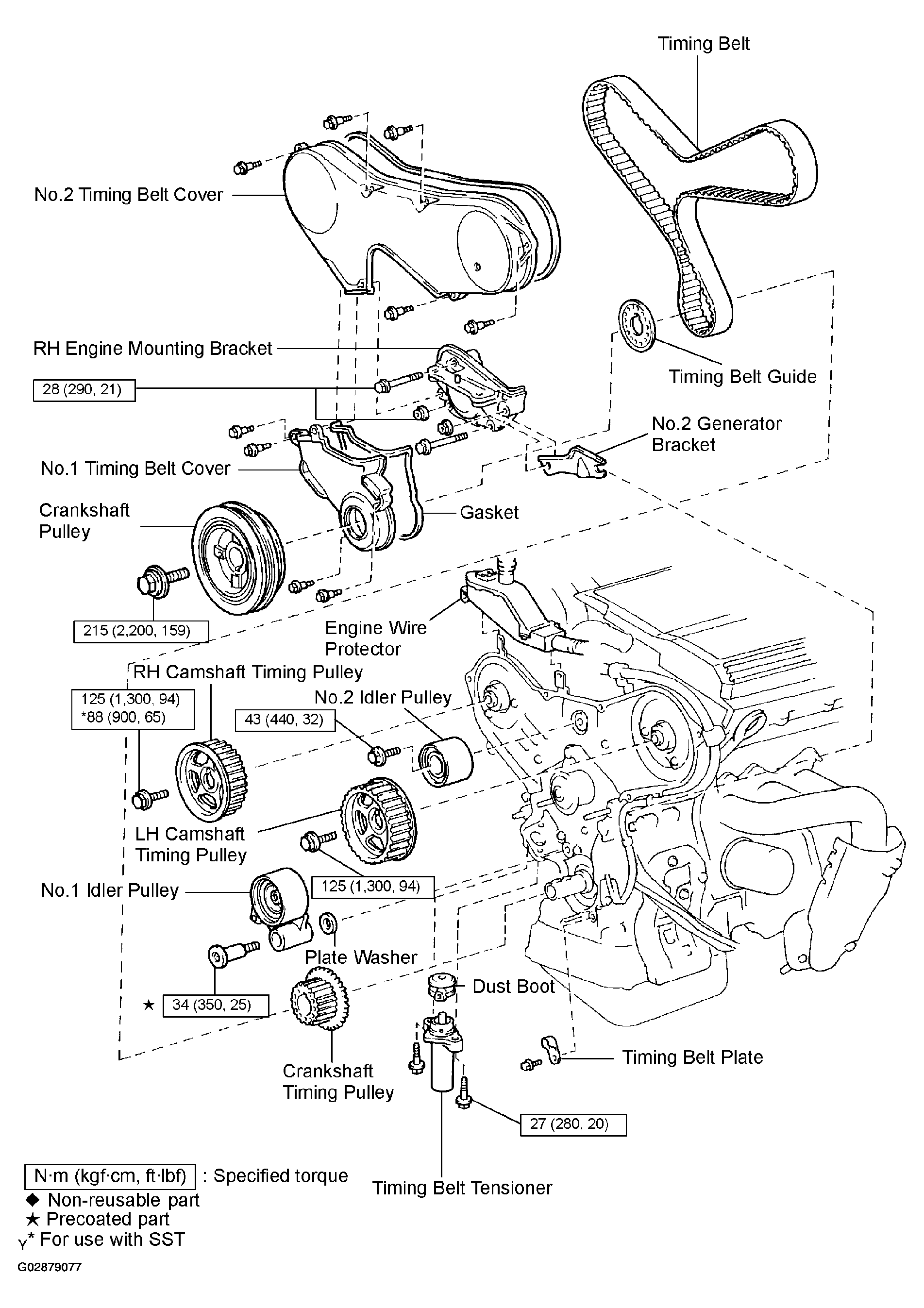

Fig 2: Identifying Components (2 Of 3)
G02879077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

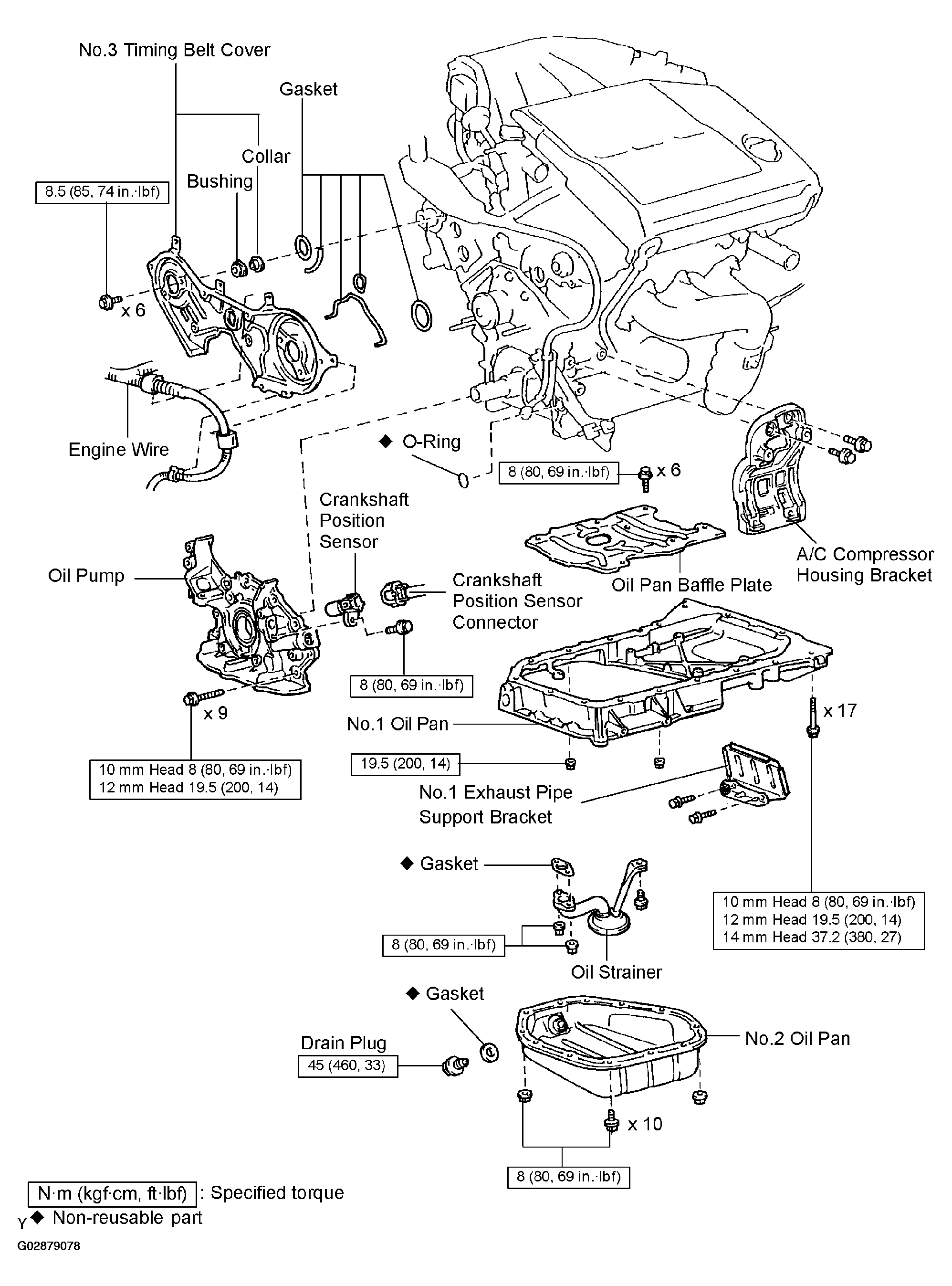

Fig 3: Identifying Components (3 Of 3)
G02879078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

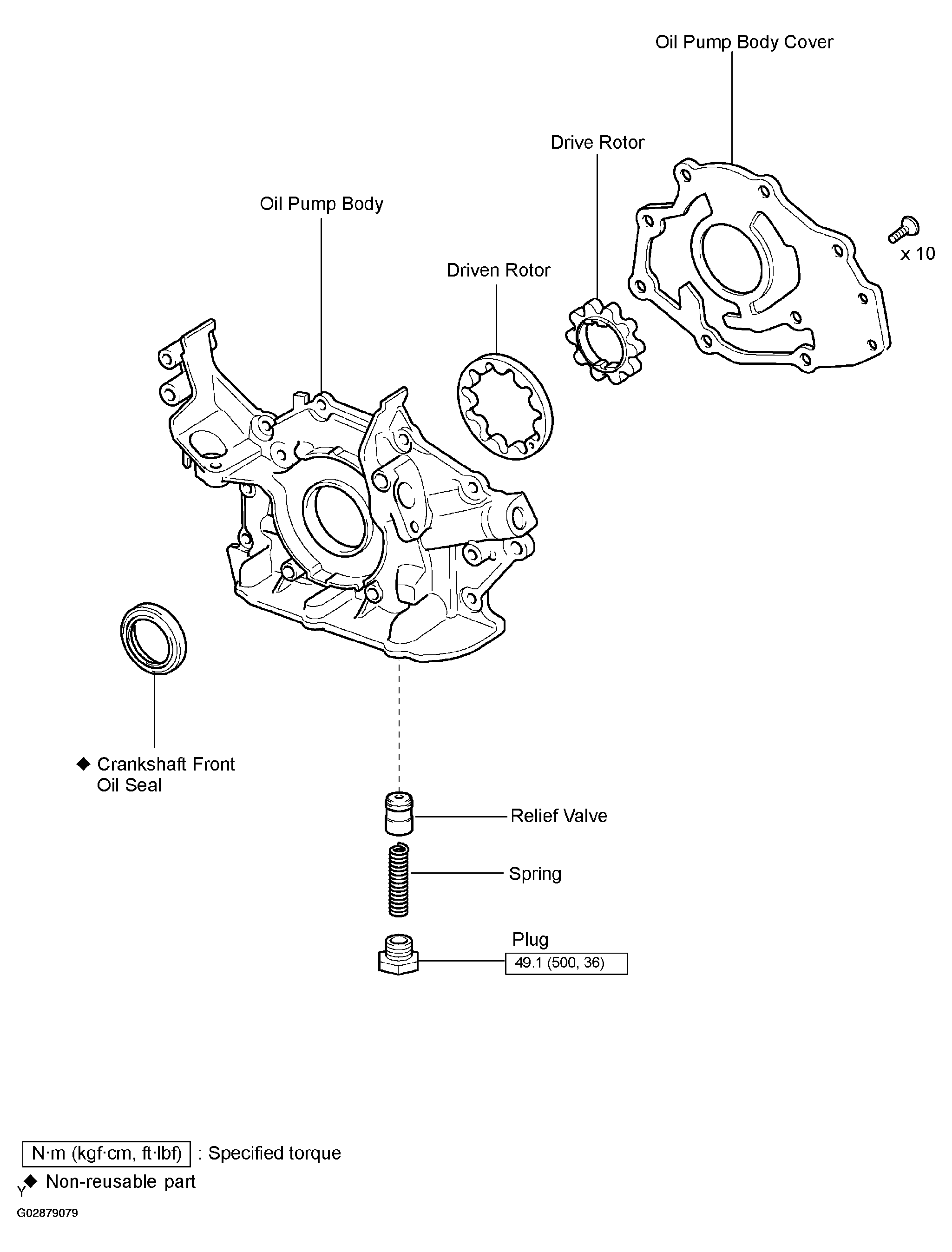

Fig 4: Identifying Oil Pump Components
G02879079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
