Inspect Oil Control Valve Resistance
- Remove the V-bank cover.
- Disconnect the oil control valve connector.

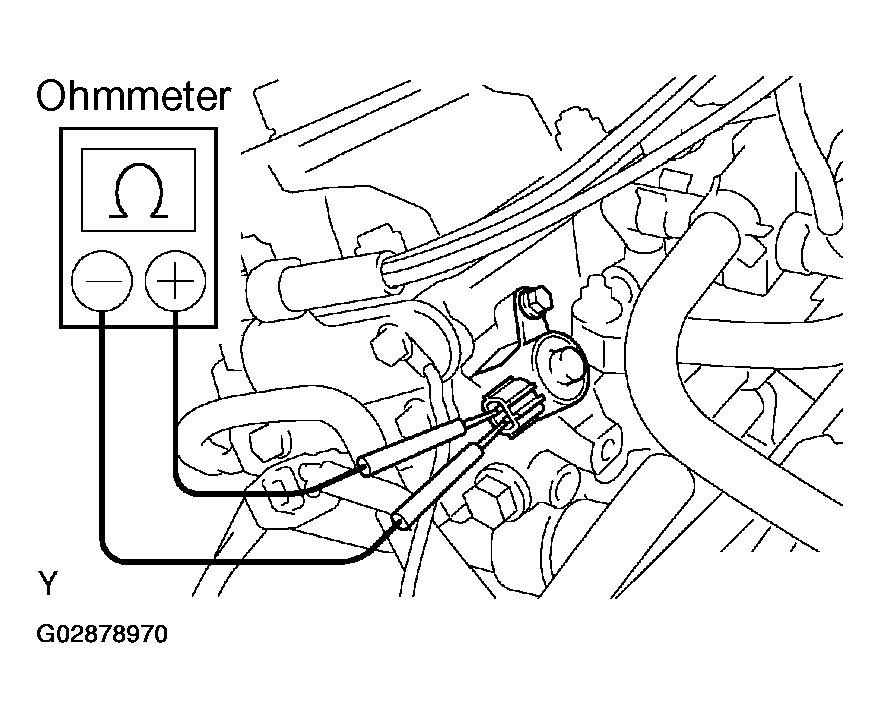

- Using an ohmmeter, measure the resistance between the terminals.
Resistance: 6.9 - 7.9 Ω at 20°C (68°F)
If the resistance is not as specified, replace the valve.
- Reconnect the oil control valve connector.
- Reinstall the V-bank cover.
