Engine Controls - Diagnostics
›
Circuit Tests
›
Starter Signal Circuit
›
Wiring Diagram

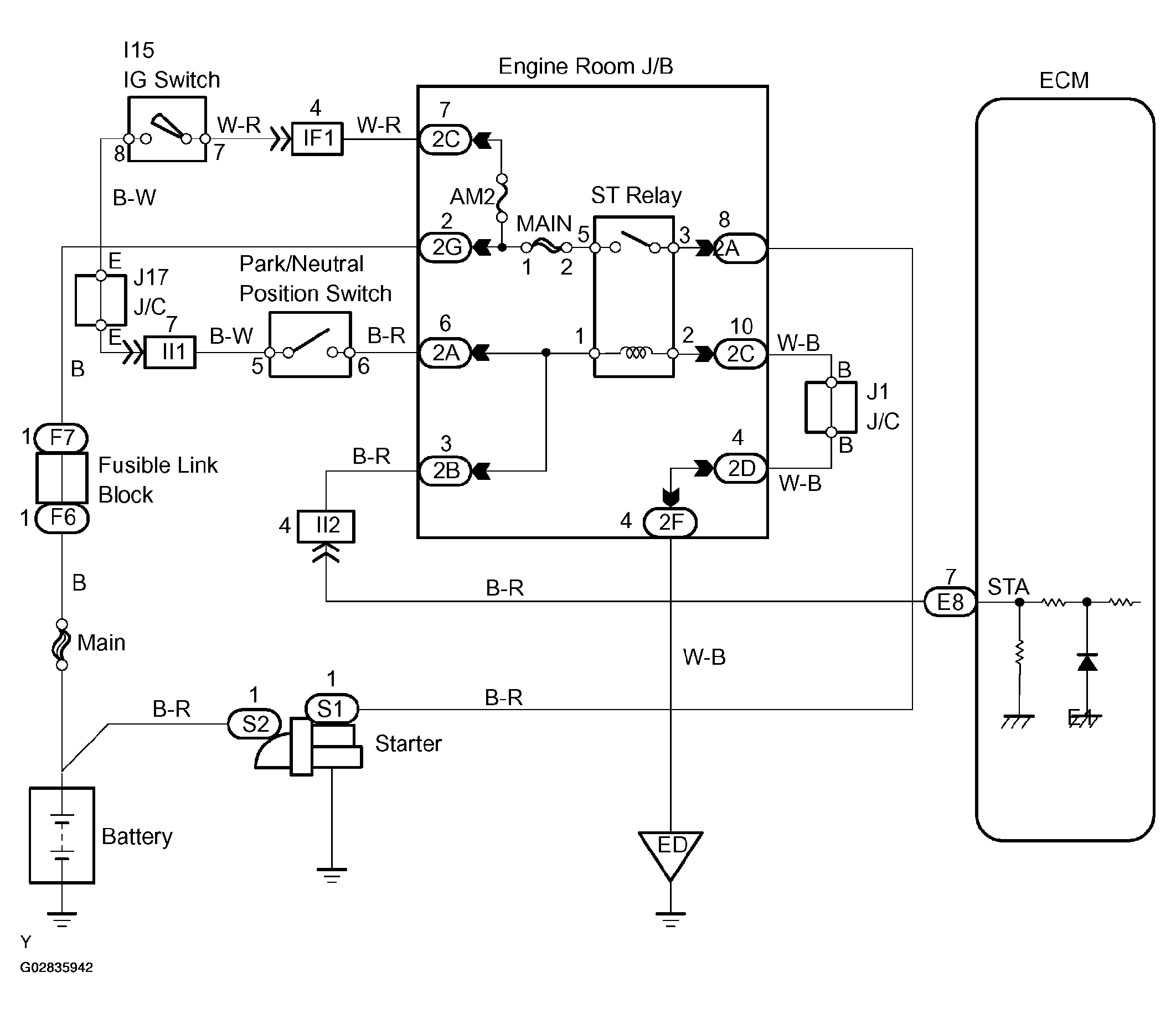

Starter Signal Circuit: Wiring Diagram
Fig 1: Identifying Starter Signal Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
