DTC P0110: Intake Air Temperature Circuit
›
Wiring Diagram

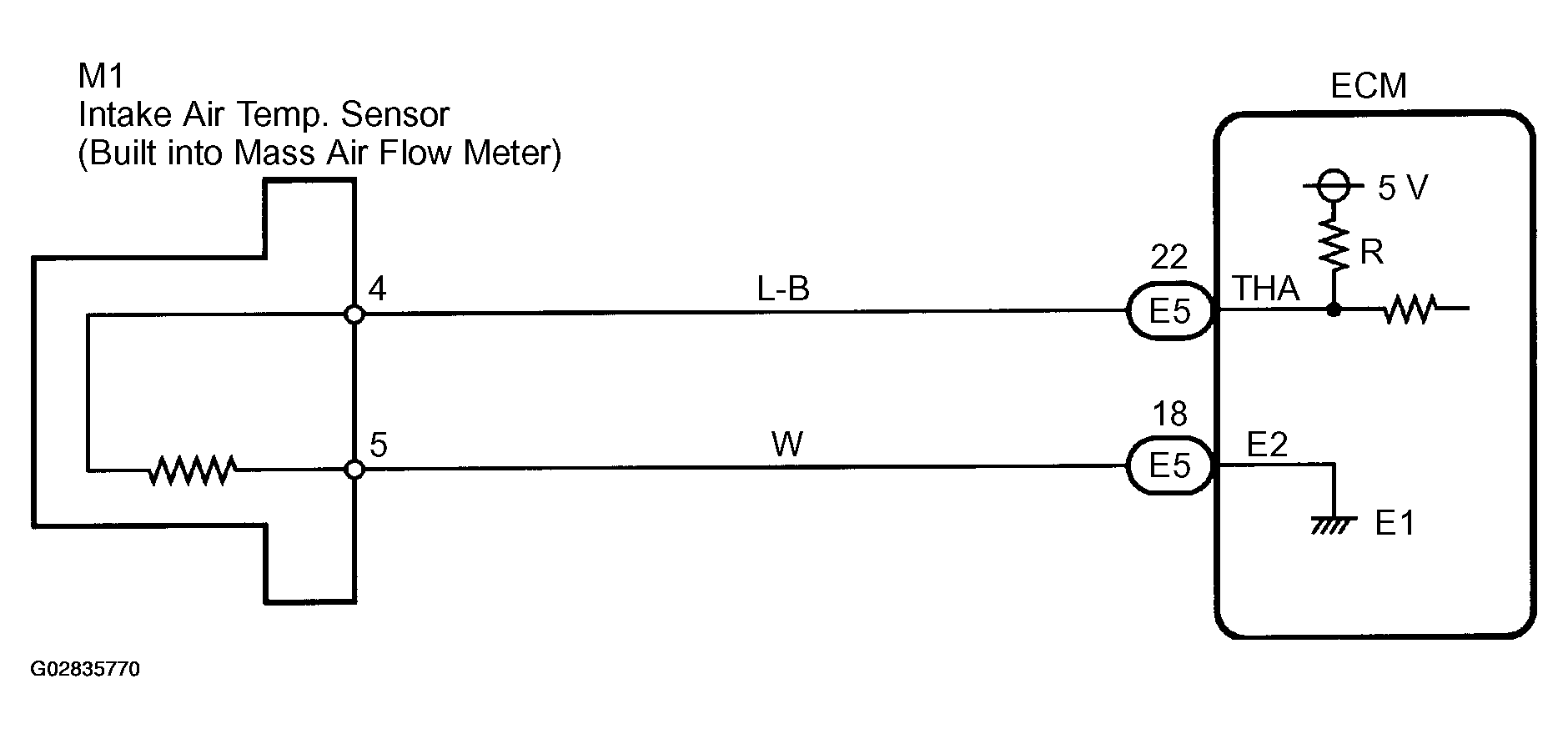

DTC P0110: Intake Air Temperature Circuit: Wiring Diagram
Fig 1: Identifying Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
