Problem Symptoms Table

WARNING: This page is about a different car, the 2003 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

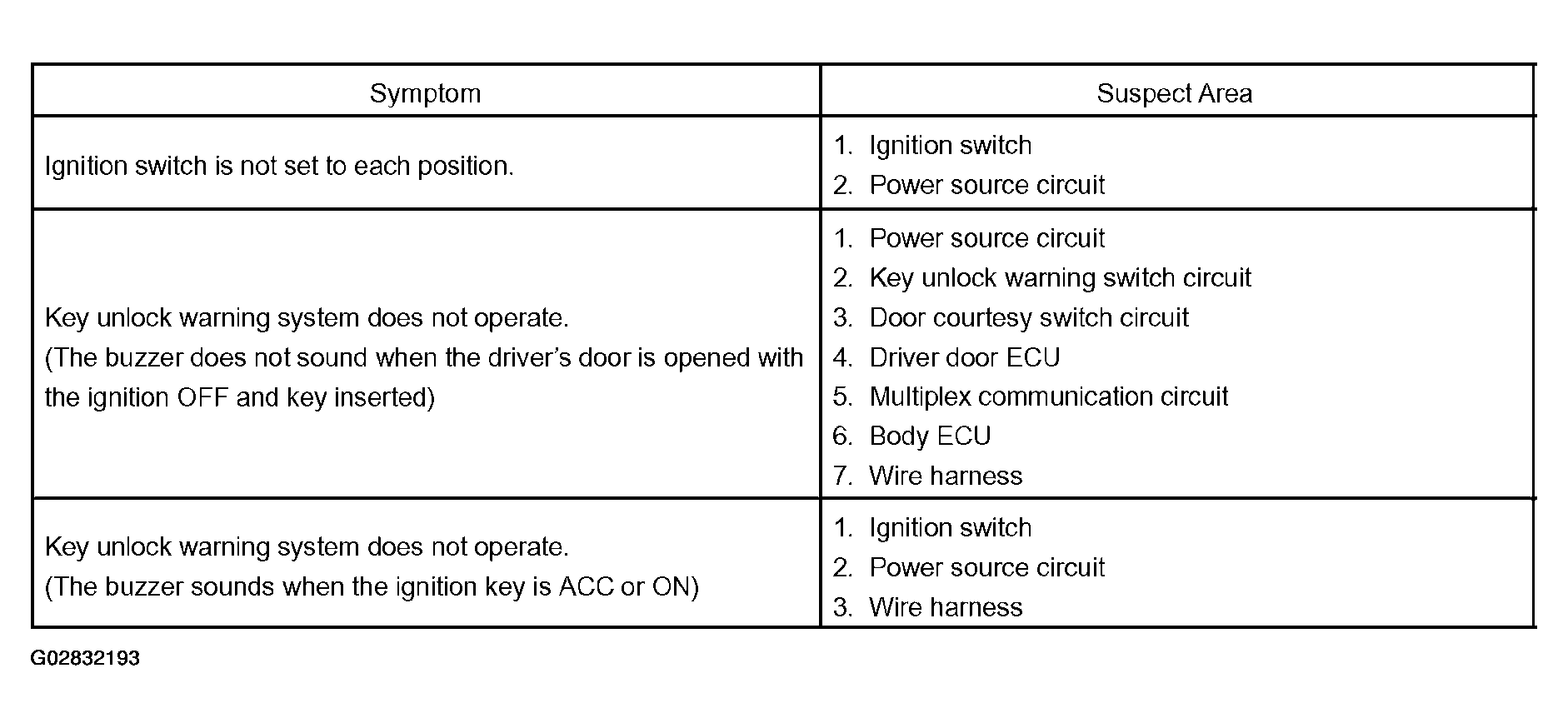

Fig 1: Ignition Switch & Key Unlock Warning Switch Problem Symptoms Chart

G02832193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

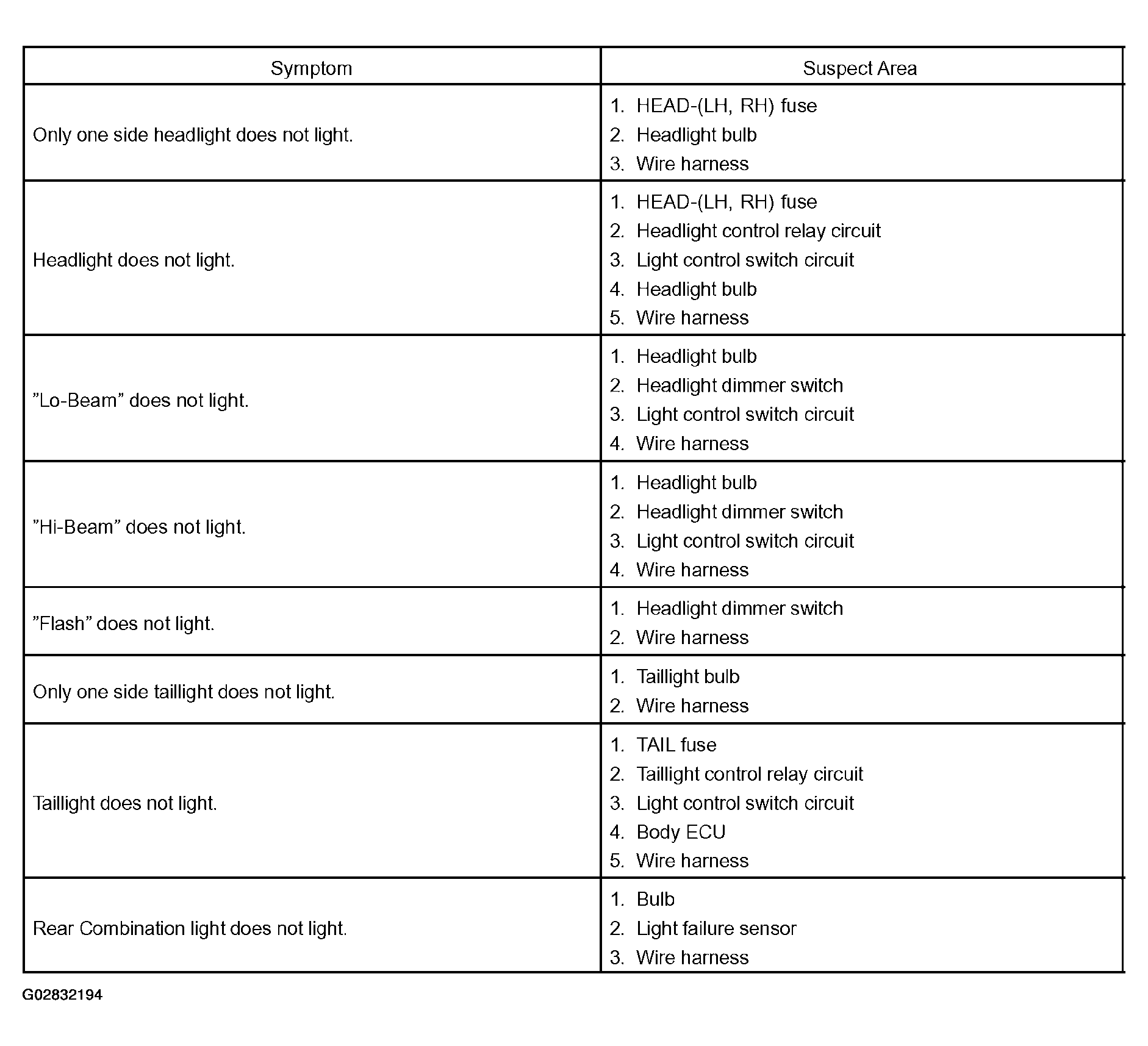

Fig 2: Headlight & Taillight System (USA) Problem Symptoms Chart

G02832194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

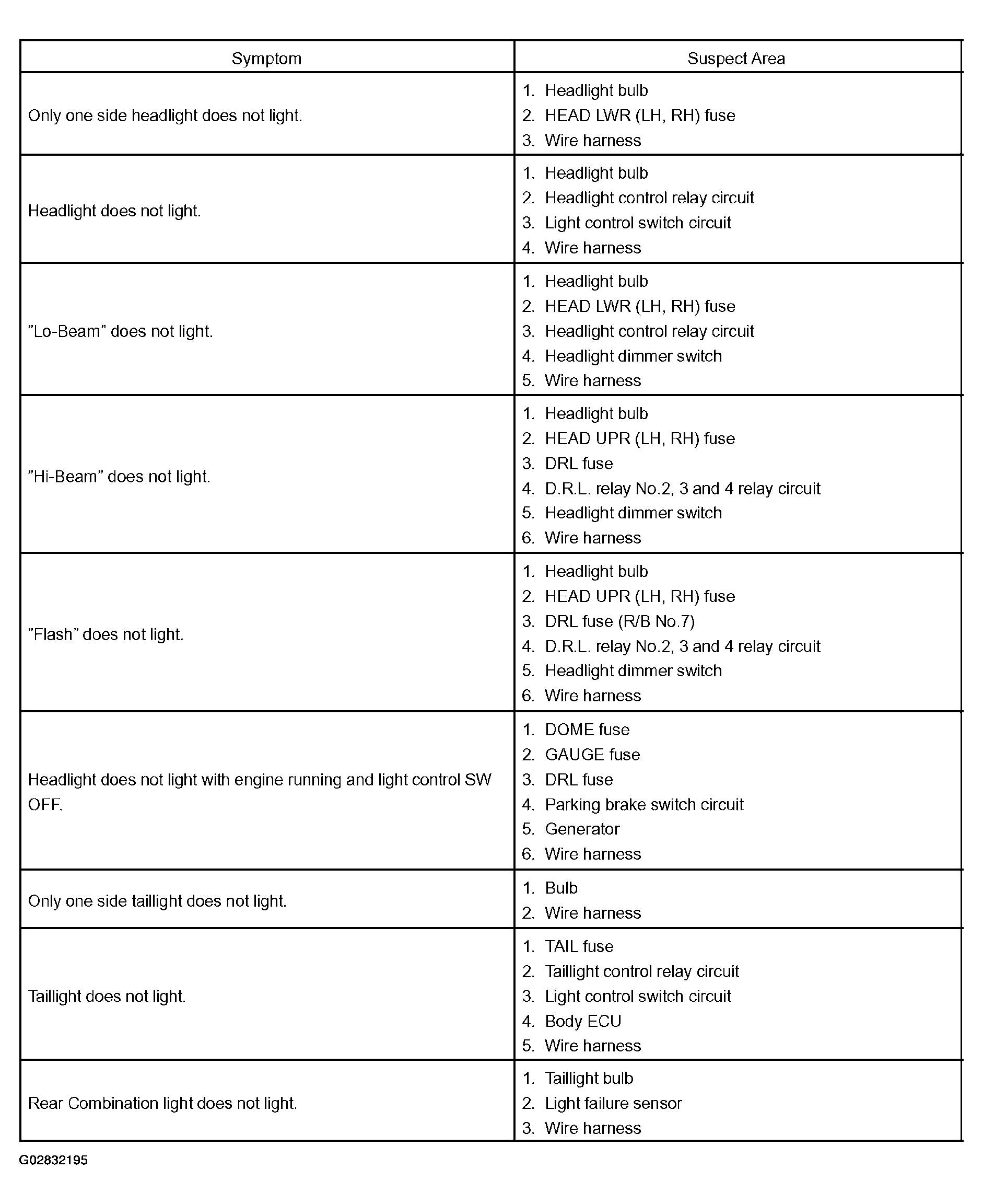

Fig 3: Headlight & Taillight System (Canada) Problem Symptoms Chart

G02832195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Auto Turn Off System Problem Symptoms Chart

G02832196

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Interior Light System Problem Symptoms Chart

G02832197

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

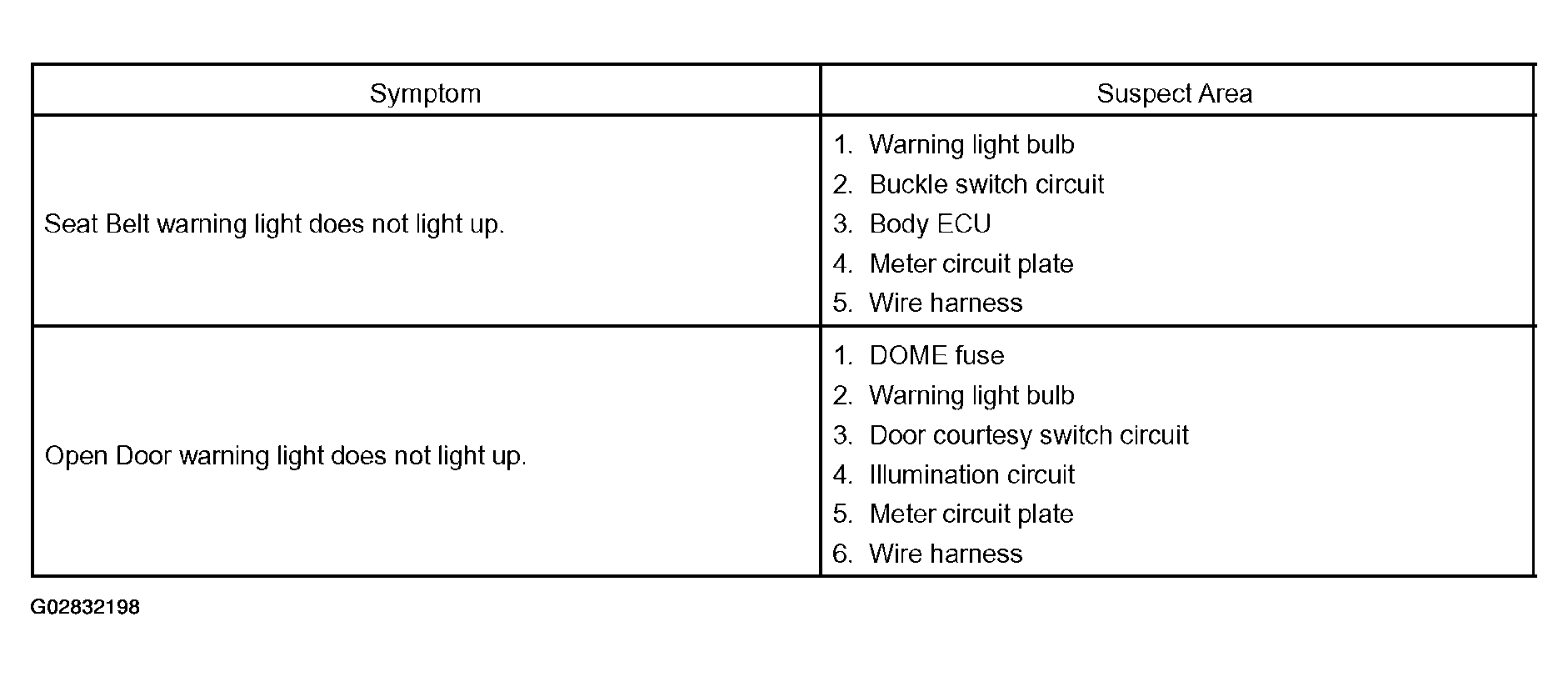

Fig 6: Combination Meter Problem Symptoms Chart

G02832198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

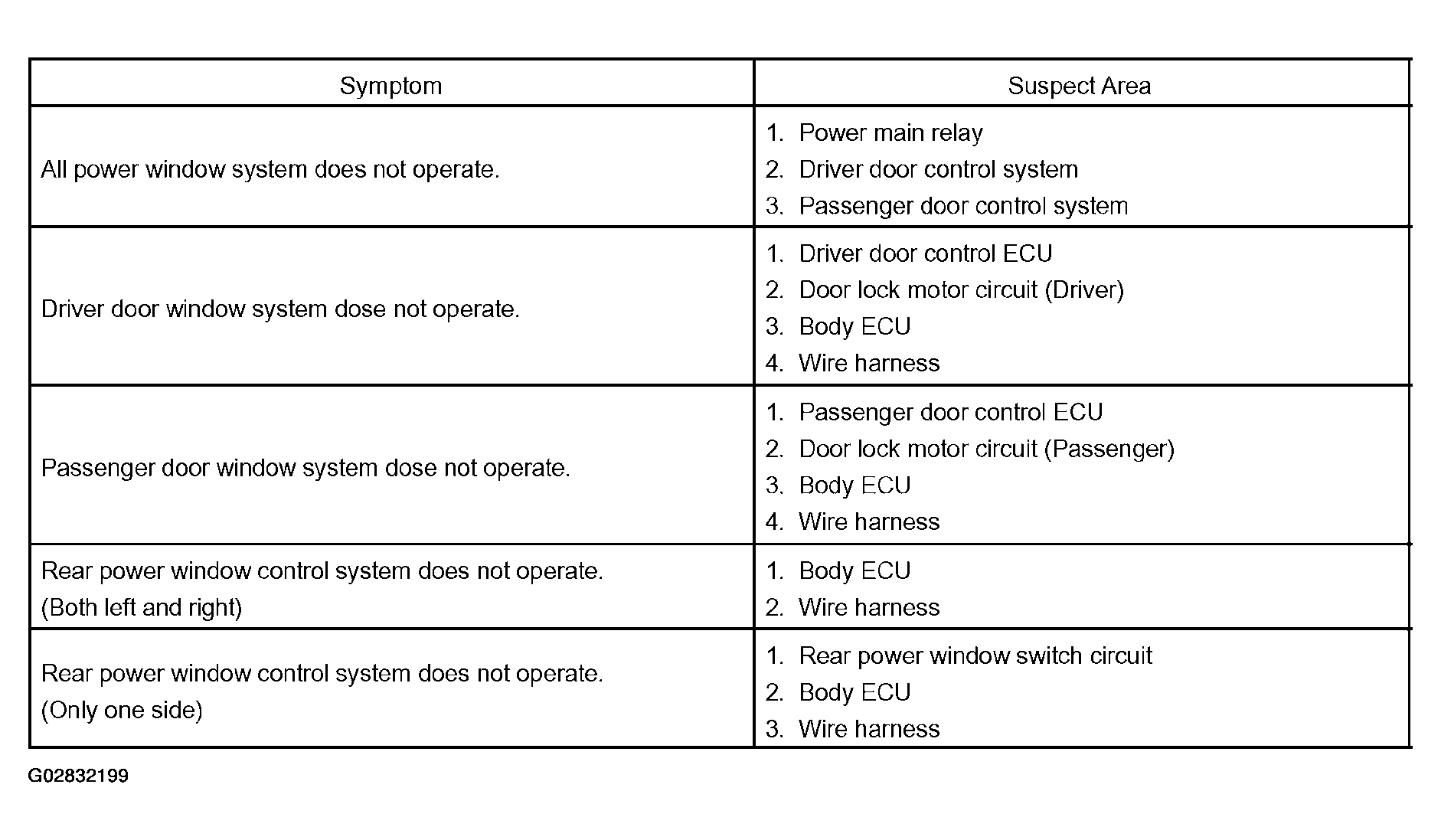

Fig 7: Power Window Control System Problem Symptoms Chart

G02832199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

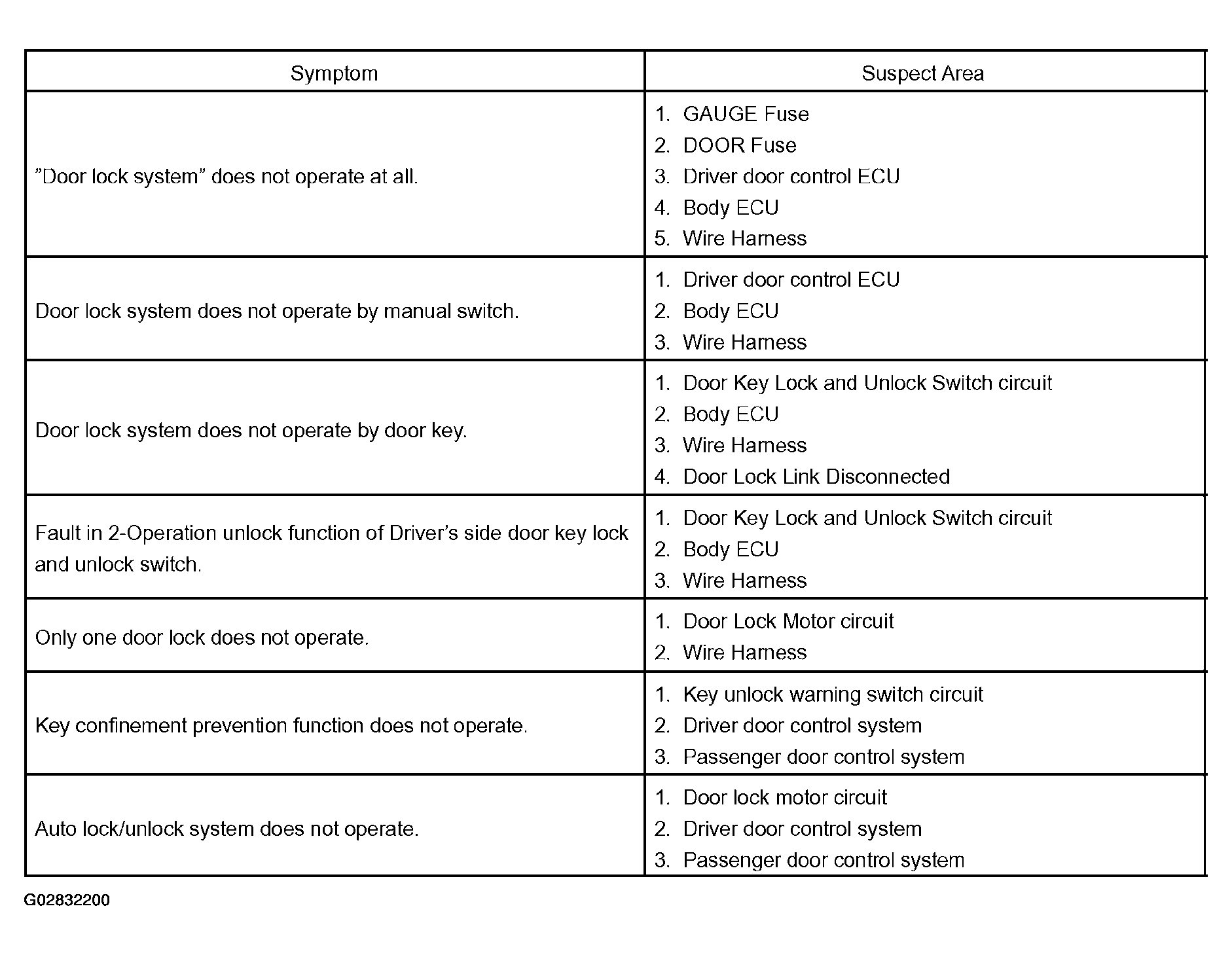

Fig 8: Power Door Lock Control System Problem Symptoms Chart

G02832200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Luggage Compartment Door Opener System Problem Symptoms Chart

G02832201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

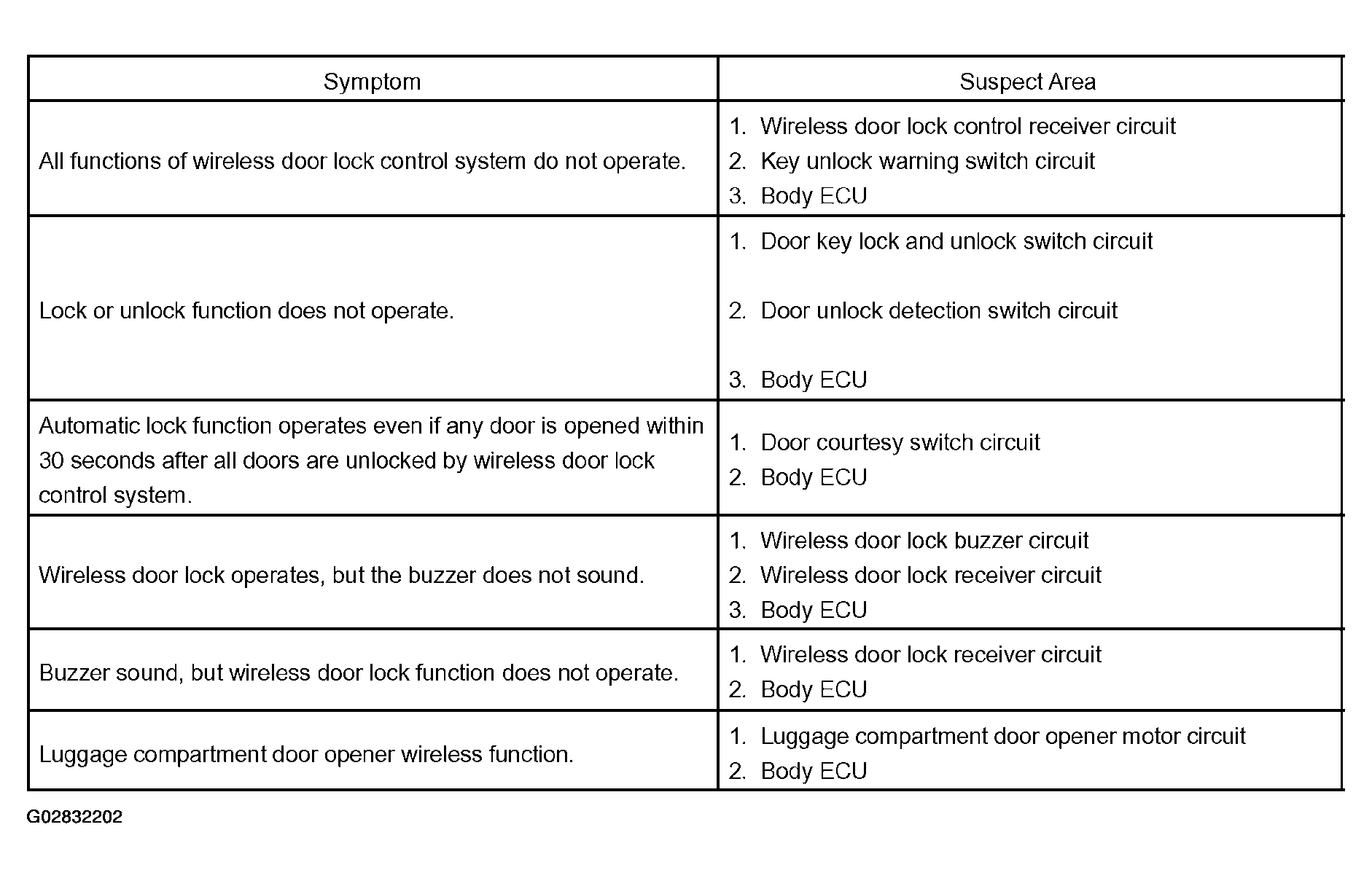

Fig 10: Wireless Door Lock Control System Problem Symptoms Chart

G02832202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

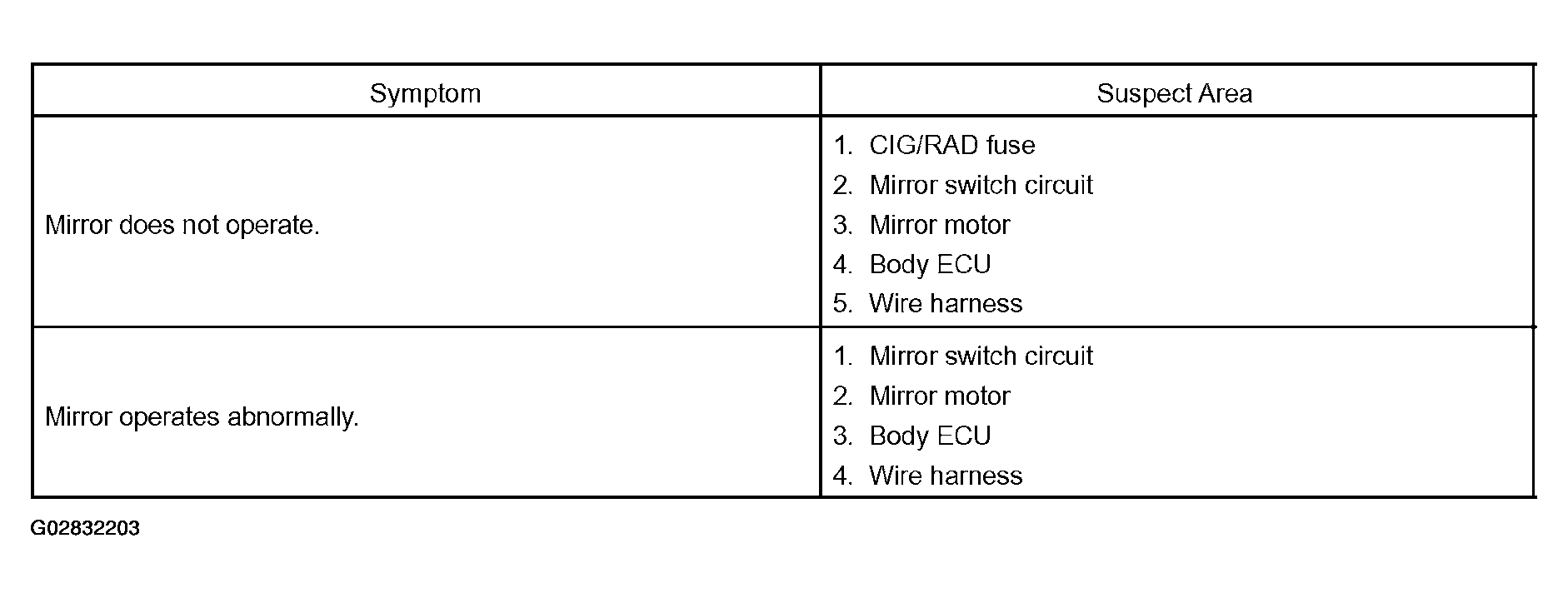

Fig 11: Power Mirror Control System Problem Symptoms Chart

G02832203

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

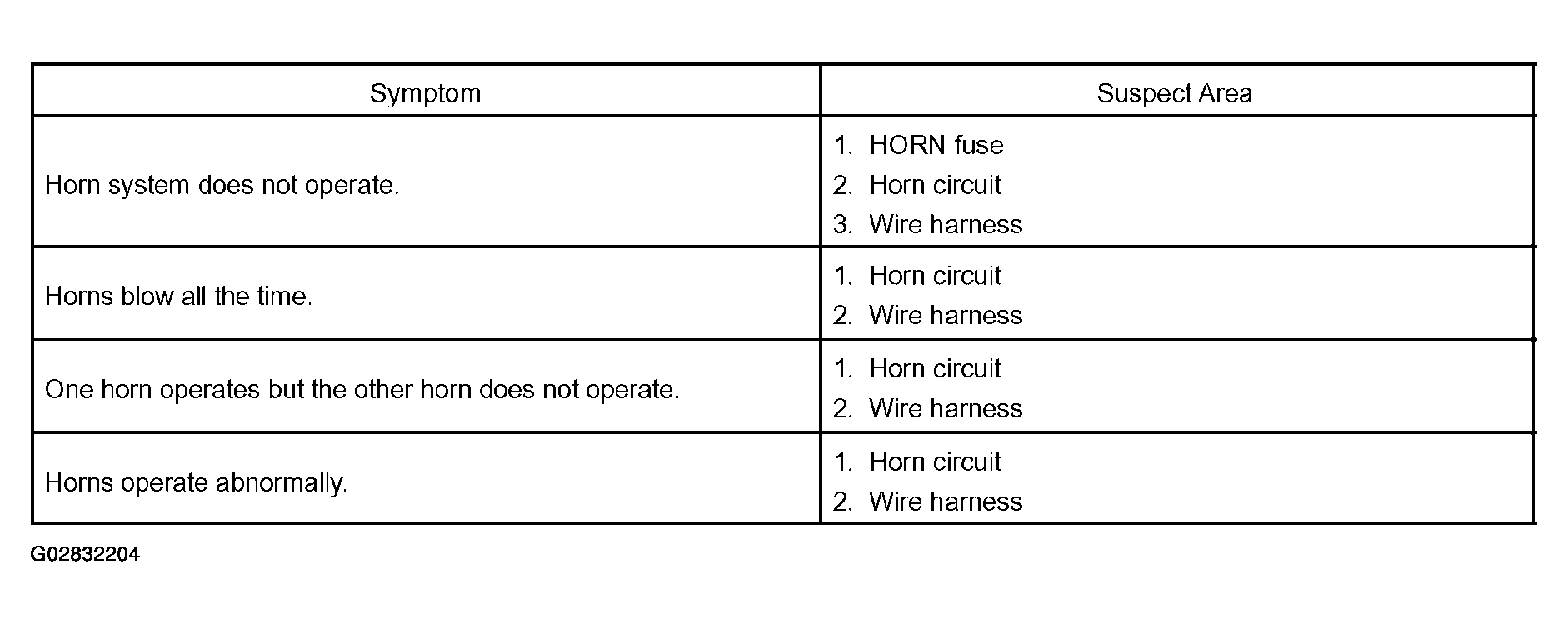

Fig 12: Horn System Problem Symptom Chart

G02832204

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
