Tilt Steering Column: Components

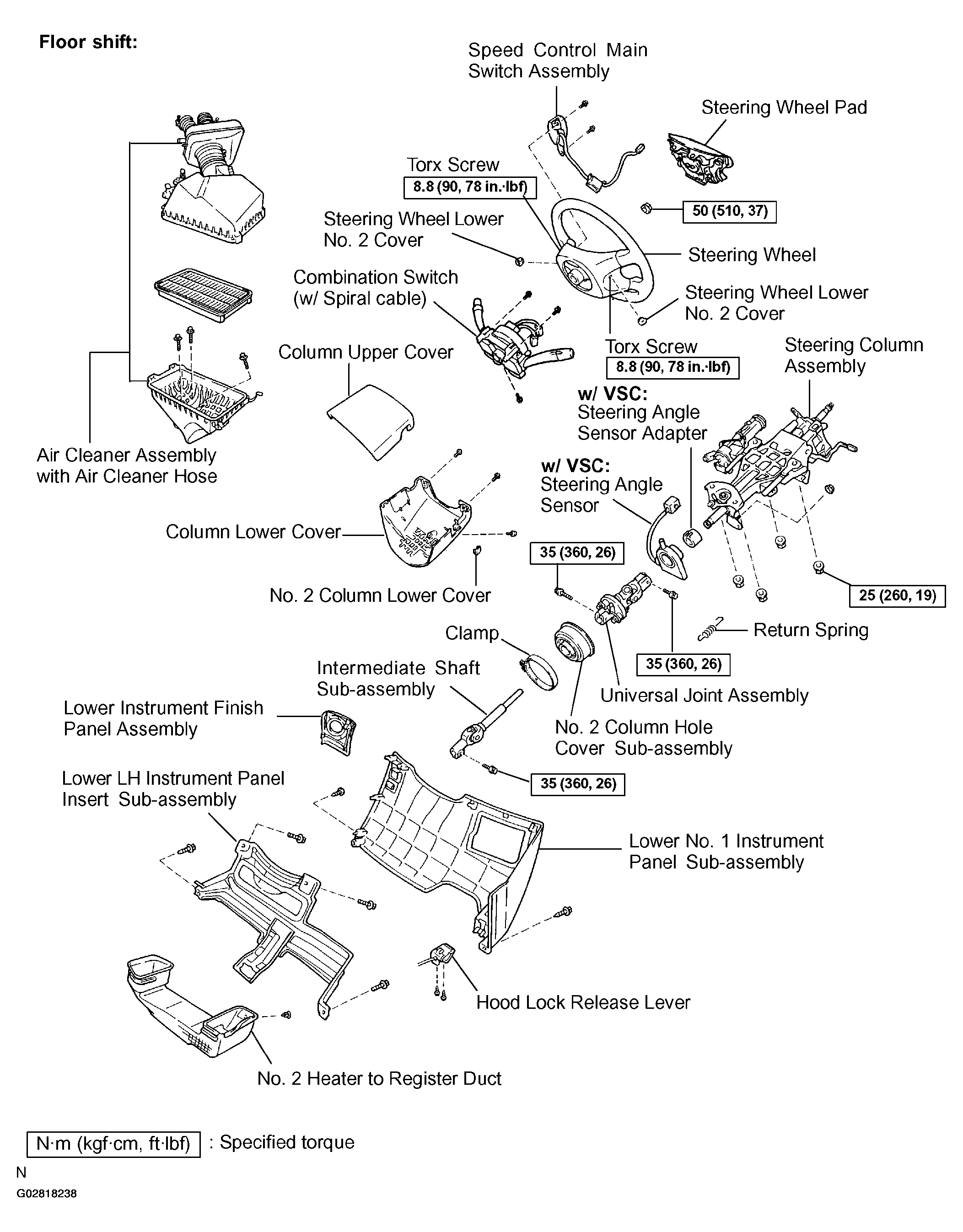

Fig 1: Exploded View Of Tilt Steering Column (Floor Shift)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

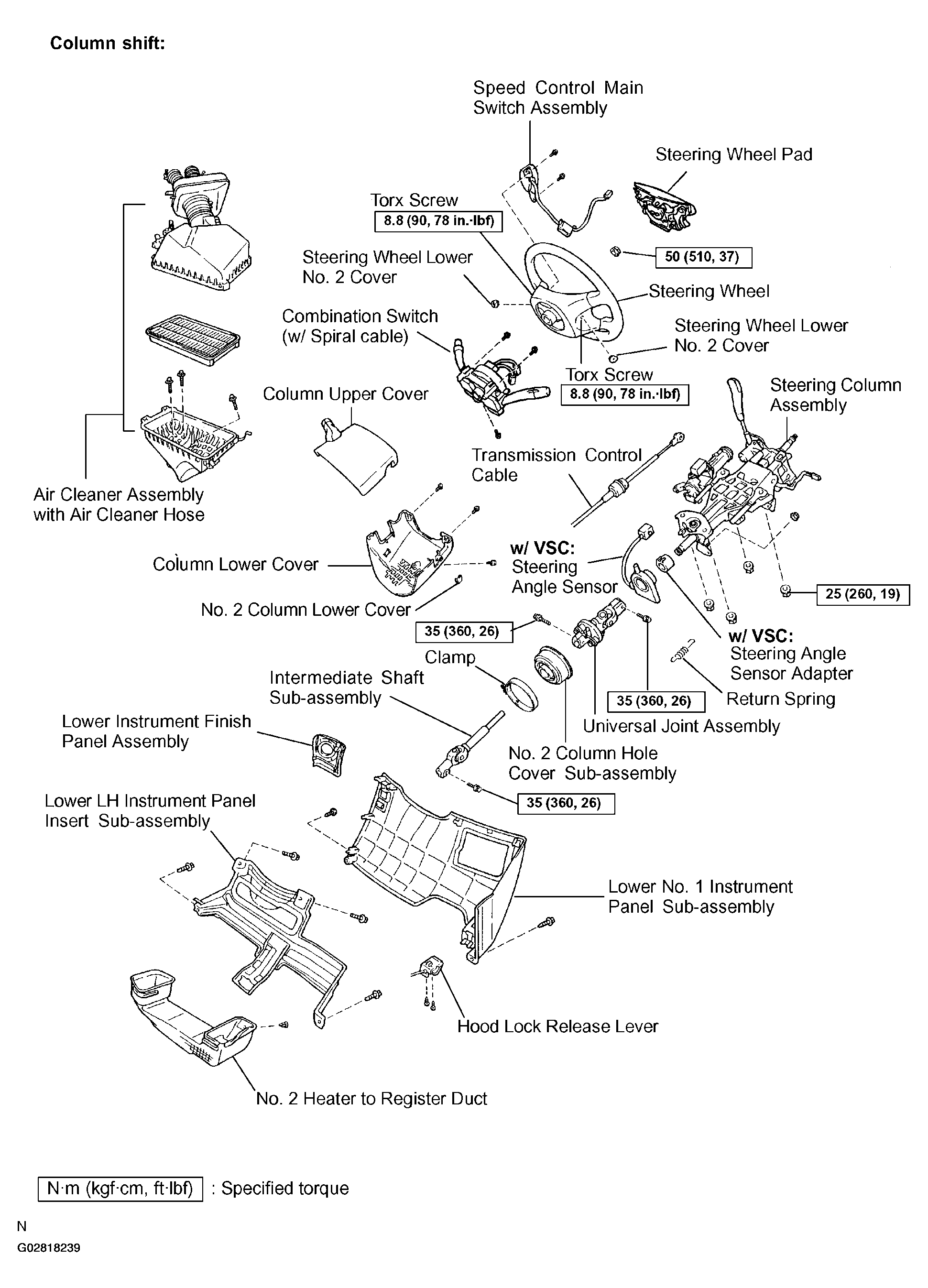

Fig 2: Exploded View Of Tilt Steering Column (Column Shift; 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

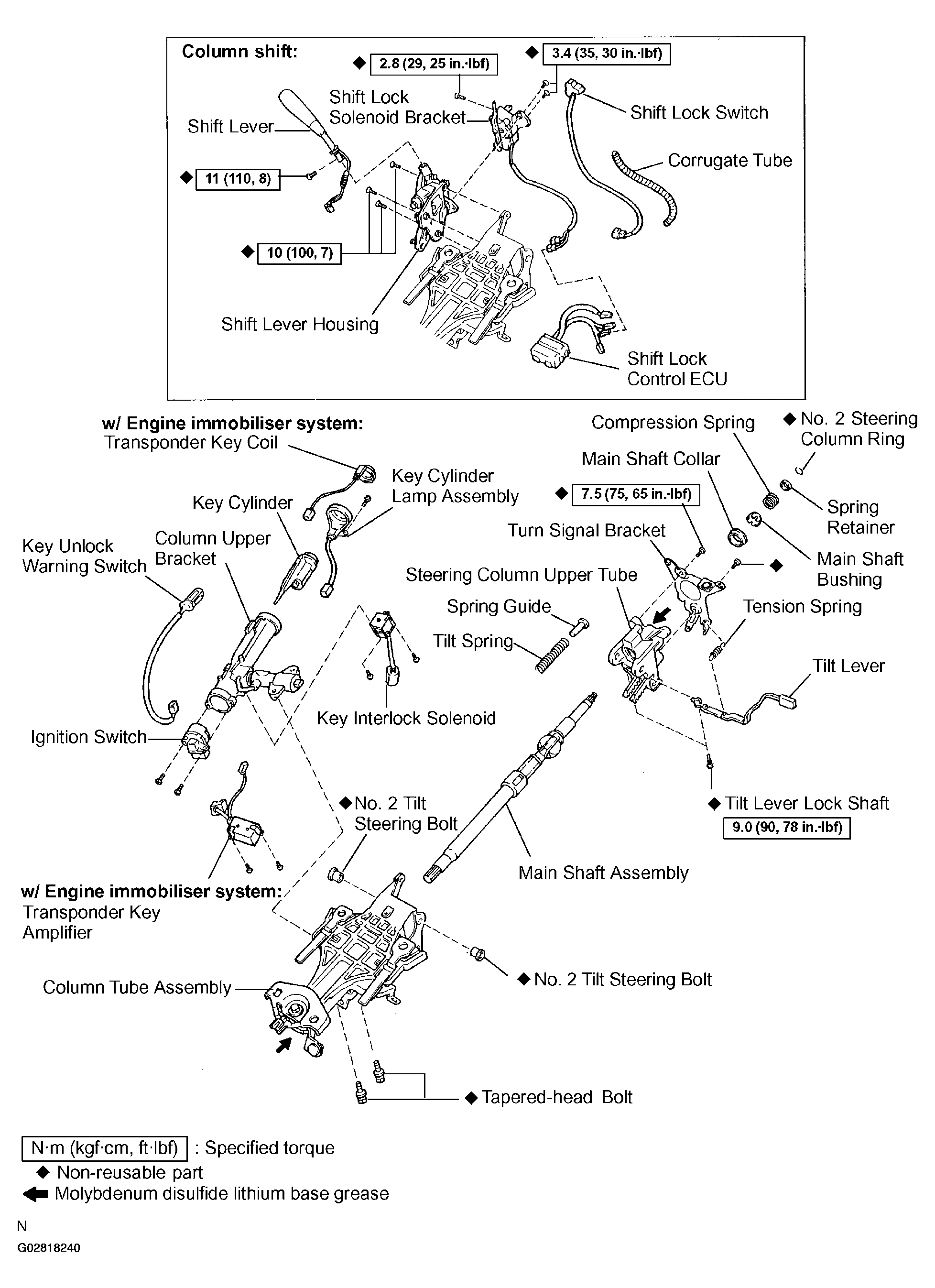

Fig 3: Exploded View Of Tilt Steering Column (Column Shift; 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
