Diagnostic Trouble Code Chart

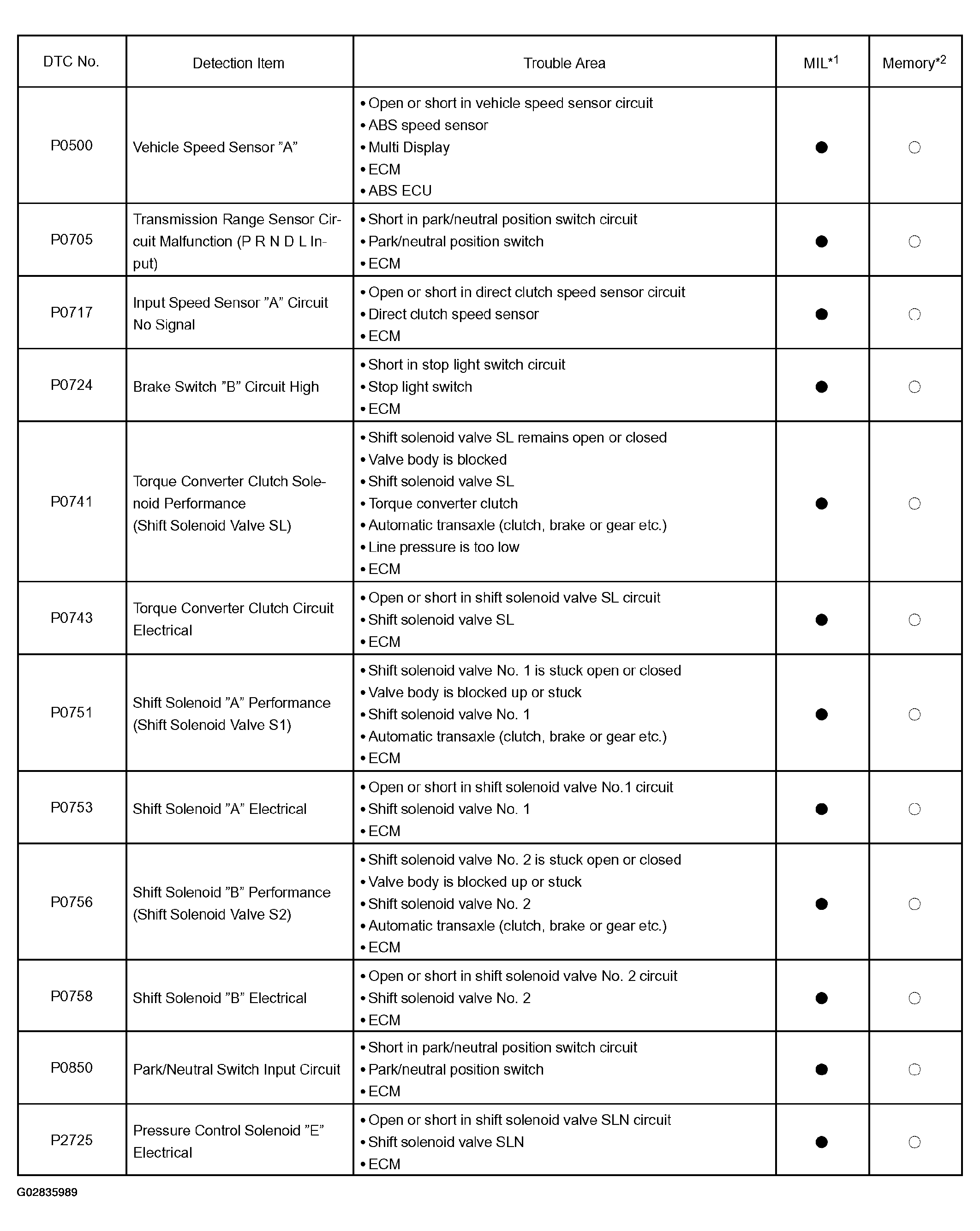

If a DTC is displayed during the DTC check, check the part listed for that code in the table below and proceed to the page given.
HINT:
- *1: "Black Circle"... MIL (Malfunction Indicator Lamp) lights up.
- *2: "Circle"... mark means that the ECM memorizes a DTC if the ECM detects the DTC detection condition.
- These DTCs may be output when the clutch, brake and gear components etc. inside the automatic transaxle are damaged.
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0500 | Vehicle Speed Sensor "A" |
| DTC P0705, P0850 | Transmission Range Sensor Circuit Malfunction (PRNDL Input) & Park/Neutral Switch Input Circuit |
| DTC P0717 | Input Speed Sensor "A" Circuit No Signal |
| DTC P0724 | Brake Switch "B" Circuit High |
| DTC P0741 | Torque Converter Clutch Solenoid Performance (Shift Solenoid Valve SL) |
| DTC P0743 | Torque Converter Clutch Circuit Electrical |
| DTC P0751, P0756 | Shift Solenoid "A & B" Performance (Shift Solenoid Valve S1/S2) |
| DTC P0753, P0758 | Shift Solenoid "A & B" Electrical |
| DTC P2725 | Pressure Control Solenoid "E" Electrical |
