Automatic Transaxle Unit: Components

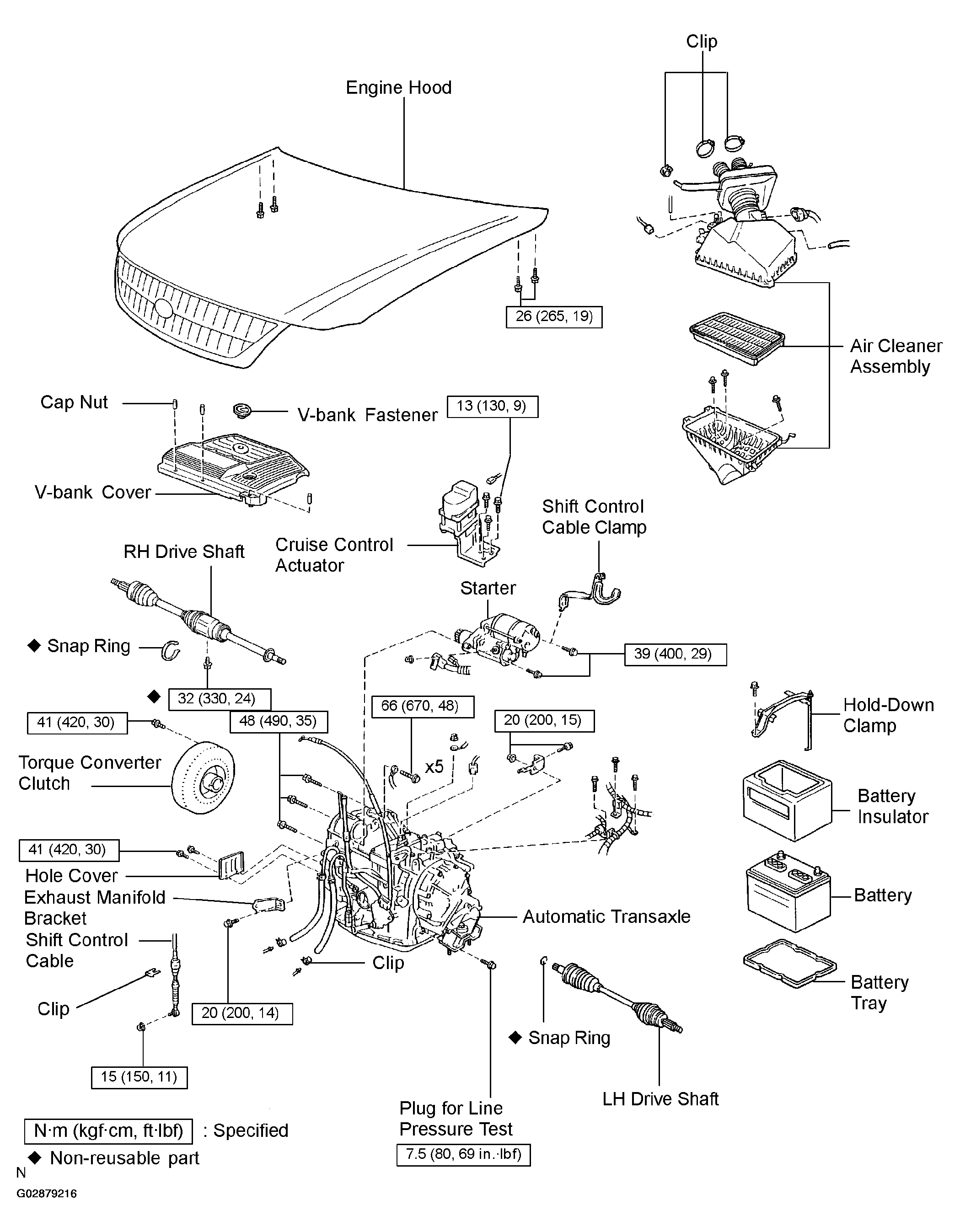

Fig 1: Identifying Automatic Transaxle Unit Components (1 Of 2)
G02879216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

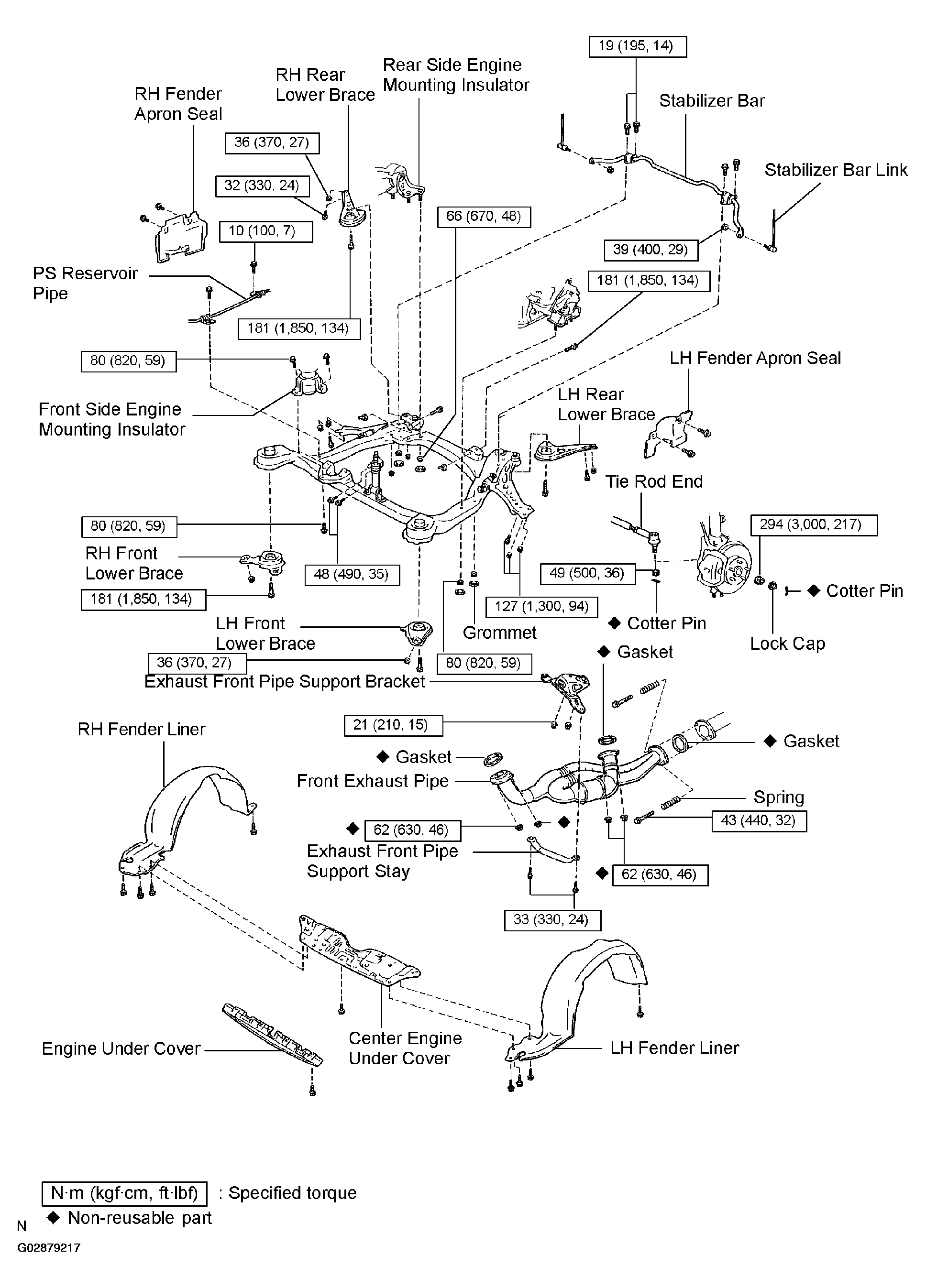

Fig 2: Identifying Automatic Transaxle Unit Components (2 Of 2)
G02879217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
