Floor Shift Assembly: Removal

  1. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY (see  REMOVAL  )
  2. REMOVE FRONT ASH RECEPTACLE ASSEMBLY

    (see  REMOVAL  )

  3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (see  REMOVAL  )
  4. REMOVE CONSOLE BOX PLATE (see  REMOVAL  )
  5. REMOVE REAR CONSOLE BOX ASSEMBLY

    (see  REMOVAL  )

  6. REMOVE LH AND RH SCUFF PLATES

    (see  REMOVAL  )

  7. REMOVE LH AND RH COWL SIDE TRIMS

    (see  REMOVAL  )

  8. REMOVE LOWER NO.4 INSTRUMENT PANEL SUB-ASSEMBLY (see  REMOVAL  )
  9. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (see  REMOVAL  )
  10. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY (see  REMOVAL  )
  11. Taiwan Spec.:

    REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (see  REMOVAL  )

  12. Taiwan Spec.:

    REMOVE RADIO TUNER OPENING COVERS WITH HEATER CONSOLE & ACCESSORY ASSEMBLY (see  REMOVAL  )

  13. Except Taiwan spec.:

    REMOVE RADIO ASSEMBLY WITH HEATER CONSOLE & ACCESSORY ASSEMBLY

    (see  REMOVAL  )

  14. REMOVE FRONT CONSOLE BOX ASSEMBLY

    (see  REMOVAL  )

  15. w/ Rear Heater:

    REMOVE REAR CONSOLE NO.1 BOX ASSEMBLY CONSOLE BOX DUCT

    Remove the clip and duct.

  16. REMOVE FLOOR SHIFT LEVER ASSEMBLY
    1. Remove the clip and disconnect the shift cable from the floor shift assembly.
    2. Disconnect the wire harness from the wire harness clamp.

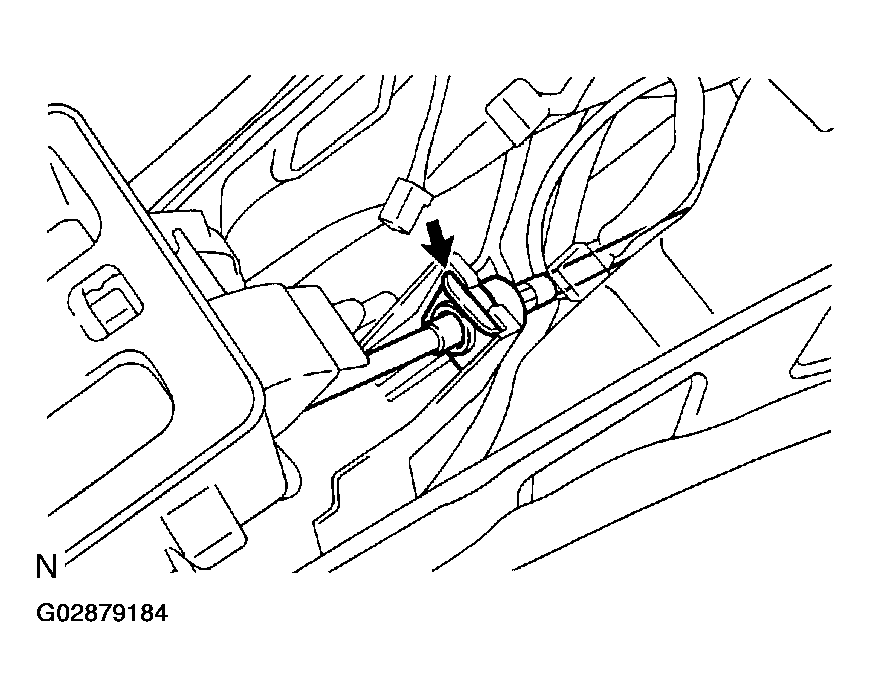

      Fig 1: Removing Floor Shift Lever Assembly
      G02879184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts from the brace.
    4. Remove the 4 bolts and floor shift assembly.

      Torque: 12 N.m (120kgf.cm, 9 ft.lbf)

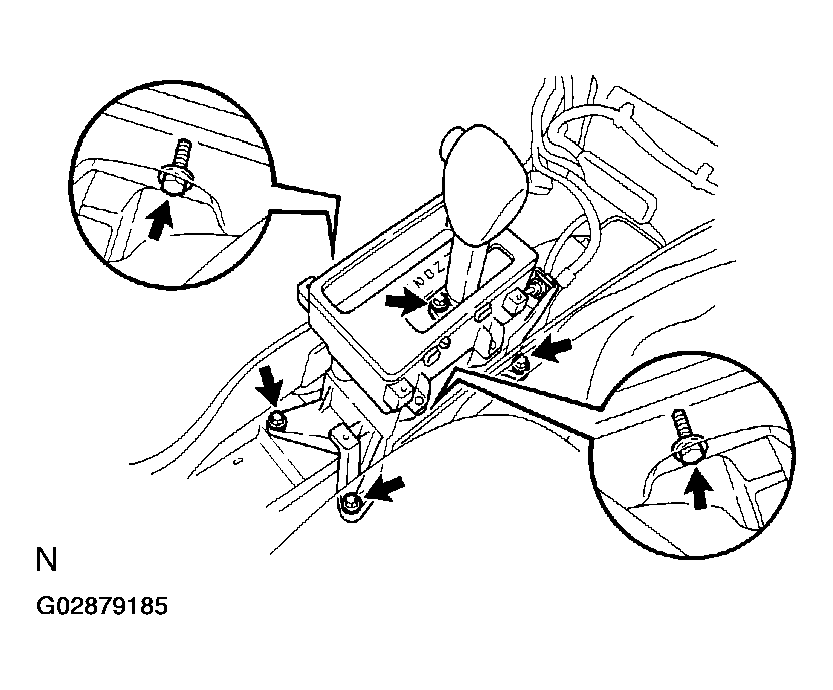

    Fig 2: Removing Floor Shift Assembly
    G02879185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
