Shift Lock System (Column Shift): Inspection

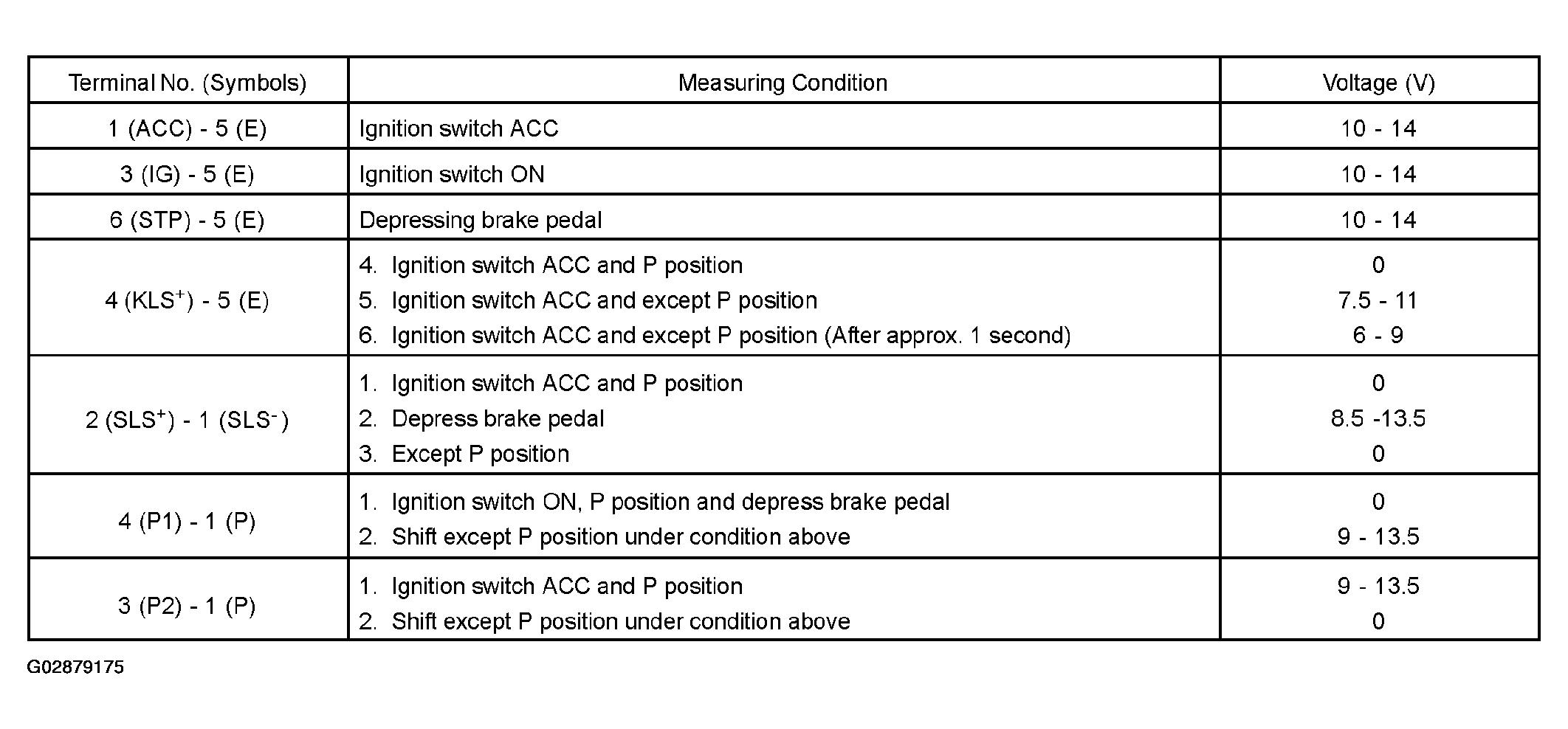

Using a voltmeter, measure the voltage at each terminal.

HINT:

Do not disconnect the shift lock control unit assembly connector.

Fig 1: Checking Shift Lock Control Unit Assembly (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Checking Shift Lock Control Unit Assembly (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure resistance between terminals.

   Standard resistance: 29 - 35 Ω

   If resistance value is not as specified, replace the solenoid.

   Fig 3: Checking Shift Lock Solenoid

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Supply battery positive voltage between terminals. Check that an operation noise can be heard from the solenoid.

   If the solenoid does not operate, replace the solenoid.

   Fig 4: Checking Voltage Between Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure the resistance between terminals.

   Standard resistance: 12.5 - 16.5 Ω

   If resistance value is not as specified, replace the solenoid.

   Fig 5: Checking Key Interlock Solenoid

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Supply battery positive voltage between terminals.

   If the solenoid does not operate, replace the solenoid.

   Fig 6: Checking Voltage Between Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

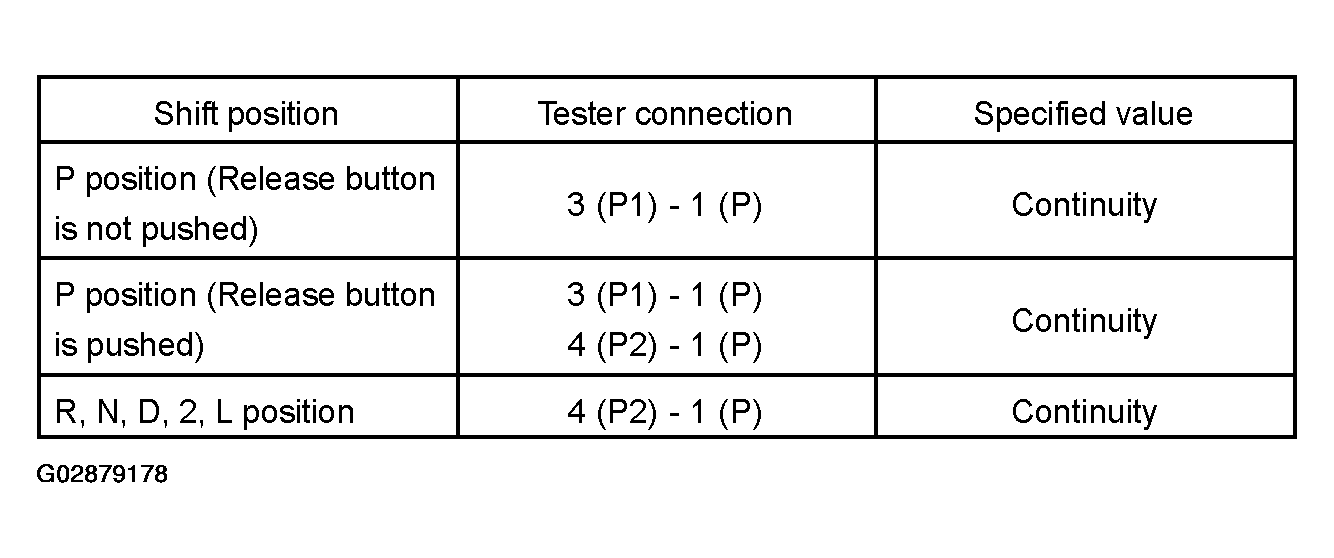

Inspect that continuity between at each terminal.

Fig 7: Checking Shift Lock Control Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not specified, replace the switch.

Fig 8: Replacing Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
